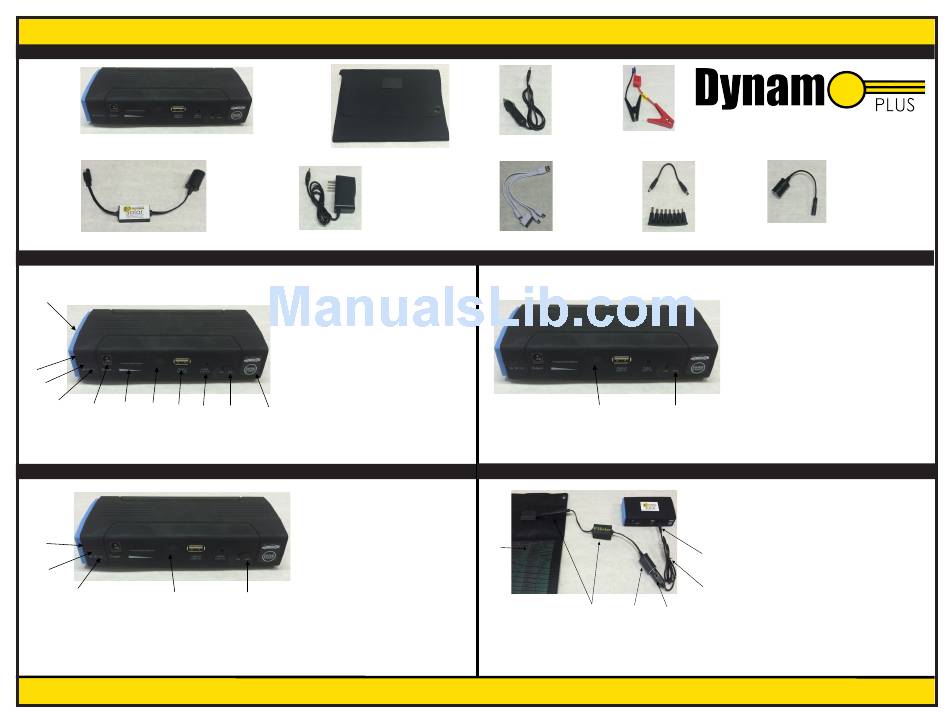

P3Solar Dynamo PLUS Quick Start Manual

What's in the Pack. . .
12V16Ah Battery Pack
DC Convertor
Battery Pack Functions
1
2
3
4
5
6
7
8
How can I switch between 12V, 16V & 19V output voltages?
19
16
12
KS
Note: Different devices have different input voltage requirements for charging. You should
check your devices power adapter/wall chargers output voltage for the proper voltage
setting on the portable power pack.
Innovative Satellite Solutions, LLC • 18012 Mill Creek Drive, Derwood MD 20855 • sales@iss-usa.net • www.iss-usa.net • tel +1 (240) 720-1384
Dynamo
25W Folding Solar Panel
AC/100V-200V Wall Charger
1. LED illumination light
2. 19V voltage output indicator light
3. 16V voltage output indicator light
4. 12V voltage output indicator light
5. 12V/16V/19V output
6. Battery status indicator light
7. Key switch
8. USB 5V output
9. Input 12V/1A
10. Master On/Off switch
10
9 11
11. 200A vehicle start outlet
Answer:
Turn the master switch (MS) to
"ON" position. Press key switch
(KS) once to illuminate the volt-
age indicator lights. Press KS again
to toggle between the 12V, 16V,
and 19V setting until you have
reached the desired voltage set-
MS
ting for your particular device.
Quick Start Guide
PLUS
MCLA Adapter
USB to 4-in-1 Adapter
How can the LED emergency lighting be turned on?
How do I charge the battery from the folding solar panel?
SP
Note: Note: The Battery Status indicator lights should
begin flashing when charging. The Battery does not
have to be powered on when charging.
Battery Cables
8 Piece Adapter Set
Answer:
Turn the master switch, MS, to "ON"
position. Press key switch (KS) for 3
seconds to start the LED flashlight func-
tion. Press KS again to turn flashlight to
flashing. Press KS a third time for SOS
distress light. Press KS one more time to
turn off the light.
KS MS
Answer:
Step 1: Unfold the folding solar panel (SP)
outside and lay on the ground flat or angled
facing the sun. It maybe beneficial to stake
or tie down the solar panel during operation
to prevent it from blowing away.
BA
Step 2: Plug the DC Converter (DCC) into the
SP with the SAE automotive connector.
Step 3: Plug the male cigarette lighter adapt-
VC
er (MCLA) end of the vehicle charger (VC)
FCLA
DCC
MCLA
into the female cigarette lighter adapter
(FCLA) on the other end of the DCC.
Step 4: Plug the barrel adapter (BA) end of
the VC into the input 12V/1A on the battery.
12V Vehicle Charger
Adapter (FCLA)
