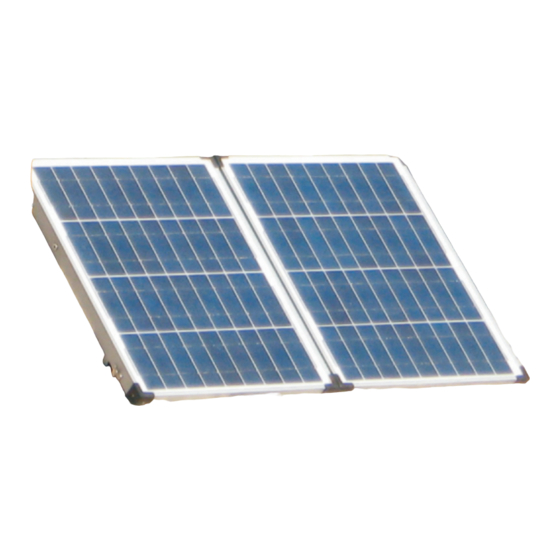

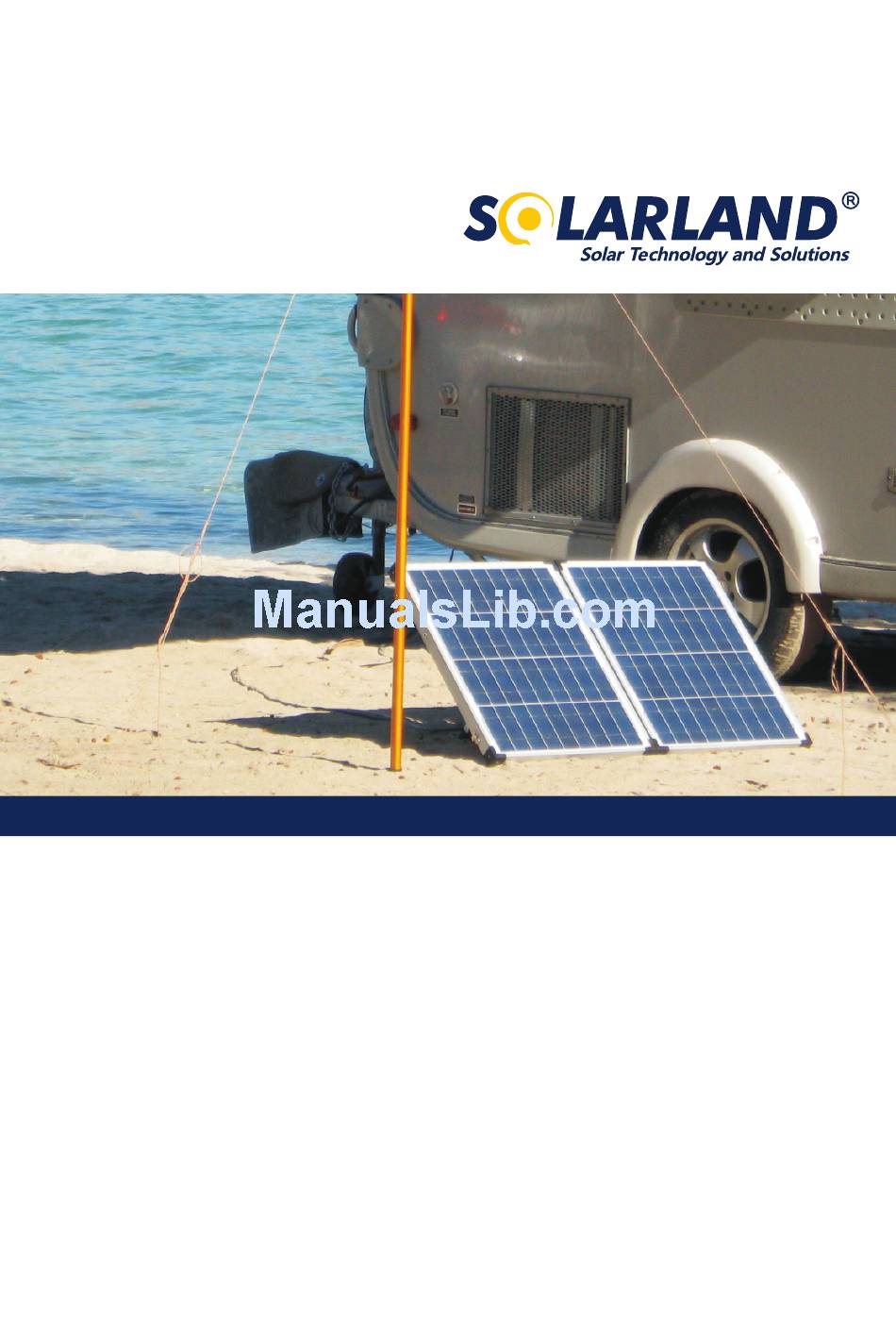

- Page 1 The Portable, Folding, Solar Battery Charging System USER MANUAL Model: SLP090F-12S and SLP130F-12S...
-
Page 2: Table Of Contents
Dear Customer, Thank you for purchasing this Solarland product. Please read the instructions carefully and thoroughly before using. Index 1. Description of Functions Page 1 2. Features Page 1 3. Components Page 3 4. Specifications Page 4 5. Installation & Connection Page 5 6. -
Page 3: Description Of Functions
-Automotive -Aircraft -ATV and Snowmobile -Motorcycle -Disaster Preparedness The Solarland Solar Battery Charging System is intended for use with almost any 12V battery system. 2. Features The Carrying Case The Carrying Case is manufactured from high grade aluminum with the inside finished with durable, padded foam providing excellent protection against damage to the solar panels during transportation and storage. - Page 4 Integrated Smart Solar Charge Controller with LED Indication The Solar Charge Controller is mounted behind the solar panels. The Controller ensures that the battery charging is done safely and correctly and without damage to the Solar System or the Battery Bank. The Charge Controller employs a three stage PWM type charging profile for optimal battery charging.
-
Page 5: Components
3. Components Description Number SLP090F-12S SLP130F-12S Folding 2 x 45w multi-crystalline Folding 2 x 65w multi-crystalline 1set silicon solar panels silicon solar panels Automatic smart solar change controller 8pcs Rubber Corner Protector 2pcs Heave duty anodized aluminium folding support leg... -
Page 6: Specifications
4. Specifications Solar Panel 90W Multi-Crystalline 130W Multi-Crystalline Type silicon solar cell silicon solar cell Rated Power (Pm) 90W (2 x 45W panels in series) 130W (2 x 65W panels in series) Operating Voltage (Vmp) 17.2V 17.2V 5.23A 7.56A Operating Current (Imp) Open Circuit Voltage (Voc) 21.6V 21.6V... -
Page 7: Installation & Connection
9:00am and 3:00pm. During the summer months in North America, the number of sun hours may be much longer permitting more energy production. A 25’ extension cord accessory is available for purchase from Solarland if needed. STEP 2: Set-up (No Tools Required) A. - Page 8 STEP 4: Connect to the Battery or Battery Bank A. Be sure the charge controller is set to the correct battery type. Do this by selecting either Lead-acid’ or ‘Gel’ using the switch on the back. For acid flooded wet cell batteries use the ‘...
-
Page 9: Display Functions In Normal Operation
6. Display Functions in Normal Operation The Charge Controller is equipped with 2 LED’s to indicate the battery State-of-Charge it is currently in. -Yellow = System charging. Current is flowing to the Yellow LED battery or battery bank. Peak battery voltage may be observed between 13.9 and 14.4 indicating the battery Green LED is fully charged (temperature dependent).This condition... -
Page 10: Trouble-Shooting Guide
-Battery has failed. This can happen to old batteries and even new ones if not properly cared for. Confirm battery condition with a 100 Amp ‘Battery Load Tester’ obtained at any auto parts store or ask your Solarland dealer to test the battery for you. Replace the battery if necessary. -
Page 11: Safety Recommendations
8. Safety Recommendations 1. Read & completely understand this instruction manual before use. Always keep this manual in a convenient location. 2. To reduce the risk of injury, charge only 12V lead acid batteries, AGM & GEL batteries. Other types of batteries may be subject to bursting which can lead to personal injury & property damage. -
Page 12: Frequently Asked Questions
9. Frequently Asked Questions How does the solar panel work? The solar panel converts sunlight energy into DC electric power & can be used to charge a rechargeable battery. How many solar panels will it take to run my appliances? As a general rule the user should establish the amps required to run the appliances &... -
Page 13: Typical Battery Connections
10. Typical Battery Connections CORRECT CORRECT Load Load CORRECT Load Chassis Ground Inverter/ Accessory Typical Series/Parallel Charger Loads RV Installation CORRECT Accessory Inverter/ Typical Series/Parallel Loads Charger RV Installation CORRECT... -
Page 14: Incorrect Battery Connections
The manufacturer shall not be liable if there has been service or repair carried out by any unauthorized person. Subject to change without notice Vertion:20111101 www.solarland.com... - Page 15 B11 Huayou Dong Rd., Huayou Industrial Area, National High-tech Industrial Area, Wuxi, 214028 Jiangsu, P.R.China Tel: +86 510 82261100 Fax: +86 510 85203812 www.solarland.com info@solarland.com Chicago Office: PO BOX 6128, Lindenhurst, IL 60046, USA Tel : 847-282-4796 Cell: 847-274-8736 Fax: 847-245-8649 E-mail: maitken@solarland.com...
