Summary of Contents for WiPath PDR3000

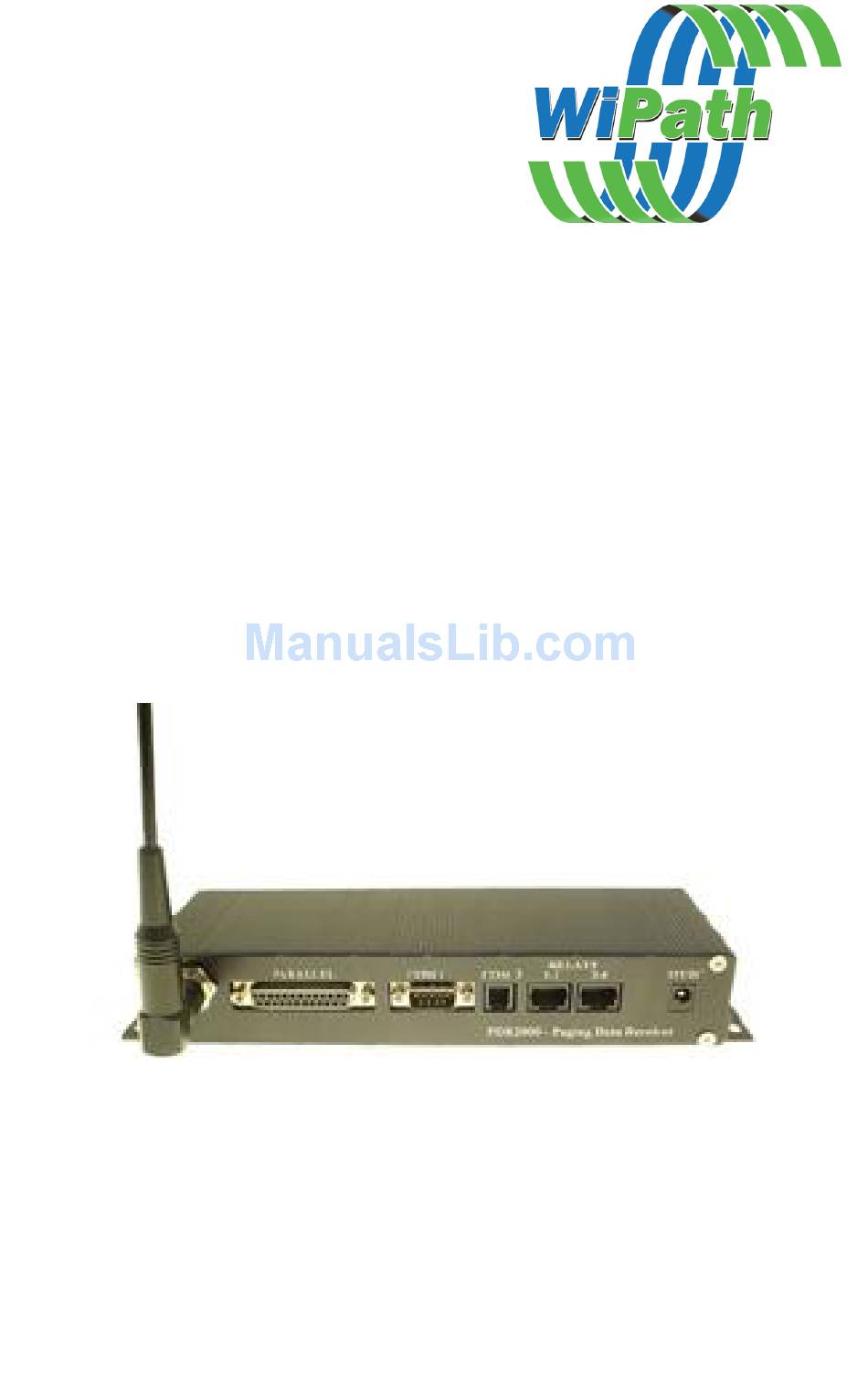

- Page 1 PDR3000 Paging Data Receiver User Manual www.wipath.com January 2009...
- Page 2 The PDR3000 has four relay control outputs internally or may be interfaced with the RCM3000 Relay Control Module for multiple relay control. Other options include an...
- Page 3 Specifications Protocols Available in Pocsag and Flex Outputs 1 parallel port, 2 serial ports (I/O), 4 Relays, 12 alarm inputs (Opt) Receiver Synthesized FM/FSK Frequencies 134-139, 148-174, 408-412, 450-470, 929-932 MHz Channel Spacing 25 KHz (12.5kHz optional) Data rate 512-2400 pocsag, 1600/2 -6400/4 Flex Freq.
- Page 4 Peripheral devices may be plugged into the various I/O ports according to the information above. If using with LogPage the PDR3000 will connect to the PC running LogPage using the same null modem serial cable used for programming. Programming the PDR3000 To program the PDR3000 you will require a null modem RS232 cable (DB9F-DB9F) and the PDT3P software.
- Page 5 Important notice – 2000 generation units – up to version 5.1 only 3000 generation units – version 6 onwards. 1. FTP (This is only to be done on instruction from WiPath) Open winflash_p Select your comport Place a 2.54mm jumper over JP1 Click on the “…”...
-
Page 6: Troubleshooting
WIPATH DISCLAIM ALL LIABLILITY FOR ANY USE OF THIS PRODUCT IN A WAY THAT MAY CAUSE ACCIDENTS, DAMAGE OR VIOLATE THE LAW. Compliance This device complies with part 15 of the FCC rules. Operation is subject to the following conditions.
