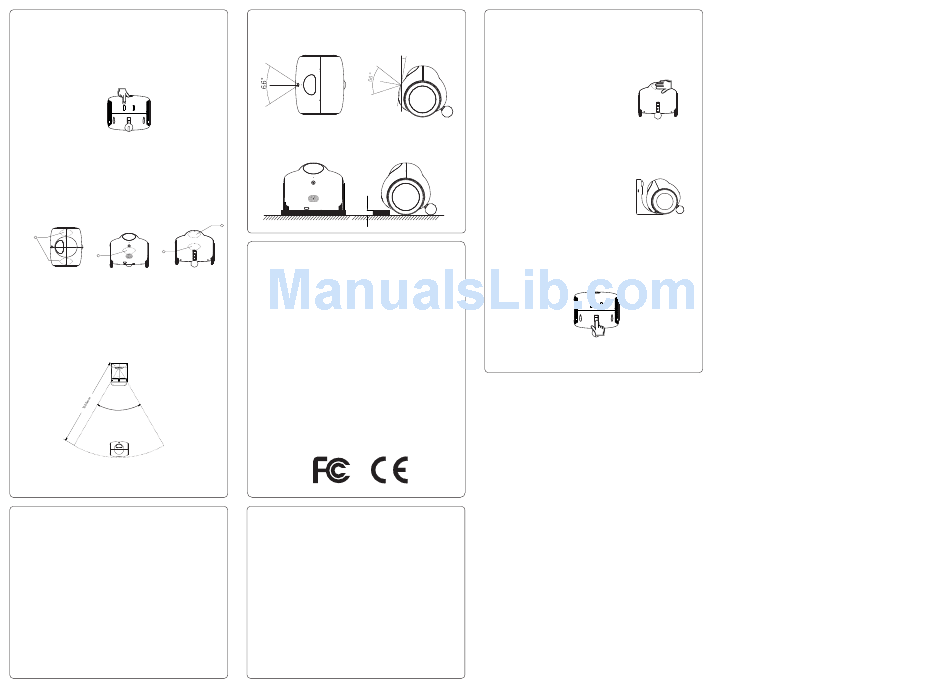

ESCAM QN02 Family Robot User Manual page 2

Switch on/ Switch off
.
Switch on: Press the button, hold more than 3 seconds, the left light on the head should
be lit, and two wheels will run a bit, at this time release the button
immediately.
Switch off: Press the button until the two eyes are both not lit.
Touch interaction
1.Tap the left(Right) shoulder —— Robot turns left(Right).
2.Rub the Belly ——Robot issues a "laughter" expression and pitch.
3.Rub/Tap the back of the head——Robot turns back.
4.Rub/Tap the buttocks ——Robot issues a "coy shy "expression.
1
4
2
Semi-automatic charging
Users drive the robot near and facing the charging stand within 1000mm as
shown in the diagram below, then press the "charge" button, the robot will
automatically move towards and onto the charging stand. Be careful to have
any debris cleared away from the charging stand for a clean view for the
robot.
60°
Parameter
Working environment: indoor(Hard ground)
Ÿ
Using temperature range:0℃-50℃
Ÿ
Ÿ Storage temperature range: -10℃-70℃
Operating & Storage Humidity: 50℃(5~95)RH%
Ÿ
Ÿ Air pressure:86-106kPa
Camera resolution：720p
Ÿ
App support： iOS、 Android
Ÿ
Ÿ Wireless network: 802.11b/g/n
Ÿ The lithium ion battery capacity:

3.7V, 4200mAh
Ÿ Charging time≤ 8h,
Charging current≤1.5A
Ÿ
Ÿ Active time≥5h; Standby time≥9h
Ÿ The charging voltage：5V
Charging mode: Semi-automatic
Ÿ
Weight of robot:870g
Ÿ
Ÿ Weight of Charging stand:150g
Ÿ N. W.:1325g
Robot Size (L*W*H) 185*150*151mm 3
Ÿ
3
Ÿ Charging Stand Size (L*W*H)115*82*150mm
Ÿ Horizontal Viewing Angle: 66°, Vertical viewing angle:56°.
Ÿ Camera angle of inclination of 10 ° when body is in an upright state.
10°
Ÿ Across the barrier:Height of barrier≤15mm(Upright or backward state).
15
3
Note：
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the user
is encouraged to try to correct the interference by one or more of the following measures:
Ÿ Reorient or relocate the receiving antenna.
Ÿ Increase the separation between the equipment and receiver.
Ÿ Connect the equipment into an outlet on a circuit different from that to which the receiver
is connected.
Consult the dealer or an experienced radio/TV technician for help.
Ÿ
Caution:
Any changes or modifications to this device not explicitly approved by manufacturer could
void your authority to operate this equipment.
This device complies with part 15 of the FCC Rules. Operation is subject to the following
two conditions: (1) This device may not cause harmful interference, and (2) this device must
accept any interference received, including interference that may cause undesired
operation.
FCC ID: 2AFWGRANABABY
Precautions
1.The product can only be used indoor.
2.Do not use this product in water. Avoid the product to be poured by water. The water may
damage printed circuit board inside.
3.Avoid using the product in high places such as table.
4.Please note that any other obstacle can not be placed around the charging stand at a
distance within 1m , otherwise it would be difficult for Robot to find charging stand.
5.Considering that there are a lot of power adapter in most residence, so the adaptor is not
specifically configured. Please use brand power adapter to avoid leakage and other
accidents. The output current of adapter must more than 1.5A.
6.Before you start to use it, you must input the SSID and Password to it, so the Robot can
connect to internet.
Common problem
1 Forget the login password .
Put the Robot upon the Charge Stand, touch the back of its head, the Robot will beep, touch 3
times in a row, it will sound an alarm. If you touch again , that is the fourth touch , the login
password and Wi-Fi settings of the Robot will restore the factory value.
restore the factory value. The Robot will sound "ooho" after setting.
Later you need to re-set the Wi-Fi and to enter the password
"123456789" when you operate it again. ( If the robot is
touch-sensitive failure, you can take it off the charge stand,
you can hear a sound "ding" and then take it on the charge
stand again. Thus ,repeat 4 times, the login password and
Wi-Fi settings of the Robot will restore the factory value.
2.Robot is not online
Please check the indicator of Robot,
Ÿ If the two eyes are both lit, please check if the Router is connected with internet.
Ÿ If only one eye is lit, please check if the router was switched off.
If the router was changed or SSID/ PASSWORD of Wi-Fi was changed, Robot will not work
normally because it can't find the router. You should restart the Robot, then follow the step
in "Getting start" to set the Wi-Fi again.
Ÿ If no eye is lit, please try switch on the Robot. If you cannot switch on, the battery voltage is
too low,
please move the back leg with you hand to make the Robot into the eye of the
charging base. Adjust the robot's position until the red
led
on
Robot's
head
is lit.
3.Video is not smooth
If the network speed is slow, the video will be not smooth.
In full screen mode, it will require faster speed to ensure
smooth video.
4.Howling
If the Robot and the cell phone are in the same room, howling may occur. Please to
press mute button or decrease the phone volume until the howling disappears.
5.One more Robot
If you have one more Robot, you have to give each a unique name, so you can identify them.
6.Back lit
In backlit condition, the body may be very dark. You can use the exposure regulator to
increase brightness.
7. Automatic charge failure
Check
the
connection
of
charging
stand
and
power
adapter.
Try to clean the narrow groove wall beside the back leg by your finger as showed below.
8. Battery can not be filled full
When you find that the battery always can not be filled full, please check your power
adaptor. If the max output current less than 1.5 A, this will happen.
