Ablescope VA-B2-WIFI User Manual

Introduction

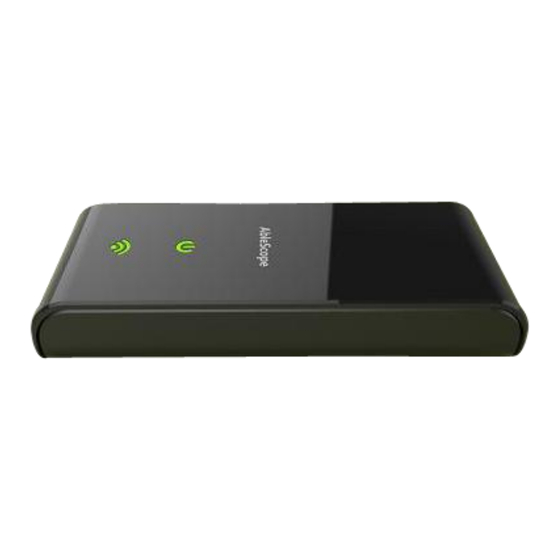

Ablescope AirBox WiFi Converter for iPads and iPhones is designed for customers who want to use our Ablescope
borescopes (Models: A-400, A-800, A-920 and A-980) and microscopes with their iPhone and or iPad. It works with UVC (USB Video
Camera) that has MJPEG or YUY2 format output. AirBox converts the USB camera signals into a WiFi hot point, and iPad, iPhone or
Android devices with WiFi functions can be connected to and one can use our free APPs (AirBox -Vividia Ablescope) to see preview live
images, take pictures and record videos.
The Apps for AirBox：First download our APP and install on your devices:
Devices
Android
iPhone, iPad
1, Connection to A Power Source:
Caution: Always connect camera to wifi converter first and then plug in the power supply!
Micro
USB
Port
For
Power
1-1, Plug an USB camera into the USB port of WiFi converter.
1-2, Plug in the charging cable into WiFi converter through Micro USB port, and the other side of the cable into a power supply of 5V DC
(an USB port of power adapter with output of 5V2A), or a power bank or an USB port of PC.
1-3, A power indicator light will be on and after 10 seconds the WiFi signal indicator light will be on.
2, Connect WiFi and Open APP:
2-1, On a WiFi device (iPhone, iPad or Android phone, tablet), search WiFi hot spots and find AirBox (ID: CHD_##:##:##), click to connect.
2-2, The password is 12345678
Ablescope ® AirBox WiFi Converter for iPad iPhone and Android
MODEL VA-B2-WIFI BOX
User Guide
AirBox - Vividia AbleScope
2016-11-10
App Name
AirBox.apk
Page 1 of 2
Download Address
ablescope.com
App Store
Standard
USB
Port
for
Camera
®
articulating
