KATSUMI ELECTRONIC KEYER EK-150
INSTALLATION INSTRUCTION
FEATURES
The ELE-KEY model EK-150
itself forms the dots, dashes
and spaces in the precise ratio
required for perfect code, at any
speed desired by the operator.
Plug-in unit P.C.B. and solid
state circuitry.
Squeeze
(IAMBIC)
with
full
dot
memories.
Built-in sidetone with tone and
volume
control,
SEMI(BUG)/AUTO.
speaker, headphone jack.
Heavy duty transistor switch
(2SB546) for 150 V, 2 Amp. DC
and with a built-in high speed
plate relay for max. 700 V, 500
mA any transmitter keying.
Operation on 100 to 120 V/50 –
60 Hz or DC 7 – 13.5 V.
Respectively
Operation on 220 to 240 V/50 –
60 Hz or DC 7 – 13.5 V.
OPERATION
(1) Check polarity and the required keying voltage and current on your transmitter key terminals,
using a tester (voltmeter, milliameter) the key up (open circuit) voltage must not be in excess of
.50 volts D.C.

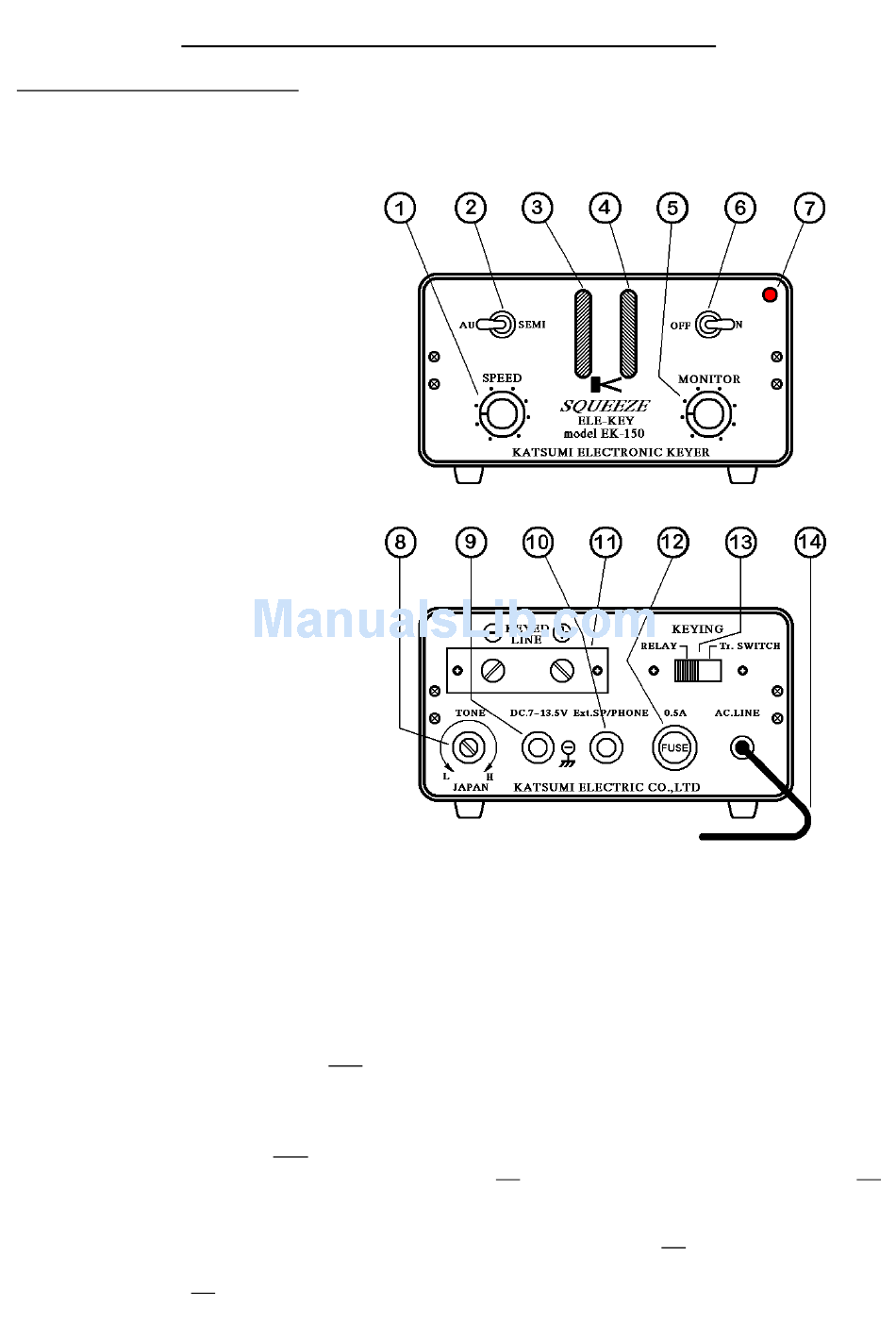

(2) Connect the key line (output) [11] on the rear panel terminal (+) to the POSITIVE keying
terminal of the transmitter, and the (–) to the NEGATIVE terminal, as previously determined by
voltmeter test (1).
(3) Plug in the power cord [14] to the 100 to 120 volts resp. 220 to 240 volts, 50 to 60 Hz
alternating current supply. Set the power switch [6] to the ON position. The pilot lamp [7]
should light.
(4) Moving the dual key levers to the dot position (push to the right for [3] left key lever) should
result in dots being heard from the speaker and moving the dual key lever to the dash position
(push to left for [4] right key lever) should produce dashes.
sending
and
dash
switch
for
Built-in

Advertisement

loading

  Related Manuals for Katsumi ele-key EK-150

No related manuals

  Summary of Contents for Katsumi ele-key EK-150

  • Page 1 KATSUMI ELECTRONIC KEYER EK-150 INSTALLATION INSTRUCTION FEATURES The ELE-KEY model EK-150 itself forms the dots, dashes and spaces in the precise ratio required for perfect code, at any speed desired by the operator. Plug-in unit P.C.B. and solid state circuitry.
  • Page 2 (5) Turn the speed control knob [1] to the desired, which may be instantly adjusted within the range of 8 to 60 WPM. (6) The monitor knob [5] control the volume of the speaker and head phone [10]. Adjustable tone control [8] (tone L: low, H: high).
