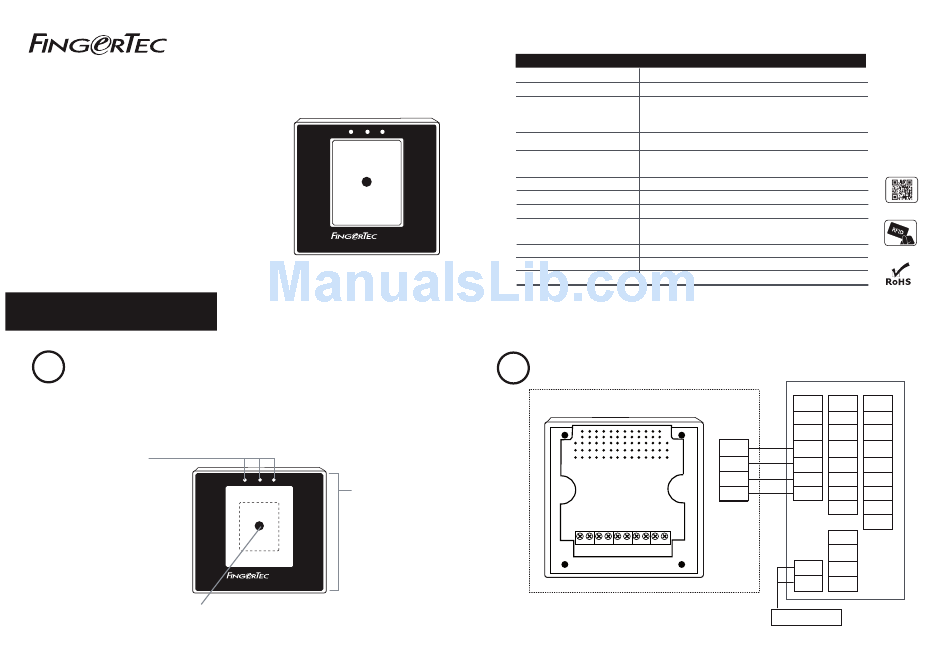

FingerTec QR110 Installation Manual

w w w . f i n g e r t e c . c o m w w w . f i n g e r t e c . c o m
QR110
QR Code and Card Reader
for Access Control
Installation Guide
1 INTRODUCTION
QR110 is a QR code scanner that works as a slave terminal for door access control system, where
it captures the QR Code, converts it into a numeric code and sends this information to the master
terminal for verification. QR110 communicates with the master terminal via Wiegand 26-bit
output and requires the master terminal to have a Wiegand 26-bit input as well in order to be
able to accept signals from QR110
LED Light Indicator
1. First LED
Green light indicates that
the device is on standby.
2. Second LED
Green light indicates that
the card information is being
read and sent to the master
terminal for verification.
3. Third LED
Red light indicates that the
device is connecting to the
master device. The light
indicator will then change
QR code scanner
to green color if the
Scan the QR code at this area for verification.
connection is successful.
QR110
s u p p o r t @ f i n g e r t e c . c o m
1 2 3
Card Scanning Area
Scan a card at this area
for verification.
Default card type:
RFID Card, 125kHz 40
to 80mm
Made to order:
MIFARE, 13.56MHz 30
QR110
to 50mm
s u p p o r t @ f i n g e r t e c . c o m
SPECIFICATIONS
MODEL QR110
86 x 40 x 86
DIMENSION (L X W X H), mm
CREDENTIALS
QR Code
RFID EM Card 125KHz
MiFare Card 13.56MHz (Made to order)
OUTPUT FORMAT Wiegand 26/34
Wiegand <100m
COMMUNICATION DISTANCE
RS485 < 1200m
DC 9 ~ 16V
WORKING VOLTAGE
< 100mA
WORKING CURRENT
-10C ~ 70 C
WORKING ENVIRONMENT
SENSING DISTANCE QR Code: 3~10cm
Cards: 2~3cm
< 0.2 seconds
READING SPEED
<0.5 seconds
READING INTERVAL
Q2i, R2, R3, Face ID 3, Kadex, m-Kadex, Ingressus I/II/IV
SUPPORT
NOTE: Specifications are subject to change. Check http://product.fingertec.com for latest product information.
©
2018 Timetec Computing Sdn Bhd. All rights reserved • 042018
2 Connections & Wiring Diagram
Rear of QR110
VCC GND D0 D1
Note:
Only 1 black wire is provided. It can be shared for
GND for power supply and Wiegand 26-bit output.
QR Code
Card
Rear of Master Terminal
BEEP
485B NC2
GLED
485A COM2
RLED GND NO2
D0 232T NC1
INWD0
D1 232R COM1
INWD1
GND GND NO1
GND
WD1 BUT
VCC
+12V
WD0 GND
SEN
RJ45-1
RJ45-2
GND RJ45-3
+12V RJ45-4
DC12V 3A Power Supply
