Quick Reference Guide
IL04002001E

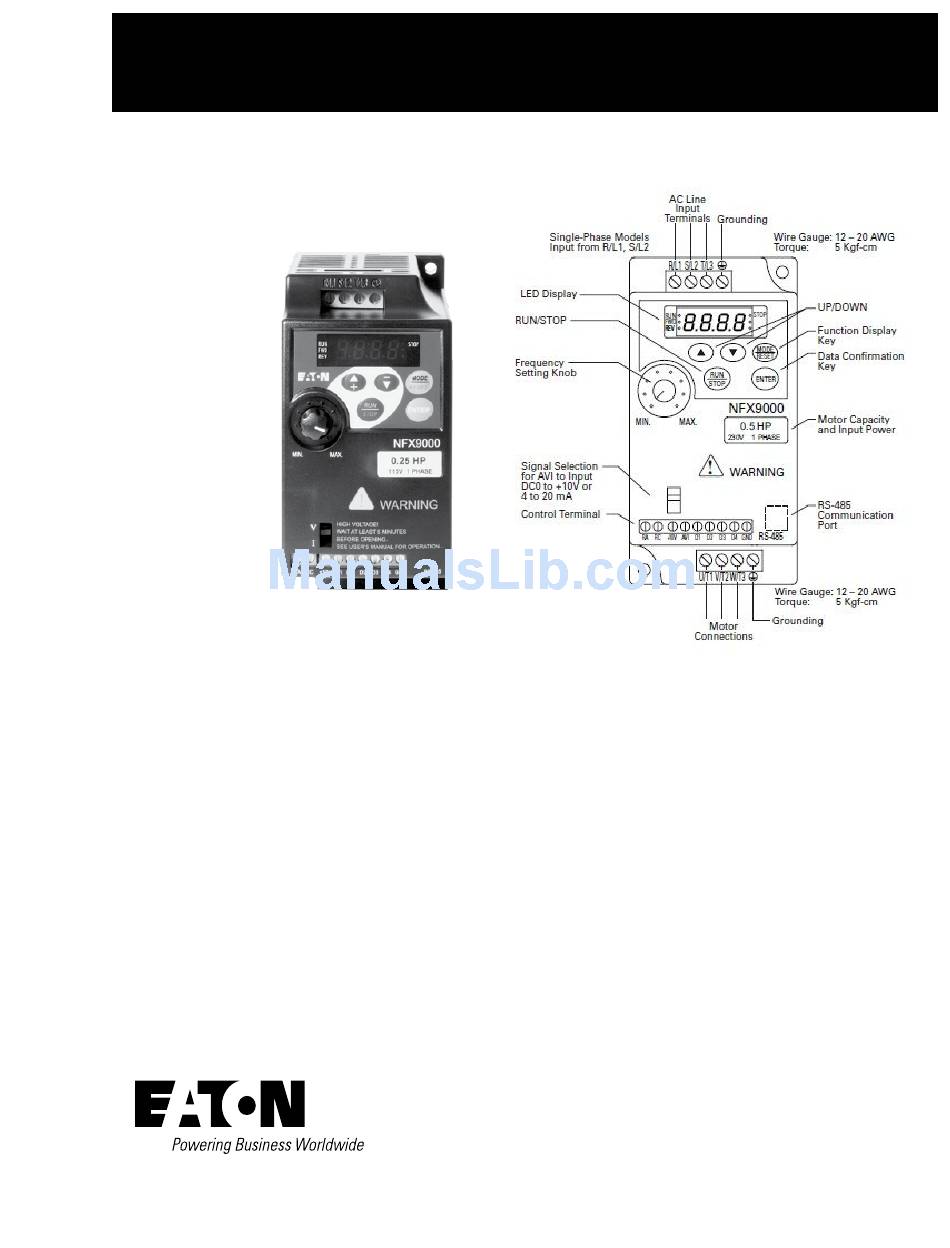

Quick Reference for NFX9000 Adjustable Frequency Drives
Program Instructions
Press "ENTER" to access the 10 Groups, Group 0-9: Display will show "0" = Group 0
Press "+" or "–" to select Group 1 - 9
When the required Group is displayed, press "ENTER" to go into that Group
Display will show the Group Parameter Code number:
Example: 1 - 00 = Group 1, Parameter 00
Press "+" or "–" to go to the required parameter number:
Example: 1 - 09 = Group 1 Par 09 = Acceleration
Press "ENTER" to view the parmeter set value
Example "d 10.0" = 10 seconds
Press the "+" or "–" to change the value
Press "ENTER" to stor the new value
Once the required Parameters are set, press "MODE" to go back to the previous level
Continue to press "MODE" until you return to the RUN screen...LED position = FWD or REV and STOP
Effective October 2011
NFX9000 Adjustable
Frequency Drives
