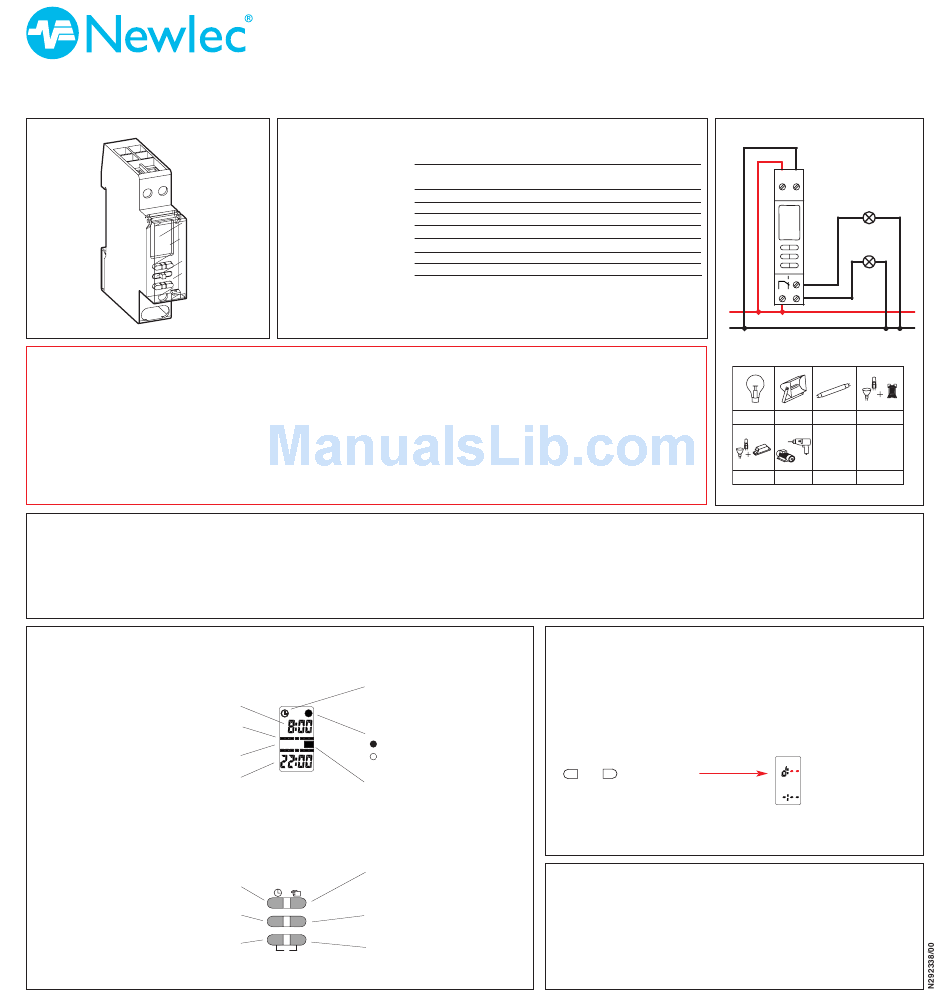

Newlec NLCUT1 User Manual

NLCUT1
Safty notes
This product may be installed only by a qualified electrician. Non-compliance may result in a fire hazard or electric shocks. Before installation, read
the operating instructions and observe the product-specific requirements for the installation location. Use only original spare parts for repair and
maintenance. Unauthorised opening and repair by other persons will invalidate all claims for liability, replacement or warranty services.
Function
The NLCUT1 is a microprocessor controlled digital time switch. Eight programs of your choice can be stored and used to control the automatic operation of your electrical equipment.
Each individual weekday can have a separate program or you can have several days operating on the same „Block" program. To program the NLCUT1 a „picture" is used and when this is complete
the chosen times are stored in the microprocessor memory. The summer-/winter changeover can be programmed for hand or automatic operation.

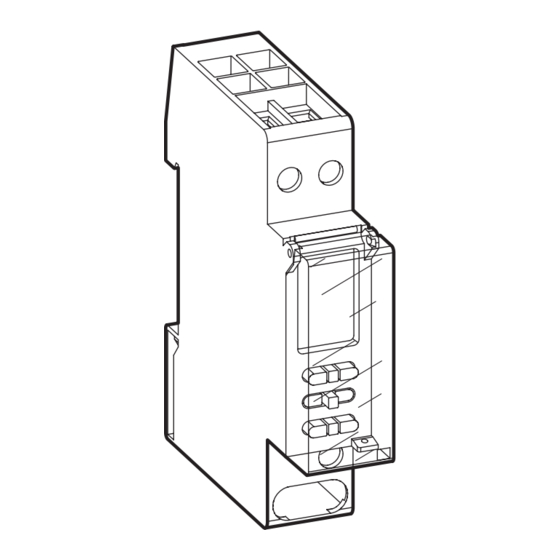

Presentation
Liquid Crystal Display
Actual or „On" time
Weekday
Day number
„Off" time
Programming Buttons
Choose function
Summer- / winter
changeover
Setting the hours, minutes
and days
Technical data
NLCUT1
Supply voltage: 230V 50/60Hz
Consumption: ca. 1W
changeover contact 16A 250V~μ cos ϕ = 1
Contact rating:
Parallel compensation: not allowed
Accuracy: ±2,5s/d
Terminal capacity: single strand
1,5 to 4 mm
Program pictures: 8
Battery reserve: 100h
Storage ambient: -10°C to +60°C
Working ambient: -10°C to +55°C
For saftety, when the time switch is connected to the mains supply the contact should not be
used on an isolated low voltage supply. And when the time switch is connected to the isolated
voltage supply the contact should not be used on the mains supply.
Symbol for
„Set actual time"
State of output
= On
1234567
= Off
„Off" days
Hand switch
±1h
C
Delete
S OK
Fixing the hours, minutes,
R
days and continuous
switching
multi strand
2 2
1,5 to 2,5 mm
1. Starting
Approximately 30 seconds after the supply voltage is connected the symbols
appear on the LCD.
Before any operations the complete memory must be reset.
2. Memory reset
+
press both at
S OK
the same time
The time switch memory is completely clear.
3. Setting date and summer- / winter changeover
This can only be done after a Reset.
Summer- / winter changeover can be made manually or automatically if set.
If manual changeover is required choose no during the date input. Automatic
changeover depends on your country / area. Choose the appropriate setting
for your country / area.
Connection
1 2
5
3
4
L
N
1000W 1000W 2500W 1000W
2000W 1000W
