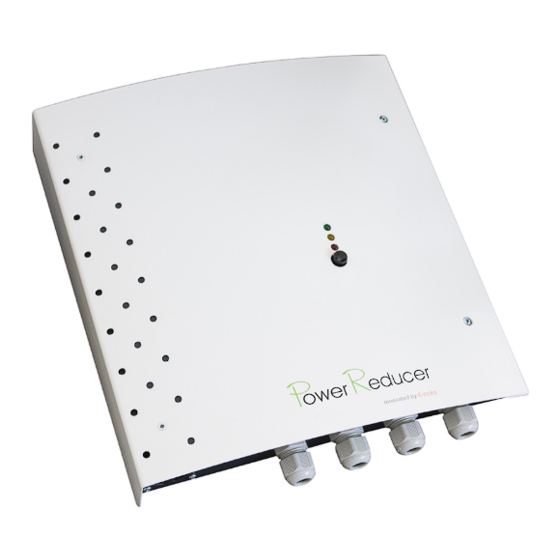

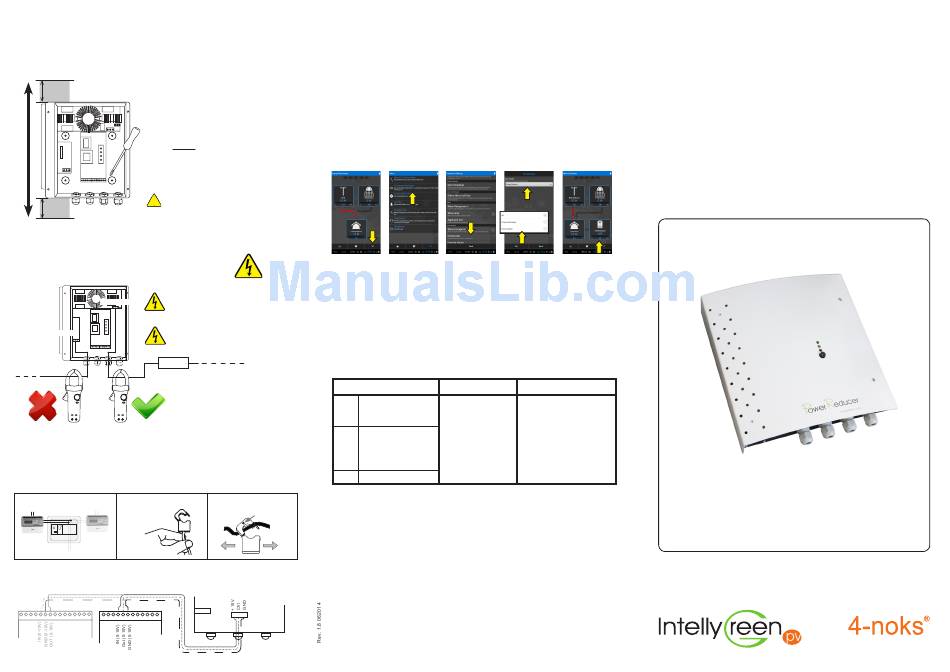

Elios4you Power Reducer Quick Manual

INSTALLATION

1) Fix Power Reducer onto the wall.
Drill the wall referring to the 4 holes at the back of Power Reducer. Use the screws to securely
fix it on the wall.
LOCATION: the ideal position to install Power Reduc-
er is beside Elios4you, therefore next to the electrical
MIN 7 cm
panel or fuse box. When searching for where to install
the PR, consider that it should be placed near the de-
vice power supply.
VENTILATION: In order to provide Power Reducer
with a good ventilation and reduce the operating tem-
perature, it is strongly recommended to install the
device vertically (cable glands must be placed down-
wards).
Proper ventilation is also guaranteed by clearings
around the device. Make sure no other objects are
placed within a range of 7 centimeteres.
ATTENTION: do not use Power Reducer itself as
!
a template for drilling holes directly on the wall.
MIN 7 cm
2) Cut the immersion power supply cable and connect the pins to the
correct terminals.
WARNING: before cutting the wire, make sure the boiler is not supplied.
Power Supply cables must be tripolar.
Each single wire must feature a mini-
Terminal 3
mum dimension of 2.5 mm
Installation of 16 A Circuit Breaker to protect
Terminal 1
the device
16 A
Towards the
immersion
Possible measurements made with am-
perometric clamps must be detected on
the live-phase that connects the power
source with the Power Reducer. Measure-
ments detected on the wire directed to-
wards the resistive load will be inaccurate.
3) Install Elios4you
See the documentation related to Elios4you for a more detailed installation procedure
Install Elios4you within the main electrical box. If not possible, add an additional electric panel.
a)
b) Install the Elios4you Current Transformers
I) Identify the live-phase wire II) Identify the GENERATION
related to PV GENERATION Curent Transformer
Generation CT:
WHITE label
L1
Mains meter Generation
Scambio
Produzione
(GRID)
(rete ENEL)
Household
Utenza
4) Connect Elios4you and Power Reducer using the 0-10V output
13 14 15 16 17 18
Elios4you Elios4you
three-phase single-phase
Page 5
5) Power up Elios4you (Power Reducer still off) and complete the
Elios4you set up (Check out Elios4you manual)
WARNING: Make sure the power / energy readings are correct. Failure to ensure correct power
/ energy readings will result in incorrect function of the Power Reducer
6) Set up the Power Reducer parameters, using the Elios4you App
open on the tablet / smartphone (Power Reducer still off)
A) From the "Energy Performance" page, press the "Menu" button and go to "Parameter Settings /
Peripherals". Select "Power Reducer" mode, and enter parameters Load (W) and "Set Point" (W)
B) Now the main page shows the Power Reducer widget. Click the button to access the menu.
7) Switch on the Power Reducer and complete the set up
A) Switch on the Power Reducer and the immersion. Make sure the App keeps the load off
B) Set "Boost" Mode on the APP and set 100% load activation. Click "OK"
C) Make sure the immersion is actually working at full power
2
D) Set "Automatic" Mode. Now the system will bring the "Exchanged Power" value to the "Set
Point" value, diverting any excess power towards the immersion controlled by Power Reducer
Check the Power Reducer APP Guide to find out more about the Power Reducer specific features.
Towards the power supply

POWER REDUCER: self-diagnosis

When switch on, Power Reducer begins a test to evaluate the correct KIT installation.
LED behaviour
GREEN Blinking light - energy detected
by CT: the higher the blink fre-
quency = the bigger the energy
measured
YELLOW blinking light - quantity of en-
ergy, supplied by Power Re-
ducer to the immersion:
the higher the blink frequency
= the bigger the energy diverted
to the immersion
RED Either ON or OFF
III) Correctly clamp the CT over
the correct live-phase cable
green point
residual-current
meter circuit breaker
Power Reducer
Terminal 2
1 2 3
Tel. (+39) 0434 768462 - Fax (+39) 0438 694617 - info@4-noks.com - www.4-noks.com
0-10V connection
SETTING
Functioning Suggestions
Power Reducer operates in
the proper way
When the red LED is steady
Installation completed successfully
ON it informs that ByPass
is active: maximum energy
sent to the immersion, de-
spite of the generated
energy
4-noks
Via Per Sacile, 158 - Francenigo di Gaiarine (TV) - Italy
POWER REDUCER
Serial Number from 101
Quick
Guide
1
1 Power Reducer
®
Page 6 Page 1
