TREX 700 NITRO ELECTRONIC CONVERSION KIT
TOOLS REQUIRED:
4.5 mm Drill Bit (or equivalent ANSI #16 drill bit)
Manual or Power Drill
Motor Mount Installation Adhesive Diagrams (supplied with kit)

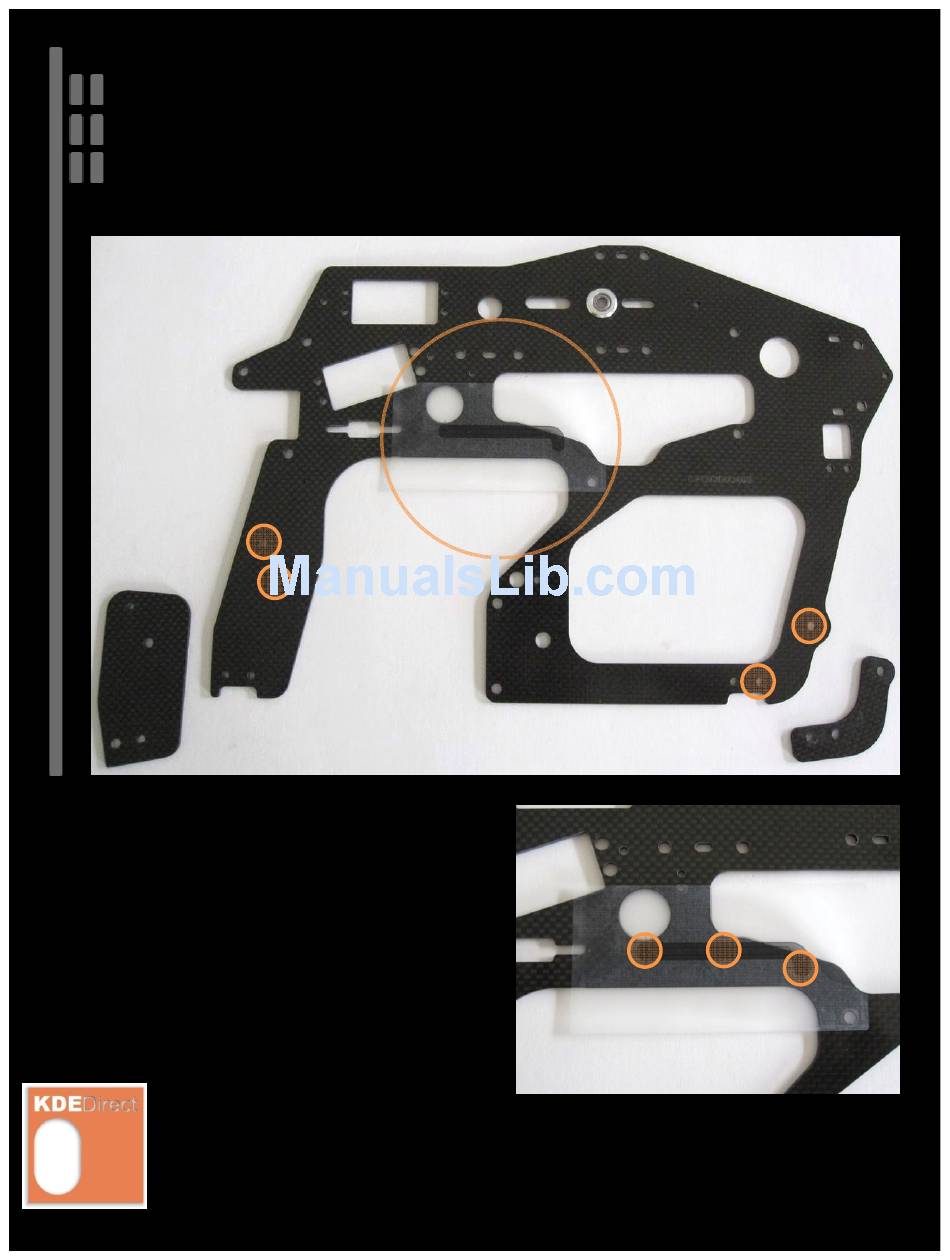

Drill the four orange-highlighted holes to 4.5 mm
diameter using the required drill bit and a manual
and/or power drill.
Attach the Motor Mount Installation Adhesive Diagram
to the frame (left and right sides provided for
corresponding frame pieces).
Drill the three Motor Mount hole locations (previous M3
mount editions have two locations) to 4.5 mm diameter
as directed by the orange crosshairs shown on the
Adhesive Diagram.
www.KDEDirect.com
REVISION 4
