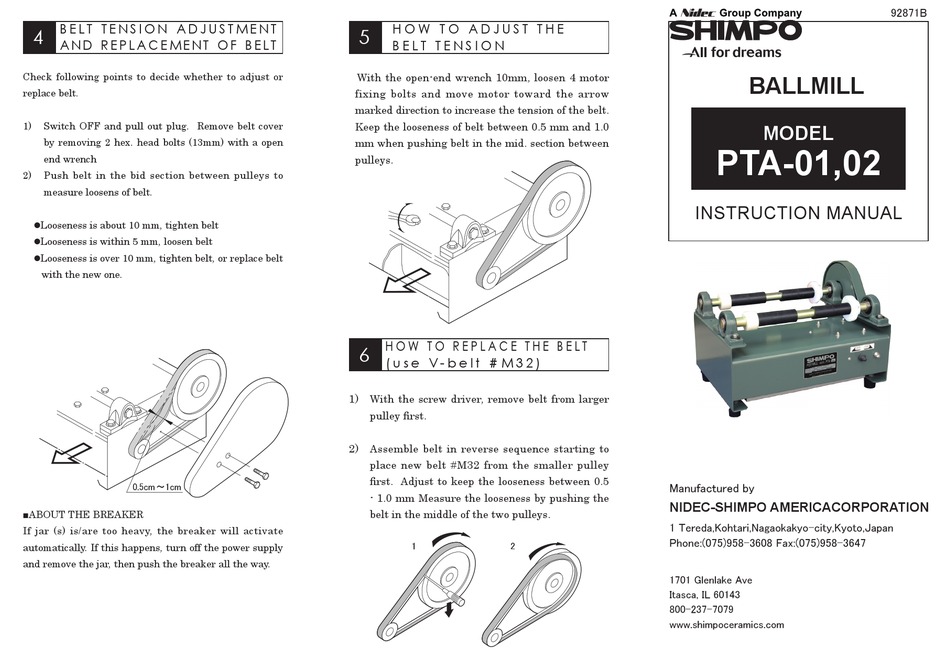

Shimpo PTA-01 Instruction Manual

B E L T T E N S I O N A D J U S T M E N T
4
A N D R E P L A C E M E N T O F B E L T
Check following points to decide whether to adjust or
replace belt.
1) Switch OFF and pull out plug. Remove belt cover
by removing 2 hex. head bolts (13mm) with a open
end wrench
2) Push belt in the bid section between pulleys to
measure loosens of belt.
Looseness is about 10 mm, tighten belt
Looseness is within 5 mm, loosen belt
Looseness is over 10 mm, tighten belt, or replace belt
with the new one.
0.5cm ～1cm
■ABOUT THE BREAKER
If jar (s) is/are too heavy, the breaker will activate
automatically. If this happens, turn off the power supply
and remove the jar, then push the breaker all the way.
H O W T O A D J U S T T H E
5
B E L T T E N S I O N
With the open-end wrench 10mm, loosen 4 motor
fixing bolts and move motor toward the arrow
marked direction to increase the tension of the belt.
Keep the looseness of belt between 0.5 mm and 1.0
mm when pushing belt in the mid. section between
pulleys.
H O W T O R E P L A C E T H E B E L T
6
( u s e V - b e l t # M 3 2 )
1) With the screw driver, remove belt from larger
pulley fi rst.
2) Assemble belt in reverse sequence starting to
place new belt #M32 from the smaller pulley
fi rst. Adjust to keep the looseness between 0.5
- 1.0 mm Measure the looseness by pushing the
belt in the middle of the two pulleys.
1 2
BALLMILL
MODEL
PTA-01,02

INSTRUCTION MANUAL

Manufactured by
NIDEC-SHIMPO AMERICACORPORATION
1 Tereda,Kohtari,Nagaokakyo-city,Kyoto,Japan
Phone:(075)958-3608 Fax:(075)958-3647
1701 Glenlake Ave
Itasca, IL 60143
800-237-7079
www.shimpoceramics.com
92871B
