Beverage Dispensing Technology
Friedhelm Selbach GmbH
Heisenbergstraße 5
42477 Radevormwald
Phone
+49/ 21 95 / 68 01-0
Fax:
+49/ 21 95 / 68 01-188
Email
info@selbach.com
Internet: http://www.selbach.com
The device described in this manual may only be put into operation provided the operators are suitably
trained and the operating and maintenance personnel have studied the instructions closely.

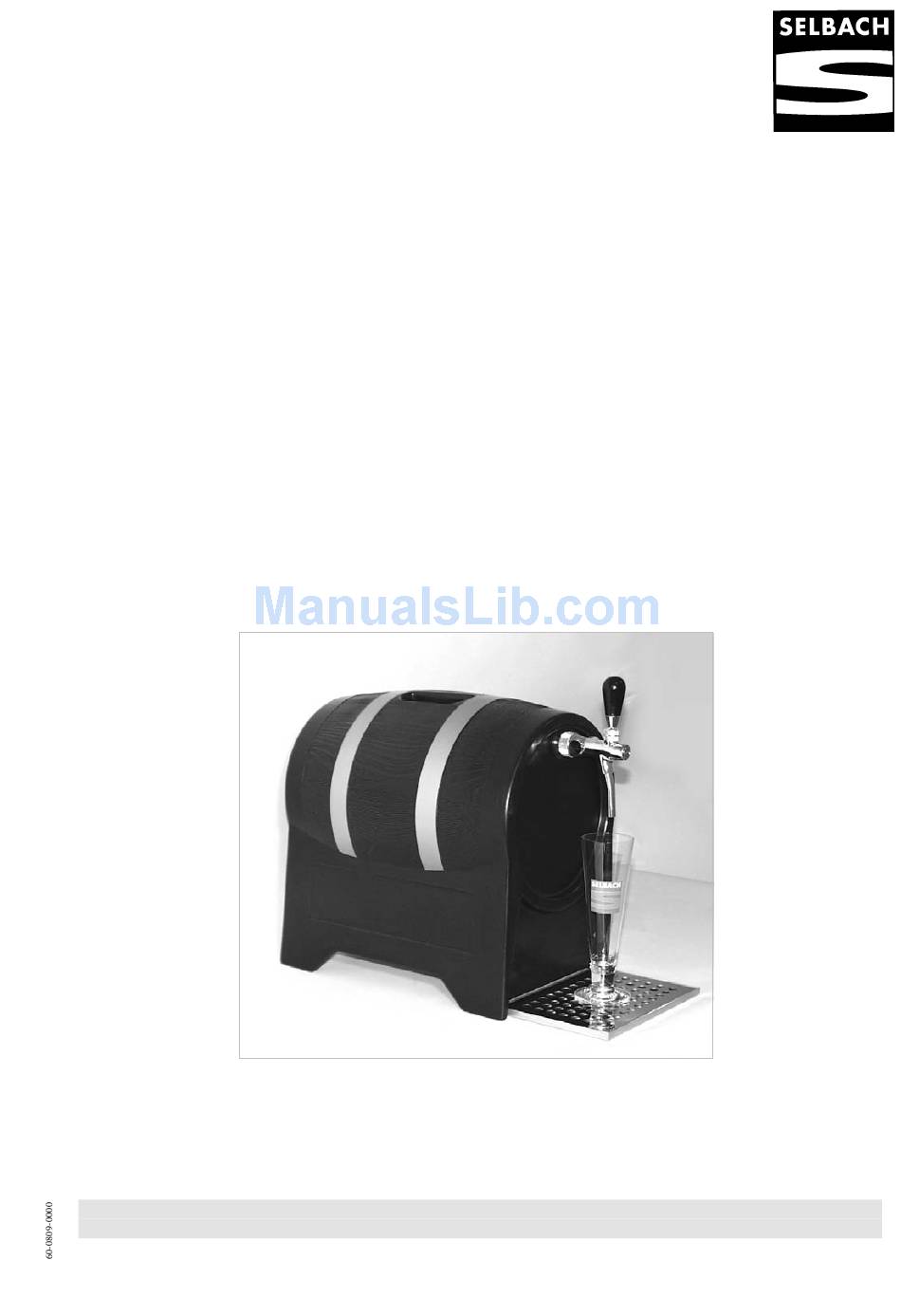

Operating manual
Party Keg BT 40
Advertisement
Table of Contents
Summary of Contents for Selbach BT 40
- Page 1 +49/ 21 95 / 68 01-188 Email info@selbach.com Internet: http://www.selbach.com Operating manual Party Keg BT 40 The device described in this manual may only be put into operation provided the operators are suitably trained and the operating and maintenance personnel have studied the instructions closely.
-
Page 2: Table Of Contents
Contents 1.00 SAFETY INSTRUCTIONS ..........................3 1.10 A .............................3 SSEMBLY START 1.20 S ...........................3 AFETY NSTRUCTIONS 1.21 Safety risks...............................3 1.22 Safety directives ............................3 1.30 S ..............................4 PARE PARTS 1.40 T ...........................4 RANSPORTATION STORAGE 1.50 E ..........................4 LECTRICAL CONNECTION 1.51 Beer connection ............................4 1.52 Operation..............................4 1.60 S ................................4... -
Page 3: Safety Instructions
1.00 Safety Instructions 1.10 Assembly/start-up Place the device on an even, dry and clean surface. Make sure the connecting cable leads directly to the socket. The connecting cable must never be bent or squashed. Always use genuine tubes or approved beverage tubes for beer supply. Ensure sufficient ventilation of the device! Do not store objects underneath appliance! Pay special attention to the following safety precautions: Operating temperature range +10 to +40 degrees Celsius... -
Page 4: Spare Parts
All service instructions contained in the manual concerning servicing work must be observed without fail. 2.00 Proper use Selbach beverage chillers and beverage pumps are designed for dispensing chilled drinks. These appliances are utilised in, among other things, catering and for recreational purposes. -
Page 5: Commissioning
3.00 Commissioning • Protect the CO cylinder from toppling over by means of a cylinder holder. • Screw the cylinder pressure reducer to the CO cylinder. • Connect the tank connection parts to the beverage tank. • Open the carbonic acid stopcock. •... -
Page 6: Pouring Draught Beer
To remove the tap head, push the lever up and remove the tap head from the seal. Afterwards reattach the protective cap. 3.20 Pouring draught beer The art of pouring draught beer requires to produce a nice smooth head on top of the beer and to lose a small amount of the beer’s own CO at the same time. -
Page 7: Tubing Diagram
3.40 Tubing diagram pressure reducer Beer tube Tap head (Model depending on type of beer!) Power cable tube Ensure correct position of party keg after connecting! cylinder Attention! Protect against toppling over! Always operate with pressure reducer! Section: pressure reducer fitted to CO cylinder fitted to pressure... -
Page 8: Tubing Diagram Party Keg With Membrane Pump
3.41 Tubing diagram party keg with membrane pump Beer tube Ball valve (valve position open) Tap head Model depending on type of beer to be poured! Air connection tube... -
Page 9: Shut-Down
4.00 Shut-down • Close CO cylinder and CO stopcock at pressure reducer. (Model without membrane pump only) • Draw mains plug. • Detach tank connection parts from beverage tank. • Employ specialist staff for having the appliance emptied and cleaned. •... - Page 10 Mechanical cleaning: For the part of the appliance containing the tube, sponge balls are pushed in alternate flow direction through the line with the help of cold water. However, this requires that the tube has an even diameter and does not contain any interfering fixtures.
-
Page 11: Troubleshooting
7.00 Troubleshooting Defect/ fault Possible cause Corrective measures • • • Appliance Network connection not detected Establish network not starting connection • • Thermostat switched off Switch on thermostat • • Thermostat not switching on Replace thermostat* • • Starting device at compressor defective Replace starting device *(relay and condenser) •... -
Page 12: Spare Parts List
8.00 Spare parts list Articles Item No. Metal compensation tap chrome 23-0158-0000 Metal compensation tap gilded 23-0158-0008 Drip pan VA 245/170/11 41-0124-0000 Membrane pump assembly 50-0269-0000 Air connection tube 26-0629-0000 Thermostat 50-0133-0000 Thermostat button 50-0103-0000 Please use original spare parts only 8.10 Accessories Articles Item No.
