AD-net Technology AN-UM100-1 User Manual

Brief introduction
Many thanks for purchasing AD-net Fast Ethernet optical
transceiver! This product
IEEE802.3UI100Base-Tx/Fx protocol, as well as full duplex
and half duplex mode. This manual is for adaptive
10M/100M transceivers. The following purchasing guide is
for customer's reference.
Purchasing guide for AD-net optical transceivers
Model Specifications
AN-UM100-1 10/100M adaptive, multi-mode 2km, SC
AN-UM100-2
10/100M adaptive, multi mode 2km, ST
AN-UM100SM-20 10/100M adaptive, single mode 25km, SC
AN-UM100SM-40
10/100M adaptive, single mode 40km, SC
AN-UM100SM-60 10/100M adaptive, single mode 60km, SC
AN-UM100SM-100
10/100M adaptive, single mode 100km, SC
AN-UM130-20 10/100 Base-TX/FX
Converter 20Km SC Connector
AN-UM150-20 10/100 Base-TX/FX
Converter 20Km SC Connector
Packing list
Please check the following items in the package before
installing the transceiver.
Fast Ethernet optical transceiver
AC/DC adapter (external)
Power line (built-in)
User manual
Warranty card
Please contact the dealer immediately for any loss or
damage to the above items.
Installation
1. Interface
RJ-45 interface
The transmission media adopts CAT5 twisted-pair with
typical length of 100 meter. It features the function of
supports automatically identifying the through line and cross wire
(10/100M).
Fiber interface
SC/ST fiber interface is of duplex mode type, including two
interfaces, namely TX and RX. When the two sets of optical
transceiver are interfaced or connected to switch with fiber
interface, the fiber is in cross connection, namely "TX-RX",
"RX-TX" (direct butting for single optical fiber).
2. Connection
The network device (work station, hub or switch) with
RJ-45 interface is connected to RJ-45 jack of optical
transceiver through twisted-pair. And the multi/single mode
fiber is connected to SC/ST fiber interface of the optical
transceiver. Then switch on. The corresponding LED is on
Bridge
for correct connection. (See the table below for the LED
indicator lamp)
Bridge
1set

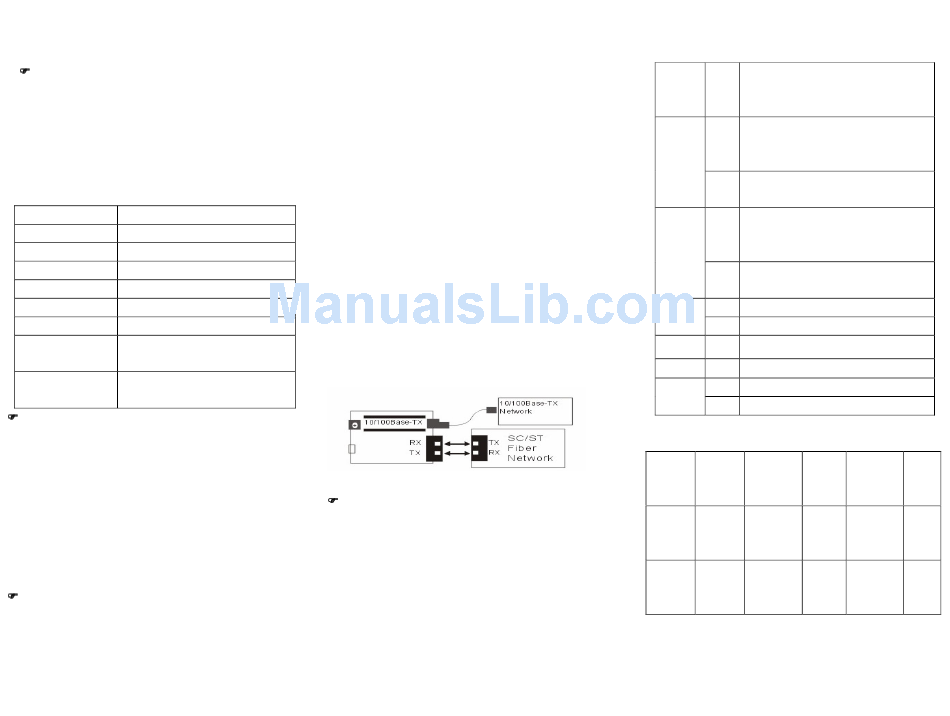

Figure 1 Schematic drawing of connection
1pc
Explanation for LED indicator lamp
1pc
LED indicator lamps serve as device monitoring and trouble
1copy
display. The following is the explanation for each LED
1pc
indicator lamp.
Transmission characteristics of single fiber transceiver
AN-UM1
30/150-20
AN-UM1
50-40 (40
1
LED Status Explanation
indicator
lamp
FX On Connection status display for fiber link.
Link/Act "ON" indicates that Fiber link is in correct
connection.
Blink Active status display of fiber link
"Blink" indicates packet goes through Fx end.
TX On Connection status display for electric link.
Link/Act "ON" indicates that electric link is in correct
connection.
Blink Active status display of fiber link
"Blink" indicates packet goes through Tx end.
FDX On Transceiver works in the full duplex mode.
Off Transceiver works in the half duplex mode.
PWR On Power is on and normal.
FX100 On Transfer rate of optical interface is 100Mbps.
TX100 On Transfer rate of electric interface is 100Mbps.
Off Rate of electric interface is 10Mbps
Product Optical Transmitting Receiving
model wavelength optical power sensitivity
(m) (dbm) (dbm)
1310/1550 -12 ~ -6 -12
1550/1310
(25km)
1310/1550 -3 ~ -5 <-31
1550/1330
km)
Transmission Fiber
distance type
(km)
25 Single
mode
40 Single
mode
