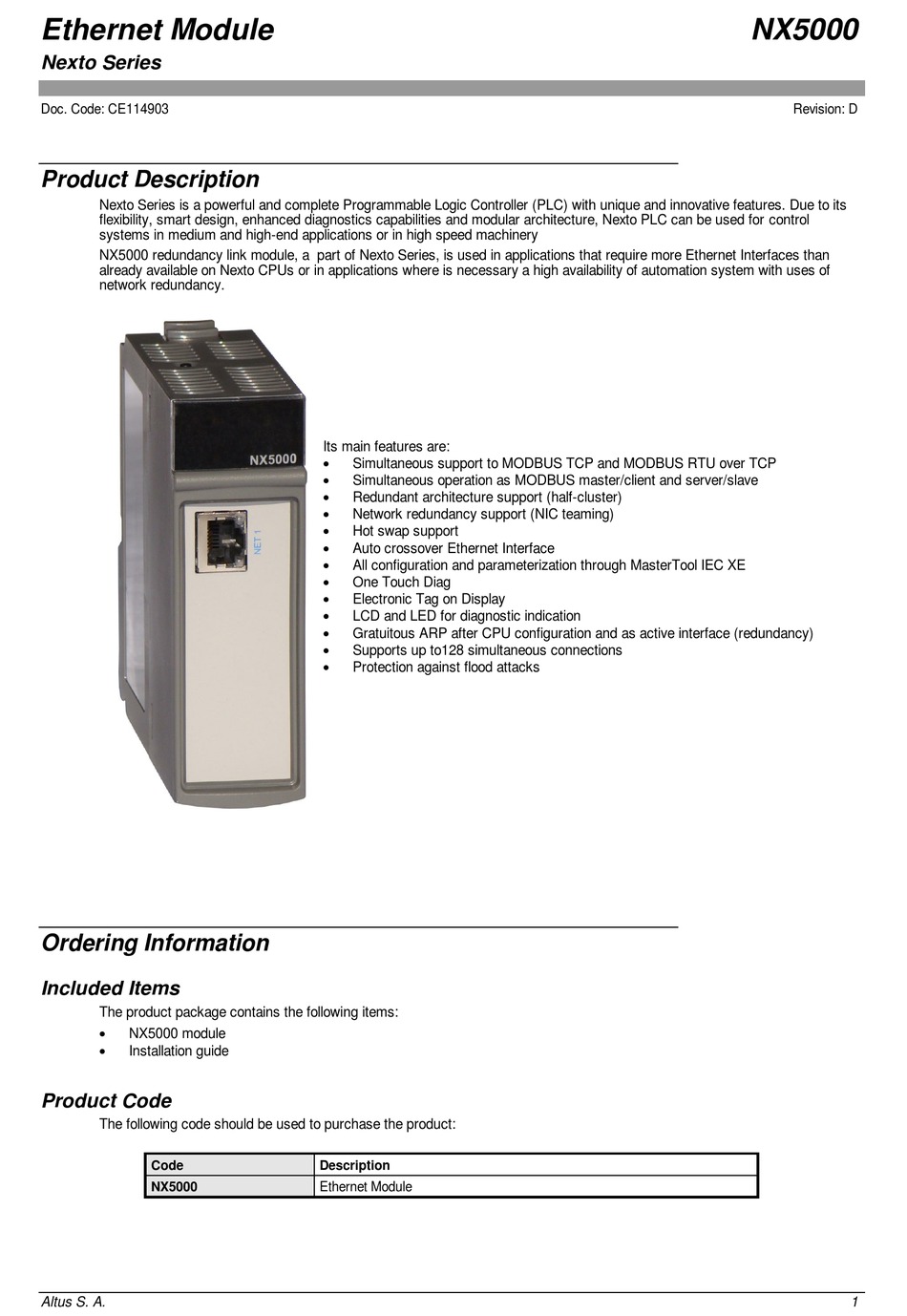

Beijer Electronics NX5000 Installation Manual

Ethernet Module
Nexto Series
Doc. Code: CE114903

Product Description

Nexto Series is a powerful and complete Programmable Logic Controller (PLC) with unique and innovative features. Due to its
flexibility, smart design, enhanced diagnostics capabilities and modular architecture, Nexto PLC can be used for control
systems in medium and high-end applications or in high speed machinery
NX5000 redundancy link module, a part of Nexto Series, is used in applications that require more Ethernet Interfaces than
already available on Nexto CPUs or in applications where is necessary a high availability of automation system with uses of
network redundancy.

Ordering Information

Included Items

The product package contains the following items:

NX5000 module

Installation guide
Product Code
The following code should be used to purchase the product:
Code
NX5000
Altus S. A.
Its main features are:

Simultaneous support to MODBUS TCP and MODBUS RTU over TCP

Simultaneous operation as MODBUS master/client and server/slave

Redundant architecture support (half-cluster)

Network redundancy support (NIC teaming)

Hot swap support

Auto crossover Ethernet Interface

All configuration and parameterization through MasterTool IEC XE

One Touch Diag

Electronic Tag on Display

LCD and LED for diagnostic indication

Gratuitous ARP after CPU configuration and as active interface (redundancy)

Supports up to128 simultaneous connections

Protection against flood attacks
Description
Ethernet Module
NX5000
Revision: D
