Dwarfcraft HAX User Manual

Hide thumbs
1
2

Advertisement

Table of Contents

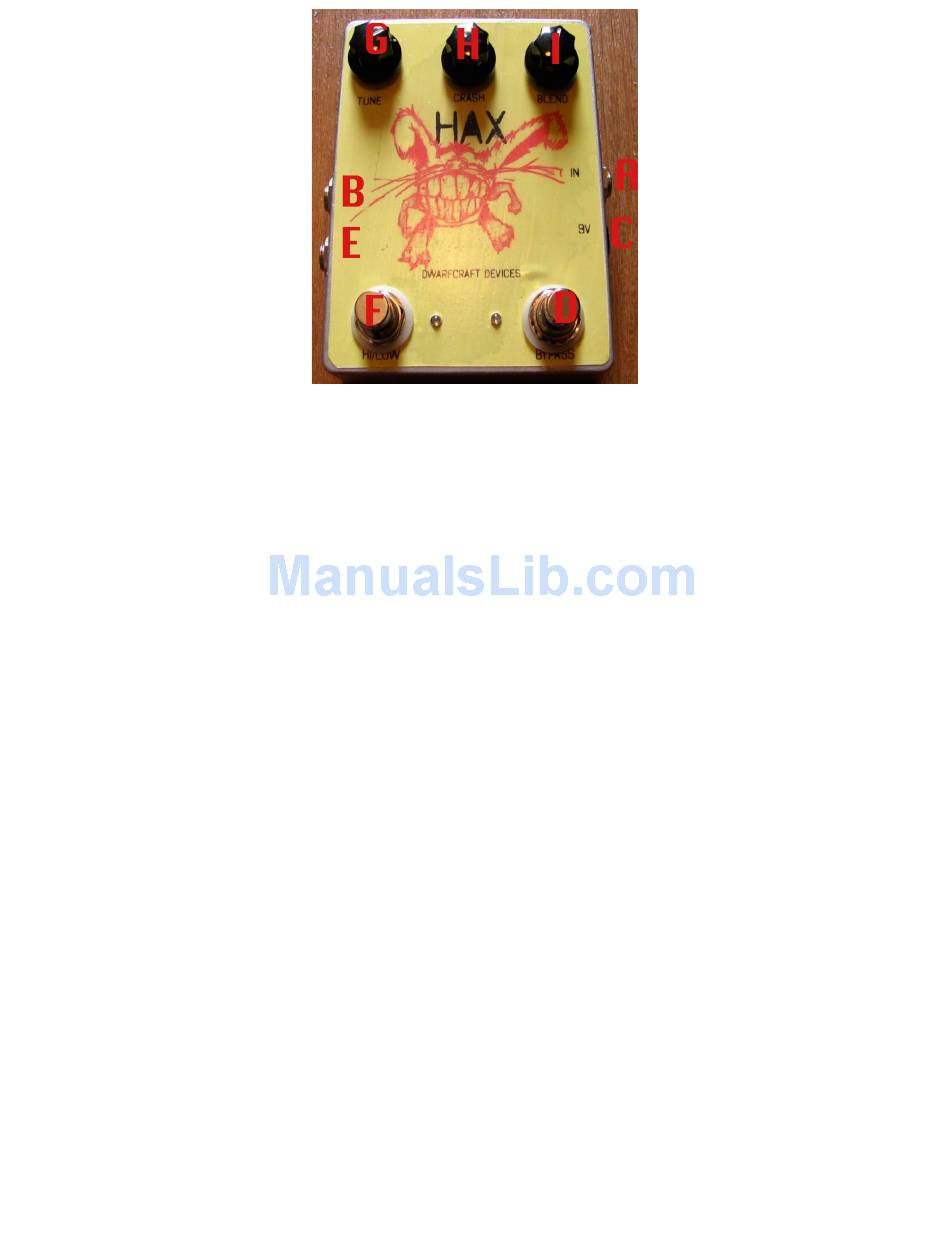

HAX!!
A:
Input - This is where you stick the 1/4" audio cable connected to your instrument.
B:
Output - This is where you stick the other cable, connected to amp or other pedals
C:
9v power - 9v DC center negative "boss style" plug
D:
Bypass - Turns the effect on and off
E:
Expression Pedal Jack - Insert Moog or equivalent expression pedal to adjust tune "G."
F:
HI/LOW - Toggles between high and low frequency range for the oscillator
G:
Tune - Tunes the oscillator
H:
Crash - Starves the circuit of power resulting in NOISES!
I:
Blend - Mixes your clean signal with the oscillator in the HAX

YOUR FIRST HAX SESSION:

1.
Connect instrument to "A"
2.
Connect power to "C"
3.
Connect "B" to amplifier or other sound reproduction device
4.
Set the Blend to 12 o'clock, Crash all the way up,and Tune at 12 o'clock
5.
Stomp "D" to engage HAX
6.
Sound your instrument and turn the Blend knob to find a suitable mix
7.
Continue to sound your instrument and turn the Tune knob both ways and familiarize
yourself with its range
8.
Return Tune to the middle, and stomp "F" to hear the Hi/Low range
9.
Once you are familiar, experiment with Crash. Turning Crash down will make the pedal
less and less controllable, and more NOISY!!
10.
If you have a suitable expression pedal, insert into"E" to tune the HAX with your foot

SHIT TO REMEMBER:

As with any high gain pedal, always keep a good distance from your amp to avoid unwanted
noise.
When adjusted to the extreme right, Crash will essentially turn the pedal off.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HAX and is the answer not in the manual?

Questions and answers

Summary of Contents for Dwarfcraft HAX

  • Page 1 Once you are familiar, experiment with Crash. Turning Crash down will make the pedal less and less controllable, and more NOISY!! If you have a suitable expression pedal, insert into“E” to tune the HAX with your foot SHIT TO REMEMBER: As with any high gain pedal, always keep a good distance from your amp to avoid unwanted noise.
  • Page 2 WARRANTY: Dwarfcraft is happy to offer a limited lifetime warranty on all of our pedals and synthesizers. Any manufacturing defects or faulty components will be taken care of at no charge to the customer, excluding the cost of shipping to our workshop. Dwarfcraft Devices reserves the right to update any unit returned for repair and to change or improve the design of the product at any time without notice.
