Summary of Contents for Car Solutions IW04VW-T

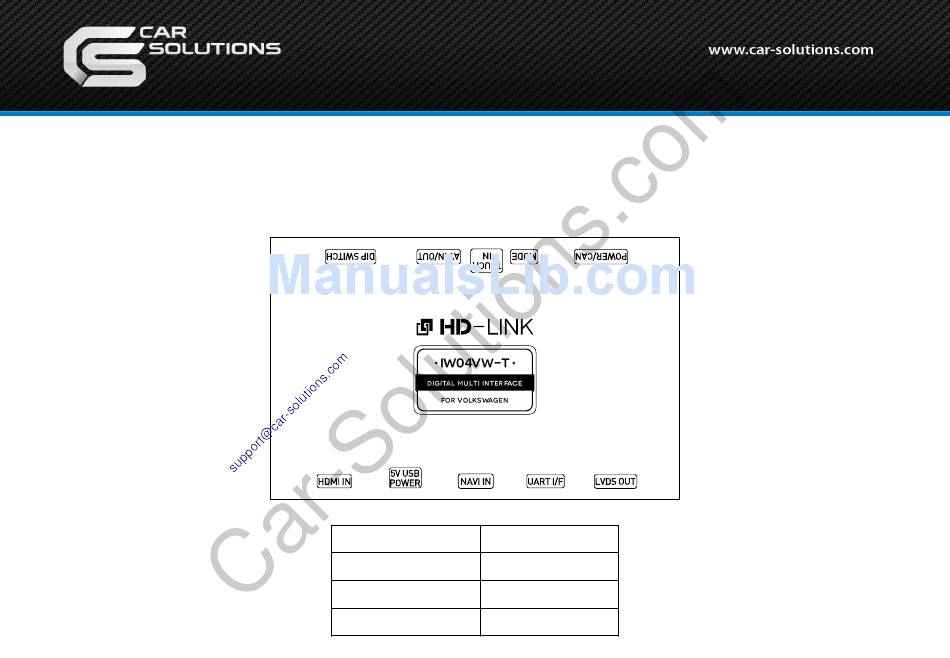

- Page 1 Release Date: 2016 - 06 – 28 Instruction Manual High-Definition Link for Volkswagen IW04VW-T Model Name IW04VW-T Latest Firmware Date 2015 - 12 - 21 Manual Version Rev. 1.1 Language English...
-
Page 2: Table Of Contents
Contents • Cautions _____________________________________________________________ 3 • Dimension & Exterior _________________________________________________ 4 • Components & Optional parts _________________________________________ 5 • Full Installation Diagram ______________________________________________ 6 • Touch board Installation Diagram (Touareg) ____________________________ 7 • HDMI Connection Diagram ____________________________________________ 8 • Navigation Connection Diagram _______________________________________ 9 •... -
Page 3: Cautions
Navigation(GPS) box_related • When you connect the power wires(B+, ACC) to the navigation(GPS) box, the ‘NAVI 12V OUT' wire supported by IW04VW-T should be spliced with an ACC wire of navigation box. • After installation is done, select an applicable navigation(GPS) box model in the 'Navigation model selection menu' of setting mode. - Page 4 Dimension Length: 91 mm Height: 22 mm Width: 142 mm ⓐ ⓑ ⓒ ⓓ ⓔ Exterior ⓐ DIP SWITCH ⓑ AV IN / OUT ⓒ TOUCH IN (Connect To Set top Device) ⓓ MODE ⓔ POWER / CAN ⓕ HDMI IN ⓖ...
- Page 5 Components Power / CAN Cable LVDS Cable LVDS PCB HDMI Cable AV IN / OUT Cable 5-pin Micro USB Cable Optional Parts Touch board Components (sold separately at the indiwork) HDMI Cable Mode Switch HDMI Extender Power Touch Cable Touch In / Out Cable 4Pin FPC (Male to Male) (For stick type HDMI device)
-
Page 6: Full Installation Diagram
MMI DATA Pin Specification Full Installation Diagram Touch board Installation Diagram Please refer to next page TOUCH BOARD ※ Optional External Devices NAVI 12V Power Output (For Navigation) Mode GND Output Switch (optional) RV-CAM Video Input IR OUT External Rear View 12V Power Output &... -
Page 7: Touch Board Installation Diagram (Touareg)
TOUCH BOARD Installation Diagram (TOUAREG) ※ 네비게이션 Connect 터치 케이블과 연결 Navigation (GPS BOX) Touch in 모니터 PCB에 연결 Connect PCB TOUCH BOARD Connect FPC Cable 순정 터치 필름과 연결 네비게이션용 12V 전원 출력 NAVI 12V Power Output (For Navigation) (NAVI 12V OUT) ※... -
Page 8: Hdmi Connection Diagram
HDMI Connection Diagram HDMI Device HDMI Device HDMI IN 5V USB NAVI IN UART I/F LVDS OUT HDMI IN 5V USB NAVI IN UART I/F LVDS OUT POWER POWER HDMI HDMI HDMI HDMI (5V-1A Power output for HDMI Device) (5V-1A Power output for HDMI Device) (Male) (Female) (HDMI Extender) -
Page 9: Navigation Connection Diagram
Navigation Connection Diagram Navigation Connection Diagram Navigation(GPS) Box Navigation(GPS) Box HDMI IN 5V USB NAVI IN UART I/F LVDS OUT HDMI IN 5V USB NAVI IN UART I/F LVDS OUT POWER POWER HDMI HDMI (USB cable connecting is for ‘N-Link’ only.) iNAVI –... -
Page 10: Compatibility Chart For Navigation(Gps) Box Models
OFF(↑): 1, 2, 3, 4 ↑ MYVI South Korea MS1400 Digital OFF(↓): 1, 2, 3 HDMI Cable ON(↑) : 4 • The ‘IW04VW-T (HD-Link)' supports navigation(GPS) box models equipped with 'Digital video output'. • It does not support the 'RGB video signals'. -
Page 11: Lvds Connection Diagram
LVDS Connection Diagram LVDS Connection HDMI IN 5V USB NAVI IN UART I/F LVDS OUT POWER Head Unit HDMI • 'Genuine(OEM) LVDS connector' should be connected to 'LVDS IN / OUT PCB'. Monitor(OEM) • ‘Provided LVDS connector' should be connected to the head unit instead to the genuine connector. -
Page 12: Body Connector Specifications
Body Connector specifications MODE TOUCH-IN AV IN / OUT DIP SWITCH POWER / CAN 1 2 3 4 Length: 20 cm Length: 100 cm Length: 150 cm Length: 150 cm BATTERY POWER INPUT RV-CAM VIDEO INPUT GND(RV-CAM VIDEO) GND INPUT RV-CAM POWER OUT GND OUTPUT(RV-CAM) GND OUTPUT... -
Page 13: Car Compatibility Chart
Production Car Models Specific Models Year Touareg 2010 ~ IW04VW-T is used in combination with Volkswagen Infotainment System. The IW04VW-T supports the Volkswagen Original screen equipped with ‘4 pin LVDS round connector’ only. Please check the specification of original LVDS connector on the... -
Page 14: Activation By Original Buttons Of (Touareg)
< OEM → AV2 > Press the button 4 times consecutively. If you visit car service center, you can System lock the all functions of IW04VW-T. Locking / Press the button 10 seconds long. It is only possible to use the OEM Unlocking functions under it is locked. -
Page 15: Dip Switch Settings
DIP Switch Settings ON: ▼ OFF:▲ No.6 No.7 No.8 No.9 No.10 Car Models 2010~ Touareg OFF(▲) OFF(▲) OFF(▲) OFF(▲) OFF(▲) (8inch Screen 800*480) ON(▼) OFF(▲) HDMI Mode Skip HDMI Mode Navigation Mode Skip Navigation Mode External Rear View Original Rear View Camera Camera External Front View... -
Page 16: Settings
Settings Button Function Operation Enter into the SETUP Press the button 5 seconds long. setting menu Back to previous CLIMATE(RETURN) Press the button short. menu Select the menu Selection Press the button short. and setting values. Move the menu- Turn the dial Move the pointer and setting pointer and adjust clockwise... -
Page 17: Hdmi Mode Settings
Settings 2. HDMI mode settings - Mode selection: HDMI ↔ NAVI - Image display = Adjust the values of brightness and contrast Red-Green-Blue colors of HDMI display. - Screen position & size = Adjust position and size of HDMI display. 3. -
Page 18: Rear View Camera Settings
Settings 4. Rear view camera settings - Parking guide lines = Adjust position of parking guide lines and select the lines ‘ON or OFF’. - Parking distance control = Adjust position of parking distance control sensors to ‘LEFT or RIGHT’ and select the PDC ‘ON or OFF’. - Image display = Adjust the values of brightness and contrast Red-Green-Blue colors of Rear view camera display. -
Page 19: Automatic Activation Function(Av1)
Settings 6. Automatic activation function(AV1) - Shift gear from reverse to drive - Shift gear from parking to drive * When you shift gear ‘from reverse to drive’ or ‘from parking to drive’, it just works automatically during the activation time you selected. 7. -
Page 20: System Settings
- Factory default = Reset all setting values to factory default setting. 9. System information - Mode name: IW04VW-T - Firmware date: 2015 - 12 - 21 (Latest firmware date) - = You can check the current firmware version date. -
Page 21: Information Of Dip Switch Settings
Settings 10. Information of Dip switch settings * You can check the current positions of dip switch settings. ex 1) ex 2) Actual DIP switch values. (→) Actual DIP switch values. (→) Appears on the setting menu. (↓) Appears on the setting menu. (↓)
