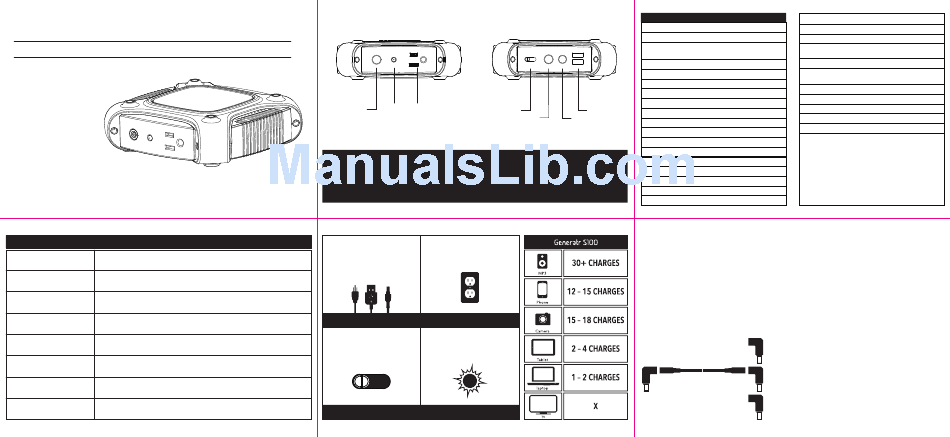

EnerPlex GENERATR S100 User Manual

User Manual

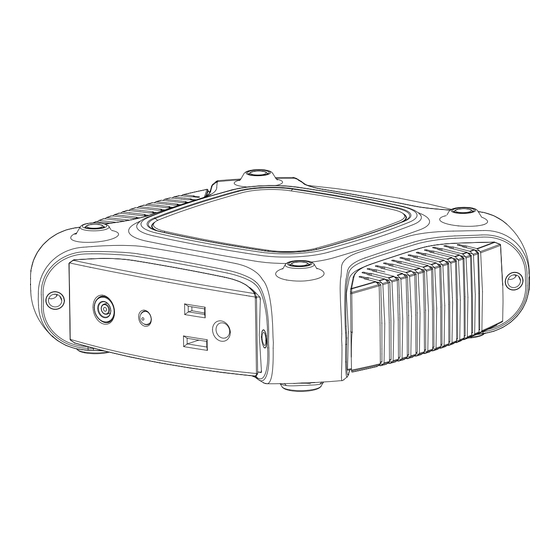

GENERATR S100
MODEL:GN6001GY
Warranty information available at goenerplex.com
If you require assistance please contact us
support@goenerplex.com
Ascent Solar Technologies Inc.
12300 Grant St. Thornton, CO 80241
Light and Beep Indicators
ON Slide the Switch to 19V/12V/AC Position (Beeps 0.3 Seconds)
OFF Slide the Switch to OFF Position (Beeps Twice)
Charging Plug-in Power (Beeps 0.3 Seconds)
LED Sequential Charging
All LED On Charging Completed
All LED Fast Blinking Overloading, UNPLUG OUTPUTS
LED Blinking Battery Remaining Display
Last LED Fast Blinking Low Battery (Beeps 3 Seconds)
16-34V/38W MAX OFF / 19V / 12V / AC
INPUT LIGHT 110V-AC OUTLET
Four-mode Switch
19V OUTPUT
Generatr S100
POWER CHARGE
Ensure your gear is compatible by Plug it in to fully charge
reviewing the specifications from AC or solar panels.
on your device and the S100.
Plug in any USB, 12V, 19V or AC device.
1 2
FLIP RECHARGE
Flip the switch to the
Recharge with EnerPlex
appropriate mode and power
solar chargers or AC wall power.
your devices.
3 4
Technical Specifications
Usage:
We recommend that you leave your EnerPlex S100 plugged
in before use. If this is not possible, charge it every 3 months.
Charging With: Approximate Charge Times
AC Wall Charger
TM
EnerPlex Commander XII
6~16 hours (1 pcs) depending on solar conditions
USB OUTPUT
3~8 hours (2 pcs) depending on solar conditions
12V OUTPUT
Charging Port (7.4 x 5.0 mm) 16~34V, 38W MAX
Outputs
USB Port(Type –A) 5V, 2.4A MAX x 2
12V Port (6.3 x 3.0mm) 12V, 10A MAX
Laptop Port (7.4 x 5.0 mm) 19V, 90W MAX
AC 110V AC 100W RATED 120W MAX
Packing List For GENERATR S100
19V/30W Input Adaptor
Output Power Cord
User Manual
Dell Tip (M9)
HP Tip (M20)
IBM Tip (M11)
19V Output Tip (M12)
M12 Tip
Internal
Battery Type Lithium-ion
Battery Capacity 94.0Wh (10.8V/8700 mAh)
Life-span More than 300 cycles
5 hours
General
Weight 2.05lbs(930g)
Dimensions 6 X 6 X 1.9inch(152.5X 152.5 X 48.5mm)
Tested and Certified FCC, CE, RoHS
Operating Usage Temp. 14 - 122F (-10 - 50°C)
Included with the Generatr S100
are laptop charging tips that can be
used with the 19V output cable to
directly charge Dell, HP, and
ThinkPad laptops. Check with the
laptop manufacturer to ensure
the intended tip is compatible with
your laptop. These tips optimize the
charging process by removing
M9 Tip for Dell
the conversion of current to 110V.
If the correct tip is not included,
the 110V AC output can be used
M20 Tip for HP
to charge laptops.
Warranty available at
M11 for Thinkpad
goenerplex.com
