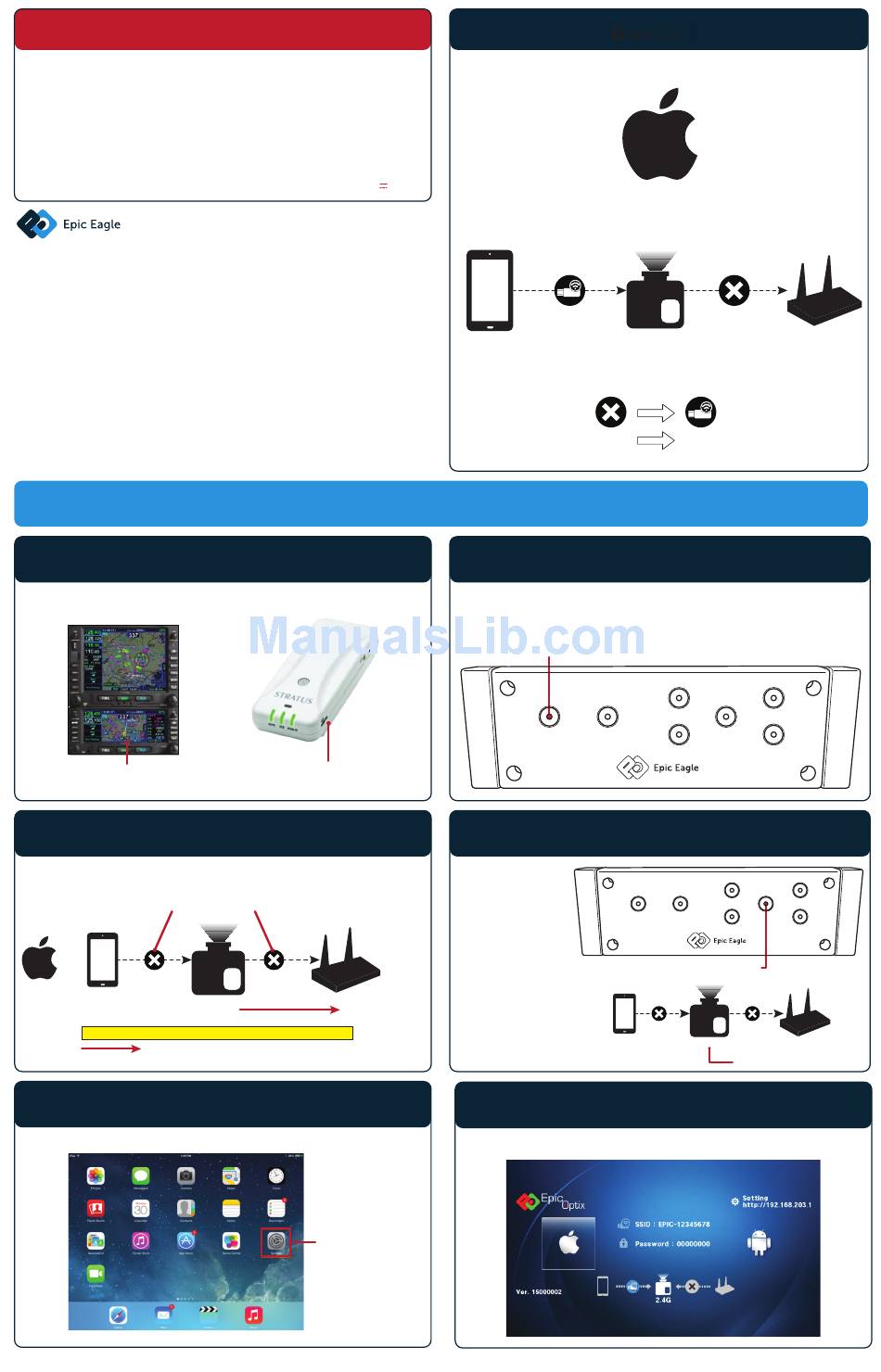

EPIC OPTIX Epic Eagle Quick Start Manual

WARNING!
We advise users to store the Epic Eagle HUD in an environment away
from direct sunlight when not in use or for extended periods of time.
When power is applied to the HUD, a cooling fan is activated. The
eration of the fan enables the HUD to operate even in extreme heat from
direct sunlight. When not powered, the fan does not run and it should be
treated with the same care as you would any other consumer electronics
device. Post flight, we recommend operators should take it off the
glareshield and place back into the storage bag. We strongly recommend
not leaving in a hot aircraft cabin for extended periods of time.
Note : Requires specific 12V-only power supply! (Rated : 12V 1.6A)
Epic Eagle 1
Quick Start Guide
For iOS Devices to Nav/GPS/ADS-B Device
Class B Digital Device Note: This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designated to provide
reasonable protection against harmful interference in a residential installation. This equipment
generates, used and can radiate radio frequency energy and, if not installed and used in accordance
with the instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by turning the
equipment on and off, the user is encouraged to try to correct the interference by one or more of the
following measures: reorient or relocate the receiving antenna; increase the separation from that to
which the receiver is connected; consult the dealer or an experienced radio/TV technician for help.
Note: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) this device may not cause harmful interference, and (2) this device must accept any
intereference received, including interference that may cause undesired operation.
Step 1
1. Power on your Nav/GPS/ADS-B device.
Avidyne ADS-B Receiver
Step 3
3. System is initialized when you see below:
a. Connection status is "OFF"
b. Yellow bar appears from left to right
Step 5
5. Tap on "Settings" on your iOS device.
iOS Device
For additional questions and information please visit our website: www.epicoptix.com/eagle
OPERATING INSTRUCTIONS
Stratus ADS-B Receiver
c. 2.4G appears
2.4G
Settings
op-
iOS Device
Connection
Status
(iOS device to HUD)
Connection Status "OFF"
Step 2
2. Power on HUD
Press HUD "POWER" Button
POWER
Step 4
4. If necessary,
switch from 5G
to 2.4G with a
short press of
the "OK"
button*
*This step is crucial
because Nav/GPS/ADS-B
devices operate at 2.4G,
which is the default.
Step 6
6. Tap "WiFi" and choose the Epic device in the "WiFi" network.
Icon Guide
iOS Device
HUD
(Head-Up Display)
Connection
Status
(HUD to WiFi hotspot)
Connection Status "ON"
LEFT
RIGHT
MENU OK
LEFT
RIGHT
POWER MENU
a. Short press "OK" button
2.4G
b. 2.4G will appear
Epic Optix All Rights Reserved 2017 ©
Network
(Wi-Fi)
UP
DOWN
UP
DOWN
OK
