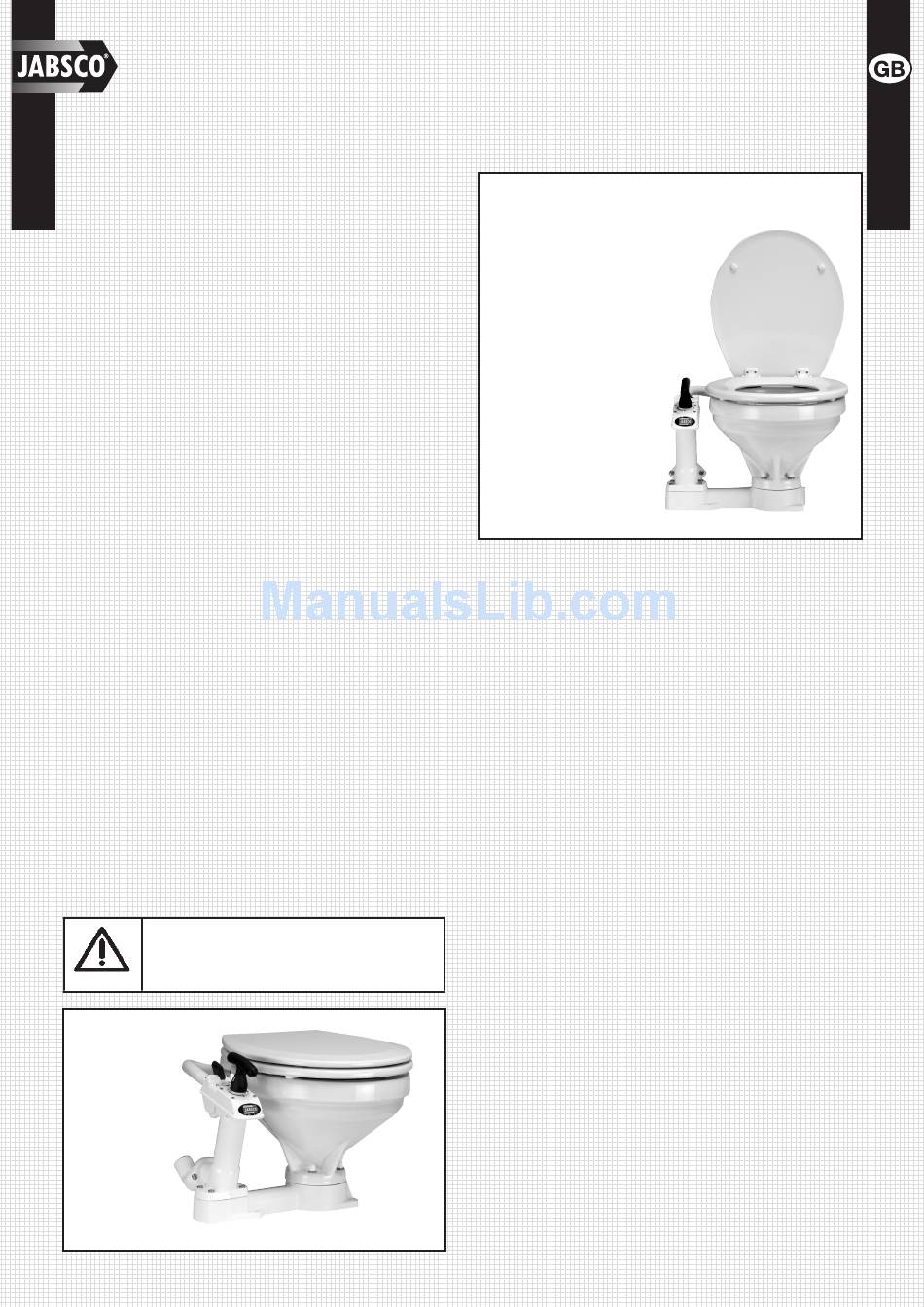

JABSCO Twist n Lock Manual

Twist 'n' Lock
Manual Toilets
FEATURES
Design
• Twist 'n' lock action safety handle guards against flooding
and waste backflow by locking the waste outlet valve
shut.
• Reversible pump mounting allows re-assembly for left
hand operation by installer.
• Powerful self-priming, double-acting piston pump.
• Strong swirl action for efficient flushing.
• Crevice free contours and skirted base for added
cleanliness and hygiene.
• Contoured handle and conveniently positioned flush
control lever for ease of use.
• Angled pump housing and long stroke for easier
pumping.
• Spring assisted top valve closure for easier priming.
• Automatic vacuum breaker operated by flush control
lever for easier bowl emptying.
1 /2") bore waste path minimises
• Constant 38mm (1
blockages.
• Aortic joker valve combines full 38mm (1
automatic back-flow prevention.
• Multi-angle discharge elbow for ease of installation.
• Accessible mounting points for faster installation.
• All fastenings face front or top for superbly simple
servicing without need for special tools.
• Renewable external seal housing for quick, clean
replacement of seal and piston rod guide.
• Positively located gaskets ensure correct re-assembly.
• Dual function base plug combines winter drain point with
easy cleaning access.
APPLICATIONS
You may install JABSCO Regular and Compact bowl
manually operated marine toilets in both power and sailing
craft, either above or below the waterline, for use on sea,
river, lake or canal.
Your installation may discharge the waste either overboard
(provided that your national and local regulations allow this),
or into a treatment system or into an on-board holding tank
(U.S.C.G. Marine Sanitation Devices Type I, II and III).
JABSCO manual
specifically for marine use. Consult ITT
Industries Jabsco for advice about possible
non-marine applications.
Optional re-assembly by
installer for left hand
operation.
1 /2") bore with
toilets are designed
1
29090 & 29120
Model:
29120-3000

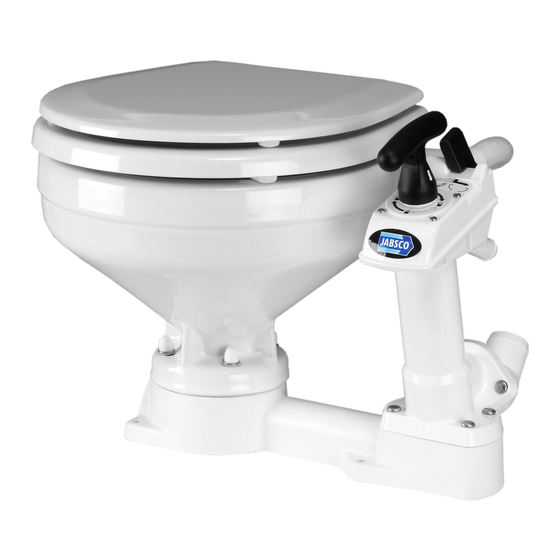

Manual Toilet,
Regular Bowl
MATERIALS
• Luxury wooden seat and cover with tough baked enamel
coating.
• Hygienic white ceramic bowl for ease of cleaning.
• Pump and base moulded in ABS or polypropylene with
selected parts in acetal resin, fitted with 316 passivated
stainless steel fastenings, brass weights and neoprene
seals and gaskets.
Performance
• Flushing pump self-primes from dry up to 1 metre (3ft)
below the base.
• Waste pump discharges up to 3 metres (9ft) above the
base.
Dimensions
• See the Dimensional Drawing on the back page.
Installation Instructions
YOUR TOILET is just one part of a system. Correct
installation of the whole system is essential if you want the
toilet to perform properly, operate reliably and safely, and give
satisfactory length of life. The toilet is delivered assembled
for right-handed operation. If you wish, both Regular and
Compact Bowl models may be re-assembled with the pump
on the left hand side. The seat and lid is delivered boxed and
unfitted for its protection.
NB: Key numbers, e.g. ('Key 31'), are references to the
exploded view diagram on the back page.
1. Re-assembly for left hand use
If you wish to change the pump mounting from right to left
hand, do so before installing the toilet.
• Pull off the hose (key 4) that runs from the pump to the
bowl.
• Remove the 4 screws (key 31) that secure the pump
assembly to the base.
• Lift off the pump assembly and leave the base valve
gasket (key 16) on its 3 locating pegs.
