D-Link DSL-2790U Quick Installation Manual

QUICK INSTALLATION GUIDE

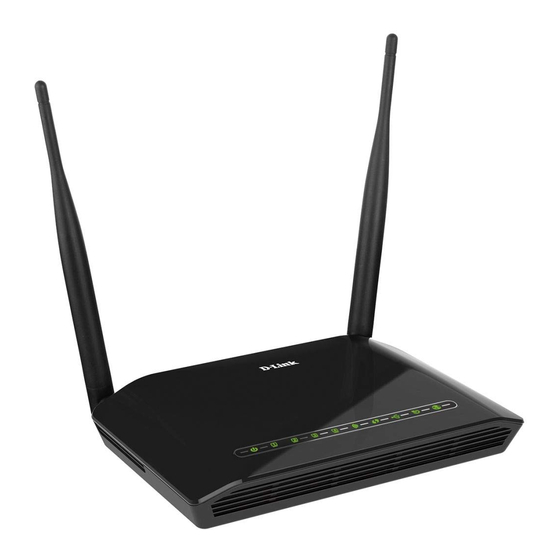

Wireless N300
ADSL Modem Router
DSL-2790U
Package Contents
Wireless N300 ADSL2+ Modem Router (DSL-2790U)
Power Adapter
Ethernet Cable
xDSL Microfilter/Splitter & Cable
Quick Install Guide
If any of the above items are missing, please contact your reseller/retailer.

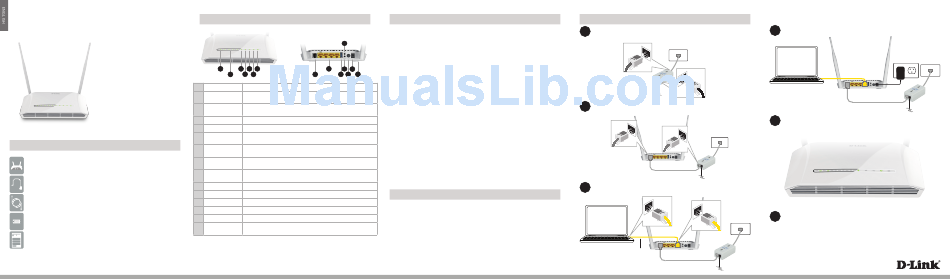

Hardware Overview
12
1 3 5 7 9
11 14
2 4 6 8 10 13 15
1
Power LED A solid green light indicates a proper connection to the power supply.
A solid green light indicates a connection to a device. The light will
2 LAN (1~4) LEDs
blink during data transmission.
A solid green light indicates that the Wi-Fi is ready. The light will blink
3 Wi-Fi LED
during data transmission.
4
WPS LED The light will blink during the WPS process.
5
USB LED A solid green light indicates a connection to a USB device.
A solid green light indicates a proper connection to the ADSL enabled
6 ADSL LED
telephone line.
A solid green light indicates a proper connection to your broadband
7 Internet LED
service. The light will blink during data transmission.
Connect to an ADSL enabled telephone line and the supplied
8 xDSL Port
microfilter/splitter.
Connect Ethernet devices such as computers, switches, and game
9 LAN (1~4) Ports
consoles.
10
USB Port Connect USB devices such as printers, storage or 4G/LTE adapters.
11
Wi-Fi Button Press to enable/disable Wi-Fi network
12
WPS Button Press to enable WPS
13 Power Button Press to turn on or off the device.
14 Power Port Connect the supplied power adapter.
Press to reset the device to factory default settings, located on the
15 Reset Button
under side of the device near the serial number sticker.
Minimum Requirements
Internet Requirements:
• An activated ADSL telephone line and account with an Internet provider
or
• An active NBN/UFB connection and account with an Internet provider
Web-based Configuration Requirements:
Device with the following:
• An installed Ethernet adapter or wireless adapter
Supported Browsers:
• Internet Explorer 7 or higher
• Safari 4 or higher
• Chrome
• Firefox
mydlink™ Requirements (optional):
• iPhone/iPad/iPod Touch (iOS 3.0 or higher)
• Android device (1.6 or higher)
• Web Browser Requirements:
• Internet Explorer 7 or higher
• Safari 5 or higher
• Chrome
• Firefox
If you experience issues configuring this Modem Router, try performing a hard reset
by using an unfolded paperclip to press and hold the reset button for 10 seconds
while the Modem Router is powered on.
Before you Start
• Internet Provider Account Details - If you are using an Australian or New
Zealand ADSL connection, you will need your user name and password. If you do
not have this information, contact your Internet provider.
Do not proceed until you have this information.
Connect your Modem Router
1
Connect your existing Phone cable from the telephone outlet to the LINE
port on the Microfilter and your telephone handset into the PHONE port.
LINE Telephone Outlet
PHONE
Microfilter
Connect the Phone cable from the DSL port on the Microfilter to the DSL
2
port of the modem router.
DSL-2790U
Microfilter
Phone Cable
3 Connect the Ethernet cable from the LAN port of the modem router to the
Ethernet port on your computer.
Computer
Ethernet Cable
DSL-2790U
Plug the power adapter into your modem router and connect to an available
4
power outlet.
Power Adapter
Computer
DSL-2790U
After the modem router has powered up, verify that the Power and ADSL
5
LEDs are both lit.
6
Continue with the Configuration section on the other side of this document.
