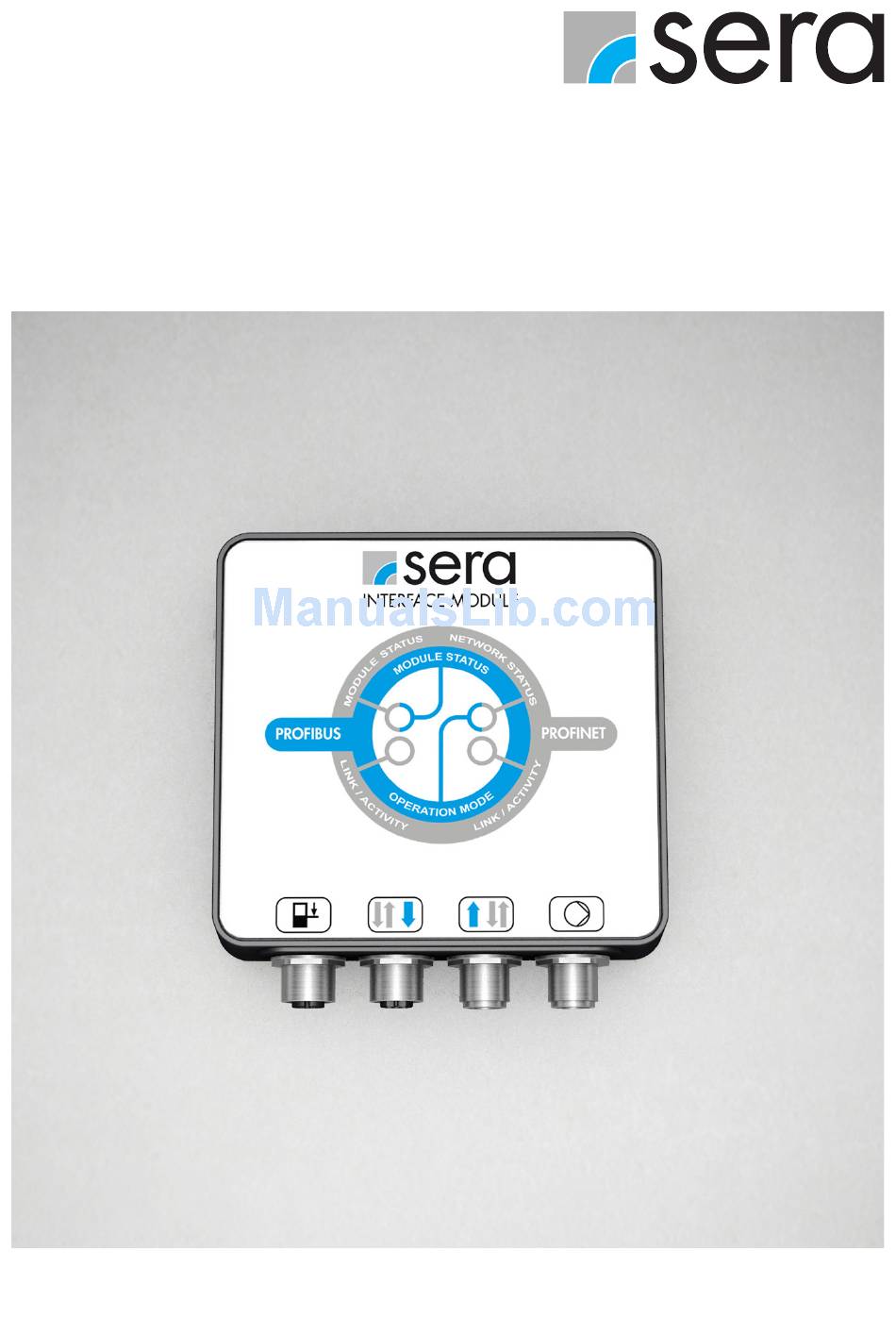

TECHNICAL MANUAL
PROFIBUS
INTERFACE MODULE
EN
TRANSLATION OF ORIGINAL TECHNICAL MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PROFIBUS and is the answer not in the manual?

Questions and answers

Summary of Contents for Sera PROFIBUS

  • Page 1 TECHNICAL MANUAL PROFIBUS INTERFACE MODULE TRANSLATION OF ORIGINAL TECHNICAL MANUAL...
  • Page 2 The non-observance of these safety instructions can lead to material damages and personal injuries. Quality notes The sera quality management and quality assurance system is certified in accordance with DIN EN ISO 9001:2015. The sera product complies with the applicable safety requirements and accident prevention regulations.
  • Page 3: Table Of Contents

    Operation window ..............................13 Operating Modes ..............................14 Modules ................................. 14 Explanation of the modules ............................14 PROFIBUS acyclic data exchange ..........................14 Modules / Input ............................... 15 Modules / Output ..............................16 Settings (parameters) ..............................16 Data from module to the master ..........................23 MESSAGE ..........................
  • Page 4: Safety Instructions

    Chapter „Intended use“ of these operating instructions. Intended use The sera product is only to be deployed according to the intended purpose stated in the product description and the acceptance test certificate. If the product is to be used for other applications, then the suitability of the product for the new operating conditions...
  • Page 5: Transport / Storage

    TRANSPORT / STORAGE General sera products are checked for perfect condition and function previous to shipment. Check for transport damage immediately after arrival of goods. If damage is found, this is to be reported immediately to the responsible carrier and the manufacturer.
  • Page 6: Product Description

    NOTE The sera dosing pump PROFIBUS option is integrated in the network via the device master data (DMD) file which must be integrated in the development environment. This file contains the characteristics of the pump and information for the com- munication capability.
  • Page 7: Technical Data

    TECHNICAL DATA TECHNICAL DATA Electrical data PROFIBUS DP-V1 (slave) PROFIBUS interface GSD File sera sera0FA2.gsd 9.6/19.2/45.45/93.75/187.5/500 kbit/s Transmission rate 1.5/3/6/12 Mbit/s Automatic baud rate detection Supply voltage 24 V DC Max. power consumption Ambient conditions Max. height above sea level 1000 m Max.
  • Page 8: Electrical Connections

    Interface Assignment Function Level Pre-alarm and dry run- 8-pole connection ning protection Connection to the PROFIBUS 5-pole PROFIBUS network or Output * terminating resistor (5) PROFIBUS Connection to the 5-pole Input * PROFIBUS network Data transfer between Pump 8-pole pump and INTERFACE...
  • Page 9 These must never be used for any other functions as this can result in destruction of the device. Pin 2 and Pin 4 carry the data of the PROFIBUS communication. These must never be reversed otherwise the communicati- on is disrupted. Pin 5 is the shield that is not internally connected to the module.
  • Page 10: Installation Example / Bus Diagram

    The minimum cable length between the individual nodes must be at least 1 m for transmission rates of more than 1.5 Mbit/s. It must be ensured for the cable installation that the PROFIBUS cable does not run parallel with other live cables.
  • Page 11: Stub Cables

    33 m 93.75 kbit/s 100 m 19.2 kbit/s 500 m * Total of all stub cables within a segment for PROFIBUS cable of 30 pF/m The maximum cable length depends on the transmission Transmission rate Maximum cable length rate. For transmission rates greater than 1.5 Mbit/s, a >...
  • Page 12: Commissioning

    COMMISSIONING Disconnect voltage. ■ Connect INTERFACE MODULE (1) to the sera pump (2) (see „Electrical Connections). Observe earthing. ■ Apply voltage. INTERFACE ■ Pump starts. ■ Manual Module status (3) lights green. ■ 100.0 % freq. The “INTERFACE” operating mode must be enabled and can be selected for operating ■...
  • Page 13: Operation

    On-line, ready flashes flashes once f Parametrisation error or a short time flashes twice PROFIBUS configuration error for a short time not initialised Operation window INTERFACE MODULE is initialised. INTERFACE No BUS/NETWORK connection is established or there is no data exchange.
  • Page 14: Operating Modes

    If fewer data than are available are requested, the module only returns data of the requested data quantity. The module does not check the specified data length for acyclic requests. If a greater data quantity than available is specified in PROFIBUS or PROFINET, the data cannot be accessed and the device retains the last valid data.
  • Page 15: Modules / Input

    Setting of the system time of the pump. CALIBRATION_CONTROL The litre capacity of the pump can be calibrated with this module. FLASH_CONTROL Settings for the SD card. DIACHANGE_CONTROL Module for performing a diaphragm change. Analogous to the DIACHANGE_STATE status request. www.sera-web.com...
  • Page 16: Modules / Output

    Display of the error signals of the pump. Active bit means error is present. Settings (parameters) The module is sent using the PROFIBUS address 126. Only the „SSA“ function is activated PARAMETER with this address and a new address can be allocated via the network.
  • Page 17 0.000 l - max. litres/hour Float 3 Pulse Upper Flow not calibrated: 0.0 - 100.0% calibrated: 0.000 l - max. litres/hour Word 4 Pulse factor / pulse limit The value means pulse limit if proportional pulse mode is selected. 0-999 www.sera-web.com...
  • Page 18 Input function dule. Otherwise, the functionality on delivery is applicable. 0000 OFF 0001 External stop 0010 Venting 0011 Impulse 0100 Analogue changeover 0101 Recipe 0110 Start Batch NC contact / NO contact www.sera-web.com...
  • Page 19 0000 OFF 0001 Operational 0010 Pump active 0011 Stroke signal 0100 Pre-alarm level 0101 Dry run 0110 Diaphragm rupture 0111 No flow 1000 Group signal 1001 Group fault 1010 Internal error 1011 Batch finished NC contact / NO contact www.sera-web.com...
  • Page 20 Analogue output percentage value 200= 20.0 mA 155= 15.5 mA 0-100% Byte 4 Analogue output current 2 0-200 Byte 5 Analogue output percentage value 0-100% MBE_CONTROL Byte 1 Bit definition: MBE signal NC contact NO contact Byte 2 Sensitivity 0-100% www.sera-web.com...
  • Page 21 Start of the venting only for external control Control External Interval Automatic Byte 2 Interval time 15-100 minutes Word 3 Venting time 10-300 seconds LEVEL_CONTROL Byte 1 Bit definition: Pre-alarm NC contact NO contact Dry run NC contact NO contact www.sera-web.com...
  • Page 22 Bit definition: The change is started with the change of Bit 0 CONTROL from 0 to 1. The change is completed with the Start of the diaphragm ch- change of Bit 1 from 0 to 1. ange Change completed www.sera-web.com...
  • Page 23: Data From Module To The Master

    Pump OFF/ON Stroke signal Group signal present Group fault present Acknowledgement of error message performed Diaphragm change active Pump calibrated No / Yes FLOW_STATE Float 1 Current delivery rate not calibrated: 0.0 - 100.0% calibrated: 0.000 l - max. litres/hour www.sera-web.com...
  • Page 24 Float 3 Batch speed Specification according to BATCH_CONTROL Float 4 Remaining batch quantity 0.001 l - max. batch volume PULSE_STATE Byte 1 Bit definition: Pulse Pulse memory ON/OFF Pulse mode Divisor Multiplier Proportional Word 1 Pulse Memory Registered pulses 0-999 www.sera-web.com...
  • Page 25 0000 OFF 0001 External stop 0010 Venting 0011 Pulse 0100 Analogue 1 0101 Recipe 0110 Start Batch 0111 Batch quantity 1000 Batch output NC contact / NO contact set / not set 5. Bit not applicable for analogue function. www.sera-web.com...
  • Page 26 0010 Pump active 0011 Stroke signal 0100 Pre-alarm level 0101 Dry run 0110 Diaphragm rupture 0111 No flow 1000 Group signal 1001 Group fault 1010 Internal error 1011 Batch finished NC contact / NO contact set / not set www.sera-web.com...
  • Page 27 PUMP_INFO_STATE Float 1 MAX_FLOW Maximum delivery rate in l/h Word 1 MAX_STROKE Maximum stroke frequency in strokes/minute Word 1 SERA-CODE 0-65535 Long 1 SERIAL_NUMBER 0-999999 Byte 1 vM01.xxx Byte 1 The last three digits of the hardware and soft- ware versions are transmitted.
  • Page 28 Bit 20 Analogue signal < 4 mA Bit 21 Analogue signal > 25mA Bit 22 Reserved Bit 23 Reserved Bit 24 Reserved Bit 25 Reserved Bit 26 Reserved Bit 27 Reserved Bit 28 Reserved Bit 29 Reserved Bit 30 Reserved Bit 31 Reserved www.sera-web.com...
  • Page 29: Message

    Diagnostics signals The sera INTERFACE MODULE has two diagnostics messages that are output in the network-specific protocol (PROFIBUS / PRO- FINET). A present message is indicated by flashing once for a short time of the Module Status LED. The messages can be read in plain text using the diagnostics function of the Engineering tool.
  • Page 30: Maintenance / Decommissioning / Disposal

    Take device out of operation. ■ ATTENTION Only let the decommissioning be performed by authorised and qualified personnel. Disposal Dispose of correctly and comply with the currently applicable local regulations after shutdown and dismantling. ATTENTION Dispose of electronics separately! www.sera-web.com...
