Hyperion FR632 Manual

I.
Specification:
1 Receiving frequency:
2 Operating Voltage :
3 Supply current :
4 Video Output Level:
5 Audio Output Level:
6 TV System:
7 Wireless Receiver Sensitivity:
8 Antenna Connector:
9 Weight:
10 Dimensions (L x W x H):
11 Operating Temperature:
Operating Frequency Table
CH
CH 1 CH 2
Group
A
5865MHz 5845MHz
b
5733MHz 5752MHz
C
5705MHz 5685MHz
d
5740MHz 5760MHz
II. Features:
32 Channel
Automatic Switching Built-in Dual Receiver Automatically for best reception
Dual buffered AV outputs
Unique channel search function
Large input voltage range, Very low current consumption
Not affect by 2.4GHz R/C Radios
LCD display, high brightness, very intuitive work status
III. Operation and Figures
Display
FR632
5.8GHz 32CH Diversity Receiver
ISM 5.6GHz-5.95GHz 32 CH
+6.0V~+28.0V
<130mA/12V DC
1V±0.2Vp-p/75Ω
0.5 ~ 2.0Vp-p/10KΩ
PAL/NTSC/SECAM (AUTO)
<-92dBm(15dBuV)
SMA Connector
92g
78x68x15mm
-10℃ ~ +85 ℃
CH 3 CH 4 CH 5
5825MHz 5805MHz 5785MHz
5771MHz 5790MHz 5809MHz
5665MHz 5645MHz 5885MHz
5780MHz 5800MHz 5820MHz

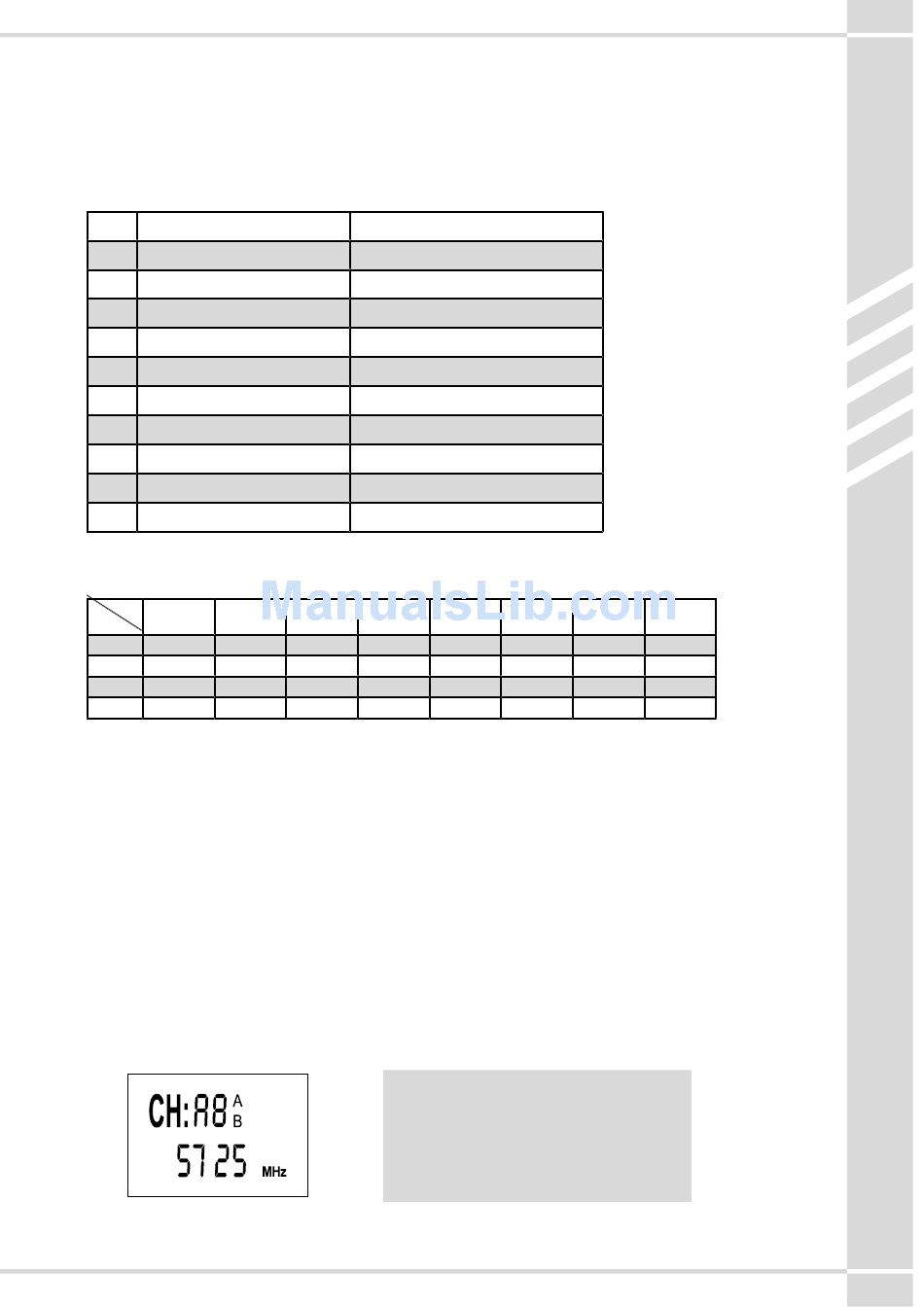

Display content description ：
A: RFA; B: RF B (Show A or B)
A8 : Group and Chaneel
5725 MHz : Frequency
CH 6 CH 7 CH 8
5765MHz 5745MHz 5725MHz
5828MHz 5847MHz 5866MHz
5905MHz 5925MHz 5945MHz
5840MHz 5860MHz 5880MHz
