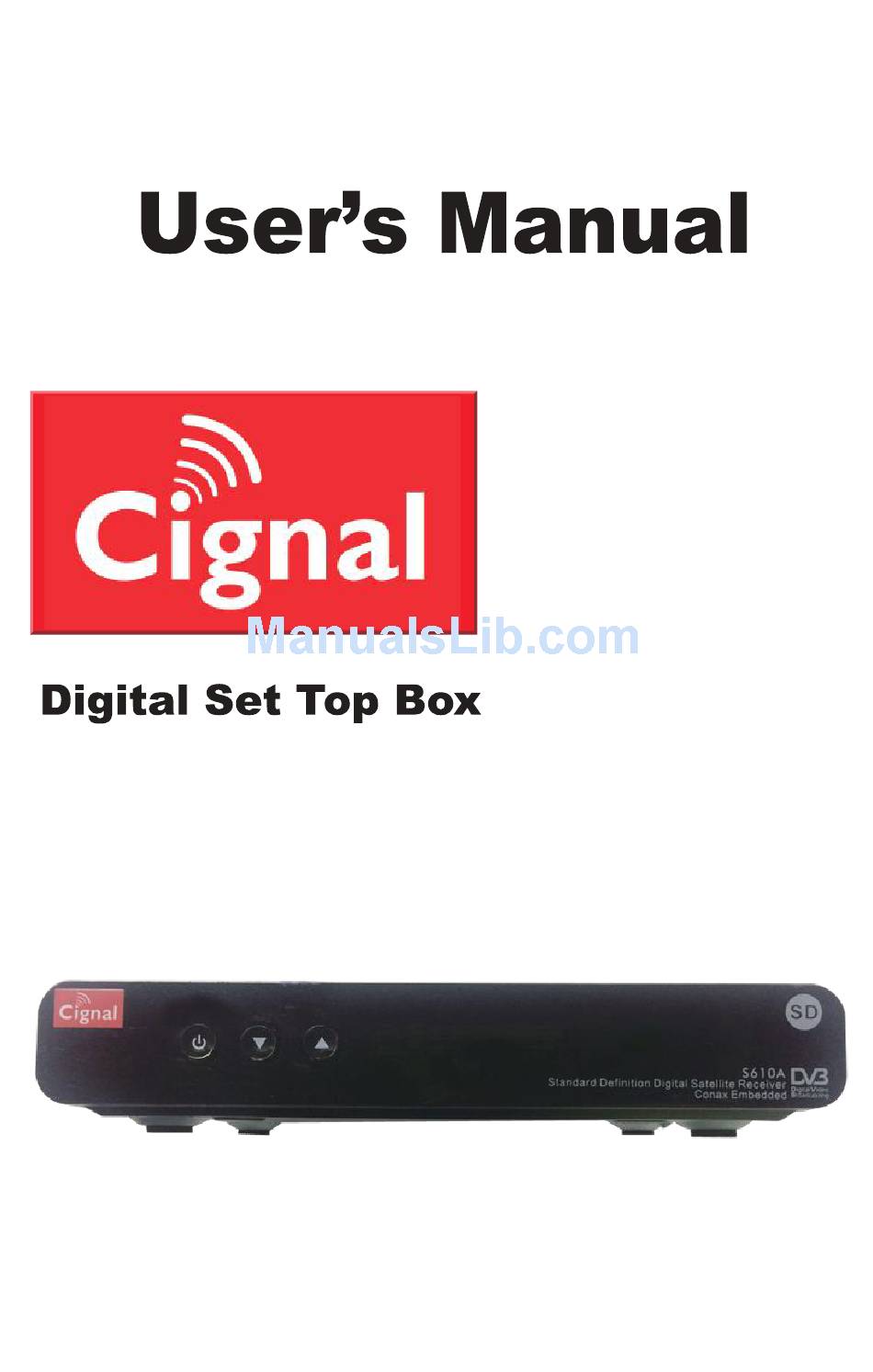

- Page 1 S610A...
-
Page 2: Table Of Contents
Contents Safety Instructions Product Overview Front View Rear View Remote Control Unit (RCU) Set Top Box Connections Basic Settings Basic Functions Electronic Program Guide (EPG) Channel List Channel Bar Bookings Troubleshooting... -
Page 3: Safety Instructions
Safety Instruction To avoid danger of electric shock or Refrain from spilling any liquids on the damage to the receiver, do not remove receiver box to avoid damaging the the cover of the receiver box. Any equipment. In the event this happens, kindly unplug box from power source. -

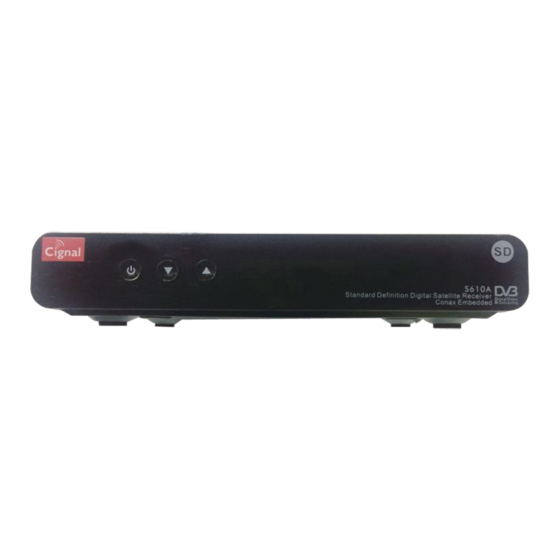

Page 4: Product Overview
Product Overview 1. On/Standby : Switch the STB to On or Standby. 2. CH ▼/▲ : In normal TV mode, these changes the channels. When in the Main Menu, these will move the selector. -
Page 5: Rear View
Product Overview 1. LNB IN : Connect this to a dish antenna to receive the digital broadcast. 2. USB : Used for Set Top Box software updates. 3. RCA Video Connector : Connect this to the composite video input of the TV. 4. -
Page 6: Remote Control Unit (Rcu)
Remote Control Unit (RCU) K ey Fu n c t i o n Switch ON/OFF the STB Channel up/down CH+,CH- VOL+,VOL- Volume up/down Channel up/down or move cursor up/down Volume up/down or move cursor left/right Enter or select item, or open channel list SETUP Access the Home menu MENU... -
Page 7: Set Top Box Connections
Set Top Box Connections DO NOT PLUG the STB into the main power outlet until all the other cables are connected to the STB. Before connecting the cables, you should first connect the LNB IN connector of the STB to the cables from the satellite. DISH to LNB IN... -
Page 8: Basic Settings
Basic Settings For newly installed STB, check that all the cables are connected to the STB and perform the setup procedure. When using the STB for the first time, ensure that all cables are connected, as per the instructions on page 7, and perform the following setup procedure. WARNING Press MENU button to save previously input data and exit the basic settings. - Page 9 Basic Settings 2. The following LNB Setup menu appears after the welcome screen. Use the ◄ / ► buttons to select the Input Source type and press OK on the RCU. 3. Select the required Transporter and press OK on the RCU.
- Page 10 Basic Settings 4. The Signal lock screen displays and the STB will scan all available service channels. All your TV and radio channels are available for selection in the EPG.
-
Page 11: Basic Functions
Basic Functions Electronic Program Guide (EPG) 1. The EPG shows program information on each channel by date and time. 2. To activate the EPG, go to MENU > GUIDE or Press EPG key on the RCU. 3. Channels on display will have their channel numbers & channels are shown at a time. -
Page 12: Channel List
Basic Functions Channel List 1. To access the Channel List, press MENU then go to LIVE TV. The list of available channels with their respective channel number assignment and channel name are displayed. 2. To see the program synopsis or book a program reminder, select a channel then a prografrom the list and press OK. -
Page 13: Channel Bar
Basic Functions Channel Bar 1. The Channel Bar displays basic information about the channel and its programsl. The Channel Bar is displayed when zapping or by pressing the INFO button while viewing a channel. 2. To access more information about the channel or program, press the INFO button again. -
Page 14: Bookings
Basic Functions Bookings The Set Top Box allows you to manage channel-related events using the Timer Event functions. You can set an alert to inform you when your favorite shows are being broadcasted and turn the STB on or off depending on the schedules that have been setup. -
Page 15: Troubleshooting
Troubleshooting (RCU)
