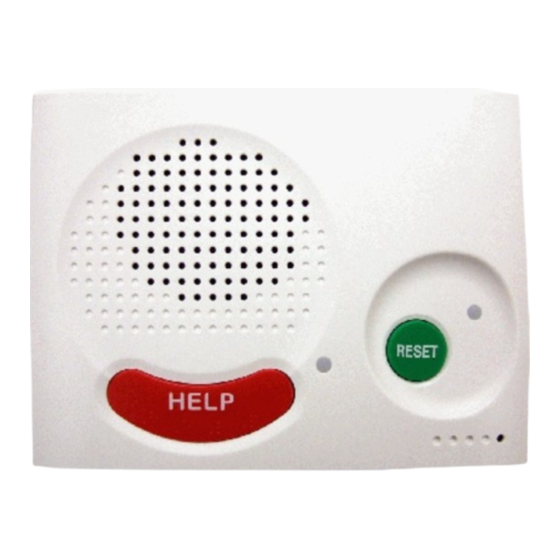

Climax CTC-1041RV User Manual
  1. Manuals
  2. Brands
  3. Climax Manuals
  4. Conference System
  5. CTC-1041RV
  6. User manual

Climax CTC-1041RV User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

c
August 12, 2013

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CTC-1041RV and is the answer not in the manual?

Questions and answers

Summary of Contents for Climax CTC-1041RV

  • Page 1 August 12, 2013...

  • Page 2: Table Of Contents

    4.1.1. Auto-Answer Incoming Phone Calls __________________________________________________ 20 4.1.2. Non-Emergency Speech Call ________________________________________________________ 21 4.1.3. AC Power Check Up ________________________________________________________________ 21 4.1.4. CTC-1041RV Low Battery ___________________________________________________________ 21 4.1.5. CTC-1041RV Battery Disconnection _________________________________________________ 21 4.1.6. Devices Low Battery ________________________________________________________________ 22 4.1.7. Automatic Check-in Report = Periodic Test Call _______________________________________ 22 4.1.8.
  • Page 3 5. Appendix __________________________________________________________________ 29 5.1. CID Event code ________________________________________________________________ 29 5.2. Tunstall Event code ____________________________________________________________ 30 5.3. Scancom Event code ___________________________________________________________ 30 5.4. CTC-1041RV Programming Command Table _____________________________________ 32...

  • Page 4: Application Overview

    — DC 12V 1A power adapter — Press once in normal mode to reset connection mobility timer (see command 44) — Before CTC-1041RV dials out for Battery Switch alarm reporting, press once to cancel the alarm reporting Local Programming Telephone Unit Input —...

  • Page 5: The Power Supply

    AC voltage rating to prevent component damage. A DC 12V output and 1A adapter is generally used to power CTC-1041RV. In addition to the adapter, there is a rechargeable battery inside CTC-1041RV, which serves as a back-up in case of a power failure.

  • Page 6: Line Capture

    (e.g. on the table). Ensure TEL 3 the Control Panel is fitted at approximately chest height where the buttons, microphone, CTC-1041RV has the Line Capture function and speaker can be easily accessed and over TEL #2 and TEL #3, but not TEL #1. operated.

  • Page 7: Learn-In The Devices

    Command 94 is designed to learn in system. The combined numbers of DECT the following sensors: devices (WTRVS, CP-23 and CTC-808RV) learned into CTC-1041RV can be up to 4. PIR Sensor ----- PIR Smoke Detector ---- SD Local Learning: Carbon Monoxide Detector---- You can use the local learning method to learn in 2 RF devices or 4 DECT devices.

  • Page 8: Learning In Dect Devices (Ctc-808Rv, Cp-23 And Wtrvs)

    CTC-808RV emits one short beep and its WTRVS) green LED is off and red LED steady on, that means the learning process has CTC-1041RV can learn in 4 DECT devices failed. Please repeat the learning steps at most. The DECT devices will be again.

  • Page 9: Removing Pendant #1 & #2

    1 beep to indicate that CP- 23/WTRVS is within the operation range. Press the reset and help buttons at the same time to exit learning mode. The red LED will dim to indicate that CTC-1041RV is back to idle mode. 2.4. Removing Pendant #1 &...

  • Page 10: System Configuration

    Programming Mode, CTC-835 number of rings for CTC-1041RV to answer Handheld Programmer (sold separately). (20-Rings is set as factory default). Step 1. Dial CTC-1041RV and wait for CTC- 1041RV to answer. 3.1.1. Local Programming Mode Step 2. Enter 1111 (default 4-digit Access (Optional) Code) followed by #, via the phone set.

  • Page 11: Ctc-835 Programmer

    Operation Manual of CTC-835 Programmer. 1. CC = 2-digit DTMF Command 2. # = Termination of the DTMF Command 3. ACK = DTMF Command Acknowledgement from CTC-1041RV Short beep: Command succeeded Long beep: Command failed 4. Function Selection = According to different Command you will have different entering in this part, e.g.
  • Page 12 Reporting and Status Reporting Operation. < > < > Step 6. CTC-1041RV will emit a short beep, If the Tel. number is selected in indicating successful programming. Commands then Command #7 holds the top priority to The maximum interval between key strokes is overwrite the setting.
  • Page 13 #5 and/or #6. used for Digital Reporting. When multiple Tel. numbers are Command (10): Set the same account selected, CTC-1041RV will always number for all telephone numbers. dial in respective programmed order. Command (11-14):...
  • Page 14 Call Recipient and CTC- Audible Fault Alert 1041RV for 1-10 minutes (set by CTC-1041RV can be programmed to emit Command #46). detected and existent Fault Alert Beeps at If the Call Recipient needs more talk every 30 sec.
  • Page 15 Emergency alarm report to the Monitoring Station. (Disable) Command 35 (Enable) Silent Mode Factory Default is set as (1), ON. CTC-1041RV can be selected to operate in Silent Mode. This will mute all normal < > < > operation warning beeps, key tone and ring.
  • Page 16 (default: 1111), followed by (#) triggered by CTC-808RV, the system will to set up the two way communication wait for an authorized access code (default between CTC-1041RV and the Monitoring 1111) followed by (#) during the 5-minute Center. waiting...
  • Page 17 Auto Answer for Remote Programming communicating method. Please refer to section 4.2. Alarm Activation. CTC-1041RV can be programmed to auto answer incoming phone calls after a pre- The first digit of Access Code must be set number of rings have been reached.
  • Page 18 Mobility Timer It is used to select the Follow-On Choice This function monitors user movement around for CTC-1041RV after it has made a report the premises and sends an inactivity report to to the Monitoring Center. the Monitoring Center if the user fails to reset After reporting, CTC-1041RV can wait for the inactivity timer.
  • Page 19 Speech mode is two mins. During the 2- Function Result min period, CTC-1041RV will emit two Selection beeps via the telephone handset to alert the call recipient the remaining time of 20 & Disable 10 sec. Pressing assigned DTMF key can extend another 1-10 minute(s).
  • Page 20 Set Guard Time Delay Time for Fall Sensor Help Not Arrived Call This command is used to set the guard When CTC-1041RV has sent an alarm time delay time for fall sensor. report and help not has arrived after 4 retries, CTC-1041RV will dial the phone...
  • Page 21 Programming mode. phone set. Step 3: CTC-1041RV will emit 2 beeps to Step 2: Press the Pendant Button within 60 indicate that Pendant #2 is learnt-in sec.
  • Page 22 Programming mode. CTC-1041RV. Step 3: CTC-1041RV will emit 2 beeps to If no signal is received within 60 indicate the device is learnt-in sec, CTC-1041RV will emit a long successfully.

  • Page 23: Operation

    Pendant Button on WTRVS or by pressing the Emergency or Service button on CTC-808RV. Once CTC-1041RV answers the call, it will open a Two-Way Voice Communication. The RED HELP BUTTON illuminates. In the “Two-Way” and “Talk Only”...

  • Page 24: Non-Emergency Speech Call

    When 5 short beeps (warning beeps) sound instead of a short beep, it means 4.1.4. CTC-1041RV Low Battery CTC-1041RV is not in idle mode and it is CTC-1041RV is unable to detect its not allowed to use non-emergency call Battery condition at first 30 minutes after function.

  • Page 25: Devices Low Battery

    Battery failure. If Mobility Timer is set as Enable, a When the battery disconnection lasts for counting down period starts from: 10-15 mins, CTC-1041RV will report to the Immediately after powering up CTC- Monitoring Center and the GREEN LED 1041RV flashes slowly.

  • Page 26: No Pendant Present

    2.5 minutes, connection will timeout and the talking pendant will stop beeping. Confirmation Beeps When reporting to CMS fails, the Once an alarm is triggered, CTC-1041RV talking pendant will go to retry cycle will summon help based...
  • Page 27 Follow-On choice (Command Digital Reporting Method 45) you have set. Then the Monitoring Center After the alarm reporting is successfully can remotely control CTC-1041RV by the received by the Monitoring Center, CTC- DTMF commands listed below. 1041RV...
  • Page 28 Enter (0) to hang up the call only. Help The value of speaker volume ranges arrived mode and callback mode will from 1 to 8 and the default value is set continue. WTRVS and/or CTC-808RV as (5). will remain in callback mode. If communication is set up between f levels of speaker volume can only be WTRVS/CTC-808RV...
  • Page 29 Command 75 and open two-way 20 & 10 seconds before the Follow-On communication when the call is period expires, CTC-1041RV will emit two answered. If the call is not answered, beeps to alert both the user and the CTC-1041RV will end the report, Monitoring Center Personnel.

  • Page 30: Walk Test (Range Test)

    There is a calling pause between each call. If Speech Reporting Method is selected, For different Tel. Numbers, the pause is after dialing, CTC-1041RV will open a two- set as 5 sec, and for same Tel. Number, it way voice communication between the is set as 62 sec.

  • Page 31: Global Test

    Battery Switch to OFF position (or the operation. opposite direction of the ON marking) Step 4. If CTC-1041RV responds with one Step 4. Plug the power cord into the DC jack long beep, then the particular device while holding down both the HELP &...

  • Page 32: Appendix

    Speech channel. When a fall sensor is triggered. 611 - Global test 147 - Sensor Supervisory Failure When CTC-1041RV reports Global Test to Monitoring Center. When CTC-1041RV is unable to receive supervisory signal 641 - Mobility transmitted from the Wrist Transmitter...

  • Page 33: Tunstall Event Code

    5.2. Tunstall Event code D#1019 – Panel Low Battery or Battery Not Connected D#1011 - Panel AC Restored When CTC-1041RV is under Low When AC power is restored to CTC- Battery or battery Not Connected 1041RV. status, Green LED flashes every 2 sec with 2 beeps every hour.
  • Page 34 555556558 - Panel Low battery / Battery When the Smoke Detector (SD) or Not Connected Carbon Monoxide Detector (CO) is When CTC-1041RV is under Low triggered. Battery or Battery Not Connected 355555517 - SD or CO emergency status, the Green LED flashes every 2 restore sec with 2 short beeps every hour.

  • Page 35: Ctc-1041Rv Programming Command Table

    5.4. CTC-1041RV Programming Command Table DTMF DTMF TERMI- DTMF CHARACTER COMMAND OPERATION DEFAULT NATOR COMMANDS Telephone number 1 No number Telephone number 2 No number Telephone number 3 No number Telephone number 4 No number Telephone number for alarm report...
  • Page 36 DTMF DTMF TERMI- DTMF CHARACTER COMMAND OPERATION DEFAULT NATOR COMMANDS Test call, 0 = OFF, 1 = 1 Day, 2 = 2 Days, 3 = 3 Days, 4 = 4 Days. 5 = 5 Days, No test call 6 = 6 Days, 7 = 7 Days, 8 = 30 days Mobility time Mobility time 0= Disable, 1=12 Hour, 2=24 Hour...
  • Page 37 FCC statements Changes or modifications to the equipment not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This device complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. The antenna used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in...
