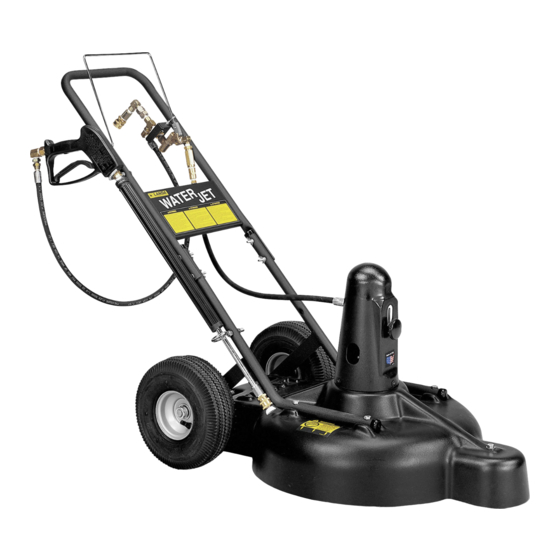

- Page 1 WATER JET ® SYSTEM ACCESSORIES AND PARTS OPERATOR’S MANUAL PARKING LOT AND DRIVEWAY CLEANING MADE EASY For technical assistance or the dealer nearest you consult our web page at www.landa.com or call 800-LANDA-4-U (800-526-3248) or (360) 833-9100...
-
Page 2: Table Of Contents
Date of Purchase ____________________________ The model and serial numbers will be found on a decal attached to the Water Jet. You should record both serial number and date of purchase and keep in a safe place for future reference. Water Jet System Manual • Form #96-617 • Revised 12/03... -
Page 3: Introduction
The height adjustment knob allows for 6. Never point the Water Jet wand at any part of your cleaning variations by easily raising or lowering the ro- body or at anyone standing within 10 feet as serious tating pressure spray. -
Page 4: High Pressure Swivel Information
5. Adjust the rotary spraybar to its highest position. Loosen the adjustment knob (item #7) on the front of the Water Jet dome and slide the knob upward to raise the rotary spraybar to its highest position and tighten. -
Page 5: Alignment Tool #95-0728030
NOTE: 20° is the factory setting. alignment tool as shown. Nozzles can be set at 15° if a slower rota- tional speed is desired. STEP 5: Readjust Water Jet rotor height assembly, reconnect water to machine. WATER JET SYSTEM Manual • #96-617 • Rev 12/03... -
Page 6: Exploded View
WATER JET SYSTEM INSTRUCTION MANUAL AND PARTS LIST EXPLODED VIEW WATER JET SYSTEM Manual • #96-617 • Rev 12/03... -
Page 7: Parts List, Exploded View
Nut, 10/32", NF, ST, KEP 10-02031 Label, Water Jet 90-4008 Washer, 5/16", Lock, Split, Ring 1 2-99071 Filter, 1/4" 36387-1/4", High Pressure Not Shown 2-990710 Screen, High Pres.Filter S/S 1 2-990711 Gasket, Nylon for 2-99071 WATER JET SYSTEM Manual • #96-617 • Rev 12/03... -
Page 8: Troubleshooting
To obtain the correct nozzle size in the rotary swivel, divide the minimum nozzle size for the pressure by two. Round this figure up to the nearest half nozzle size. These are the 1/8" nozzles only (two needed) for the rotary swivel on the Water Jet. -
Page 9: Warranty
LIMITED MINIMUM 90 DAY WARRANTY We warrant to the original consumer that each new part and accessory sold by LANDA will be free from manufacturing defects in materials or workmanship in normal service for the duration specified by the original component manufacturer with a 90 day minimum from date of purchase, provided it is installed properly and the equipment is maintained in accordance with LANDA’S... -
Page 10: Spanish Translations
3. Acoplar la manguera de alta presión de la lavadora producir perforaciones en los al Sistema de chorro de agua tejidos de la piel, causando heridas graves. WATER JET SYSTEM Manual • #96-617 • Rev 12/03... - Page 11 NOTA: Para usar la pistola, tener presente que el Sistema de chorro de agua viene con una boquilla #6 y dos boquillas #3 sobre la placa rotatoria. WATER JET SYSTEM Manual • #96-617 • Rev 12/03...
- Page 12 15° si se desea una se muestra. velocidad de rotación más despacio. PASO 5: Reajustar la altura de ensamble del rotor del Sistema de chorro de agua, reconectar el agua a la unidad. WATER JET SYSTEM Manual • #96-617 • Rev 12/03...
