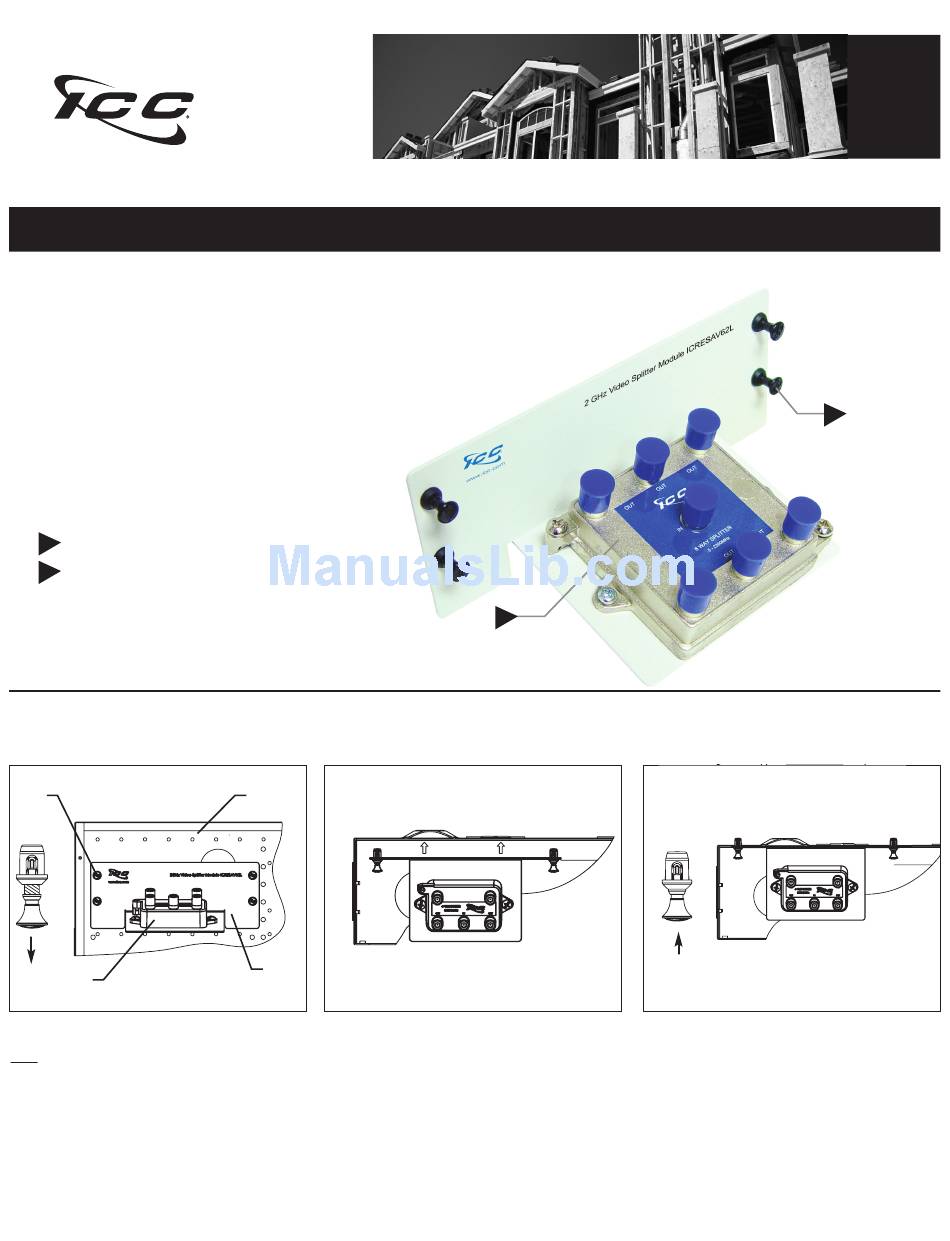

ICC ICRESAV42L Installation Instructions

Deluxe Series Video Splitter Modules
I N S

Video Splitter Modules

2 GHz Video Splitters can support up to eight locations, offering a choice of 4, 6, or
8-ports, and are designed for installation in ICC's Net.Media Centers. The Video
Splitters receive and distribute CATV, antenna, satellite, or modulated video
signals up to eight analog or digital television sets.
ICRESAV42L
ICRESAV62L
ICRESAV82L

INCLUDES:

2 GHz Video Splitter, 1 piece
A
Fasteners, 4 pieces
B

ASSEMBLY INSTRUCTIONS

Step 1.

Fasteners (4x)
Splitter
1. Place module horizontally and align fasteners
with the peg board. Make sure the fasteners are
NOT in locked positions.
CUSTOMER CARE / TECHNICAL SUPPORT •
16800 Edwards Road, Cerritos CA
© Copyright 2006, ICC. ICC and ICC logo are registered trade name and trademark. All rights reserved.
T A L L A T I

Step 2.

Enclosure
Module Bracket
2. Push the module so that the fasteners goes into
the peg board of the enclosure.
Residential Cabling Solutions
O N I N S T
A
CSR@ICC.COM / 888-275-4422 (ASK-4-ICC)
90703 • 562-356-3111 • Fax 562-356-3100
R U C T I O N

Step 3.

3. Once module bracket is in the desired location,
push the fasteners to their lock position.
S
B
MSR-0411-2 REV C
