Digital Solutions FIB1-1000MG Installation Instructions

Installation Instructions for
FIB1-1000MG Gigabit Series
Single Mode to Multi-mode
1000BASE-SX / 1000BASE-LX
Fiber Transceiver Media Converters
Description
The FIB1-1000MG single-mode to multi-mode fiber converter gives you the most
popular gigabit multi-mode connectors, SC or LC.
The FIB1-1000MG-GBIC matches the industry standard GBIC module interface
with a standard gigabit multi-mode SC transceiver. Three LED indicators linking
status of single mode, multi-mode and the power status of the converter

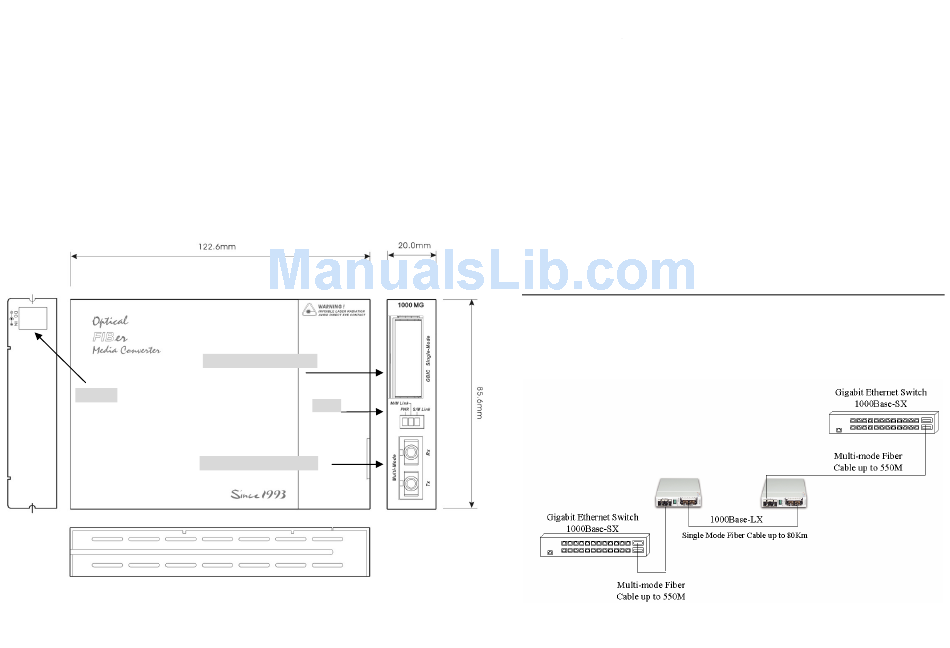

DC Jack
-
.
S/M Fiber Connections
(1000Base-LX)
LEDs
M/M Fiber Connections
(1000Base-SX)
-1-
Specifications
Standard
Fiber IEEE802.3z 1000Base-SX/LX, Gigabit Standards
Supports Full Duplex Ethernet mode (2000Mbps)
Fiber Optic Connectors
Depending on model, a fixed SC or LC, GBIC socket with SC, or SFP socket with LC is provided
Environment Dimensions
Temperature 0℃ - 50℃ (operating) 122.6mm x 85.6mm x 20mm
0℃ - 70℃ (storage) (L x W x H)
Humidity 20-80% non condensing (operating)
10-90% (storage)
Weight
340g (110z )
Installation
Connect the fiber interface cable to the FIB1-1000MS. Follow the connection examples below. Install the
fiber converter with the DC power adapter provided (+12VDC) and connect the adapter to an AC outlet.
Connections
The following example illustrates the fiber connection scheme when connecting from a 1000BASE-SX
port of one Gigabit Ethernet Switch port to a 1000BASE-SX port of another switch through a pair of fiber
converters and single mode fiber cable.
Power
AC Input : 90~264VAC
Frequency : 47~63 Hz
Output : DC12V+/- 5%, 1A
Consumption : <4W
-2-
