Summary of Contents for Intellijel mJack

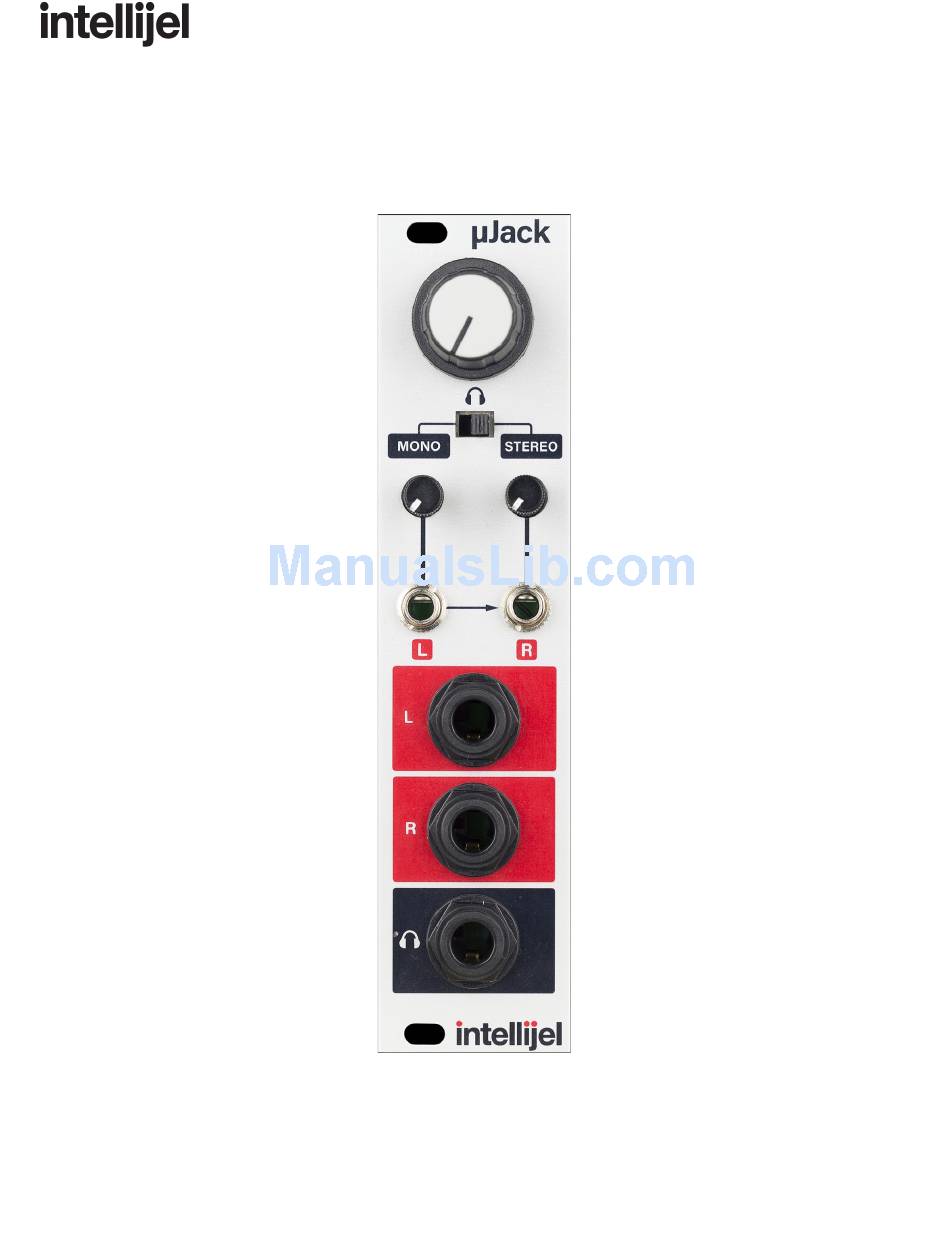

- Page 1 µJack Manual µJack Headphone & Stereo Line Output Manual Revision: 2018.05.16 ...
- Page 2 ● Left input normalled to Right input. ● Individual level attenuators and global stereo headphone gain control. ● 6-pin header on back of module and ribbon cable for connecting directly to the outputs of an Intellijel Dubmix or Azimuth II. ...
-
Page 3: Table Of Contents
µJack Manual Table of Contents Overview Features Table of Contents Installation Before Your Start Installing Your Module Front Panel Controls Inputs & Outputs Technical Specifications Page 2 ... -
Page 4: Installation
Installation Intellijel Eurorack modules are designed to be used with a Eurorack-compatible case and power supply. Before Your Start Before installing a new module in your case you must ensure your case’s power supply has sufficient available capacity to power the module: ... -
Page 5: Installing Your Module
Eurorack case. Ensure the red stripe on the cable lines up with the -12V pins on the bus board. On Intellijel power supplies the pins are labelled with the words “-12V” and a thick white stripe. ... - Page 6 µJack Manual Once connected, the cabling between a module and power supply should resemble the photo shown below. Before reconnecting power and turning on your modular system, double check that the ribbon cable is fully seated on both ends and that all the pins ...
-
Page 7: Front Panel
µJack Manual Front Panel Controls 1. HEADPHONE Level The large knob on the top of the µJack controls the level of the headphone output. 2. MONO/STEREO Switch This switch controls whether or not the output of the module is mono or stereo. -
Page 8: Technical Specifications
µJack Manual L Out This jack carries the attenuated output of the modular-level signal sent into the LEFT Input jack. It enables you to interface your modular gear with external mixers, power amps or DAWs, and is an unbalanced +4 dBu ¼” output. For use with -10dBv systems, simply dial back on the corresponding channel’s attenuator. ...
