INSTRUCTION

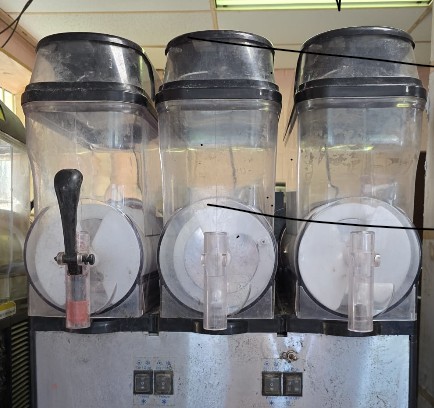

OFS20 & OFS30

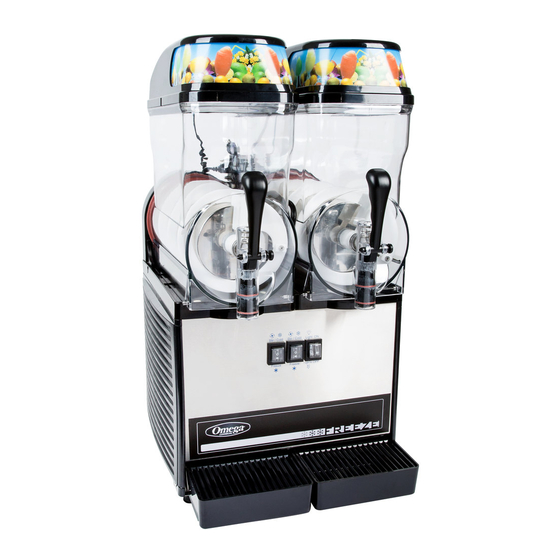

GRANITA MACHINE
MANUAL
www.omegajuicers.com
www.omegajuicers.com
OMGMAN 082009 RevA
Advertisement
Chapters
Table of Contents
Related Manuals for Omega OFS30
Summary of Contents for Omega OFS30
- Page 1 Total Restaurant Supply - https://totalsupply1.com - Toll Free 1-800-944-9304 - Local 507-288-9454 2940 Hwy 14 W, Rochester, MN 55901 INSTRUCTION MANUAL Eat well, drink well and live well with Omega Eat well, drink well and live well with Omega www.omegajuicers.com www.omegajuicers.com OFS20 &...
- Page 2 Total Restaurant Supply - https://totalsupply1.com - Toll Free 1-800-944-9304 - Local 507-288-9454 2940 Hwy 14 W, Rochester, MN 55901...
- Page 3 Total Restaurant Supply - https://totalsupply1.com - Toll Free 1-800-944-9304 - Local 507-288-9454 2940 Hwy 14 W, Rochester, MN 55901 TABLE OF CONTENTS Specifications Instructions for Machine Transport Installation Operating & Cleaning Procedures Exploded View 9-10 Parts List Electrical Diagram Warranty...
-
Page 4: Specifications
H 59cm x W 41cm x D 43cm Amps: 6 A/3 A Watts: 710 Hz: 50/60 OFS30 OFS30 Power Requirements: Dimensions H 23in x W 17in x D 24in Volts: 120/240VAC H 59cm x W 41cm x D 61cm Amps: 8 A/4 A... -
Page 5: Instructions For Machine Transport
Total Restaurant Supply - https://totalsupply1.com - Toll Free 1-800-944-9304 - Local 507-288-9454 2940 Hwy 14 W, Rochester, MN 55901 Instructions for Machine Transport NOTE: Refrigeration equipment must remain upright to avoid damage to the compressor In order to prevent the oil contained in the compressor from flowing into the cooling circuit, it is necessary to always ship, carry, store and handle this Granita machine in an upright position, following the instructions located on the packaging. -
Page 6: Operating Procedure
Total Restaurant Supply - https://totalsupply1.com - Toll Free 1-800-944-9304 - Local 507-288-9454 2940 Hwy 14 W, Rochester, MN 55901 Operating Procedure Left - Right Middle Bowl Switches: Each switch corresponds to the number and location of the bowls config- uration to the dispenser. When the switch is in the up/on position the motor and cooling will be turned on. - Page 7 Total Restaurant Supply - https://totalsupply1.com - Toll Free 1-800-944-9304 - Local 507-288-9454 2940 Hwy 14 W, Rochester, MN 55901 Adjustments Consistency Adjustment: 1. Unplug the machine. 2. Be sure that product in the bowl is within proper fill range. (Above the minimum fill line) Remove merchandiser. 3.
- Page 8 Total Restaurant Supply - https://totalsupply1.com - Toll Free 1-800-944-9304 - Local 507-288-9454 2940 Hwy 14 W, Rochester, MN 55901 Before replacing the spiral agitator put gaskets in their seats and lubricate them with the supplied food grade lubricant. Insert the spiral agitator and place back the bowl in its seat.
-
Page 9: Exploded View
Total Restaurant Supply - https://totalsupply1.com - Toll Free 1-800-944-9304 - Local 507-288-9454 2940 Hwy 14 W, Rochester, MN 55901 EXPLODED VIEW & PARTS LIST... -
Page 10: Parts List
Hardness Control Screw PSH-GL3000 Twisted Spring PSH-GL3001 Light Bulb Assembly PSH-GL3005 PC-Board PSH-GL4000-2-UL Front Metal Panel OFS20 PSH-GL4000-3-UL Front Metal Panel OFS30 PSH-GL4001-1-BLK Side Panel-Left (Black) PSH-GL4003-BLK Side Panel-Right (Black) PSH-GL4004-2-UL Back Metal Panel OFS20 PSH-GL4004-3-UL Back Metal Panel OFS30 PSH-GL4005-2... - Page 11 Power Cord UL PSH-GL1018-1 Subsidiary Fan Motor UL PSH-GL3006-1-UL Transformer UL PSH-GL3007 Gasket PSH-GL3008 Bushing PSH-GL3009-3 Protective Switch 20A OFS20 PSH-GL3009-4 Protective Switch 30A OFS30 PSH-GL3010 Terminals Connectors Set PSH-GL4029 Positioning Ring PSH-GL5006 Power Box PSH-GL5007 Bracket PSH-GL5034-UL Power Cord UL...
- Page 12 Total Restaurant Supply - https://totalsupply1.com - Toll Free 1-800-944-9304 - Local 507-288-9454 2940 Hwy 14 W, Rochester, MN 55901 Electric Circuit Diagram OFS30...
-
Page 13: Limited Warranty
ASW&P authorized service technician shall disclose to our satisfaction to be defective. Nei- ther Omega nor Asbury Service Warranty & Parts shall be held responsi- ble for spoilage of products, loss of sales or consequential damages. - Page 14 Total Restaurant Supply - https://totalsupply1.com - Toll Free 1-800-944-9304 - Local 507-288-9454 2940 Hwy 14 W, Rochester, MN 55901...
- Page 15 Total Restaurant Supply - https://totalsupply1.com - Toll Free 1-800-944-9304 - Local 507-288-9454 2940 Hwy 14 W, Rochester, MN 55901...
- Page 16 Total Restaurant Supply - https://totalsupply1.com - Toll Free 1-800-944-9304 - Local 507-288-9454 2940 Hwy 14 W, Rochester, MN 55901 www.omegajuicers.com Omega Products, Inc · Harrisburg, PA 17111-4523, U.S.A. Phone:(717) 561-1105 · Fax:(717) 561-1298...
