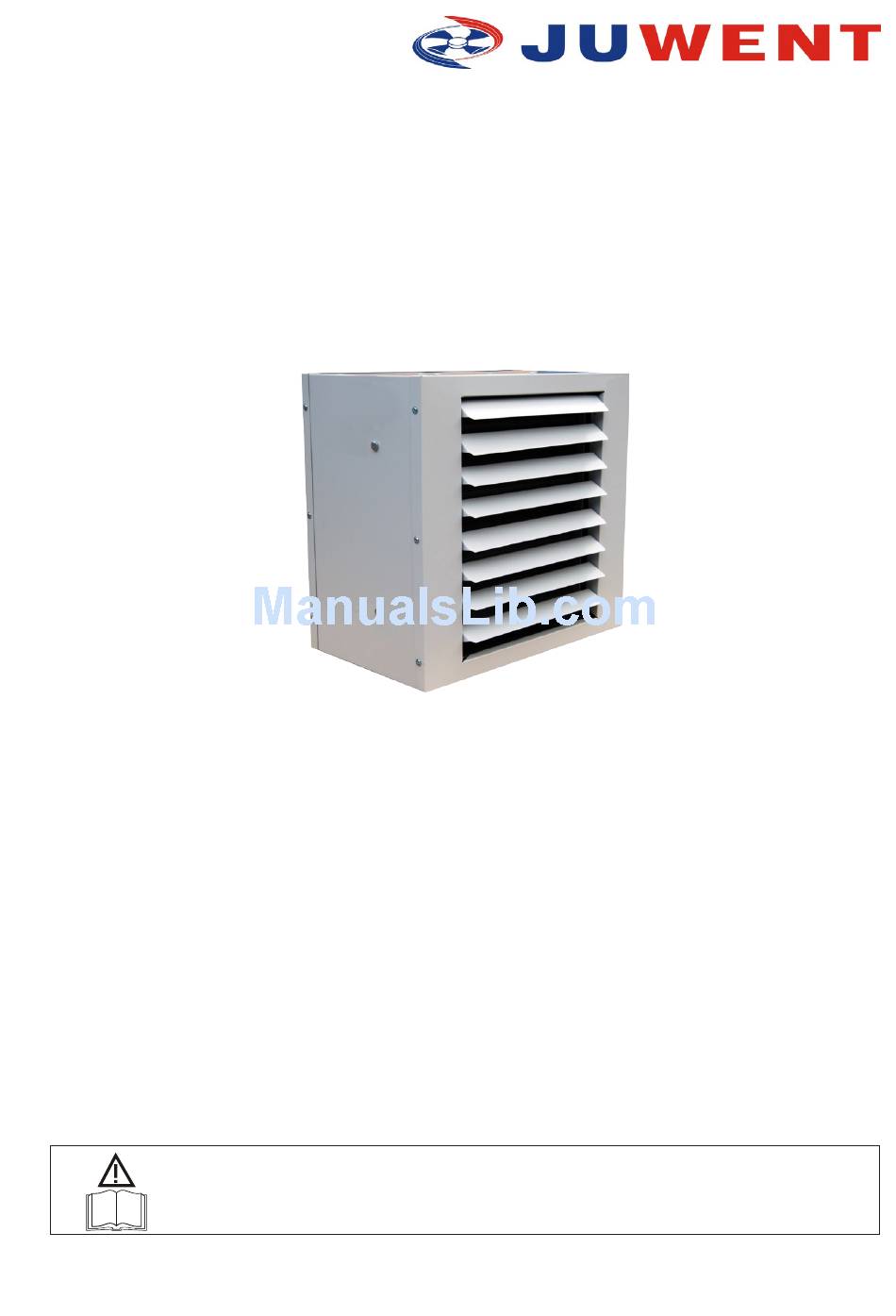

ELECTRIC HEATING AND VENTILATION UNITS
I.
CONTACTS
II.
ORIGINAL INSTRUCTION MANUAL
III.
WARRANTY TERMS AND CONDITIONS
IV.
UNIT STARTUP REPORT
V.
INSPECTION AND MAINTENANCE DOCUMENT
VI.
SERVICE NOTIFICATION
VII. LIST OF SUBASSEMBLIES INSTALLED IN THE UNIT
Please read this instruction manual carefully before beginning any work.
Szymański, Nowakowski General Partnership
31 Lubelska Str., 08-500 Ryki
phone +48 81 883 56 00, fax +48 81 883 56 09
TERM-E
RYKI 2017
ISSUE 1 EN
POLAND
Advertisement
Table of Contents
Related Manuals for Juwent TERM-E-18
Summary of Contents for Juwent TERM-E-18
- Page 1 Szymański, Nowakowski General Partnership 31 Lubelska Str., 08-500 Ryki phone +48 81 883 56 00, fax +48 81 883 56 09 POLAND ELECTRIC HEATING AND VENTILATION UNITS TERM-E CONTACTS ORIGINAL INSTRUCTION MANUAL III. WARRANTY TERMS AND CONDITIONS UNIT STARTUP REPORT INSPECTION AND MAINTENANCE DOCUMENT SERVICE NOTIFICATION VII.
- Page 2 I. CONTACTS Szymański, Nowakowski General Partnership 31 Lubelska Str., 08-500 Ryki phone +48 81 883 56 00, fax +48 81 883 56 09 POLAND Export department mob.+48 502 087 841 mob.+48 664 465 243 export@juwent.com.pl www.juwent.com.pl...
- Page 3 II. ORIGINAL INSTRUCTION MANUAL ELECTRIC HEATING AND VENTILATION UNITS TERM-E www.juwent.com.pl...
-
Page 4: Table Of Contents
1. INTENDED USE 2. DESIGNATIONS 3. DEVICE DESCRIPTION 4. TECHNICAL DATA 5. ADDITIONAL EQUIPMENT 6. TRANSPORT 7. SAFETY RECOMMENDATIONS 8. MOUNTING 9. WIRING SYSTEM 10. AUTOMATICS 11. DEVICE COMMISSIONING 12. REPAIR, MAINTENANCE AND WITHDRAWAL FROM USE 13. TROUBLESHOOTING 14. INFORMATION www.juwent.com.pl... -
Page 5: Intended Use
The casing variant with the following items is recommended to use with the units which are planned to be operated as ceilings ones: » slot diffuser - for heating a zone of human presence by a secondary air stream; » discharge cone - for increasing a range of supply air stream. www.juwent.com.pl... -
Page 6: Technical Data
4. TECHNICAL DATA Size of unit TERM-E-18 TERM-E-27 Dimensions A [mm] B [mm] L [mm] a [mm] b [mm] Weight [kg] Unit’s IP Parameters of fans in units Type of fan FE-031EQ FE-035EQ Revolutions [rev/min] 1400 1400 Voltage [V] Motor power [W]... - Page 7 Wall units can be also equipped with discharge cone (D). Slot diffusers are enabling heating people staying zones with the secondary air stream. Unit TERM-E with slot diffuser can be suspended on the height max. 4m. Discharge cone enable increase of air supply range. www.juwent.com.pl...
-
Page 8: Additional Equipment
The intake boxes are used to draw and mix fresh and circulating air. In case the intake boxes are used for the TERM units it is necessary to use (as additional equipment) flexible connector (K) allowing connecting the intake boxes with the units. www.juwent.com.pl... - Page 9 When it is required to extend the adjustment of share from 100% of fresh air to 100 % of circulating air it is foreseen to replace the standard intake boxes with circulating air grids with the boxes with increased tightness dampers (2 pcs.) with servomotors. www.juwent.com.pl...
-
Page 10: Transport
All service and repair works should be executed when voltage is off. Unit should be protected against moisture and do not clean the heater with a damp cloth. Unit can only be operated when it is fully operational, in the event of a failure, immediately cut off the power supply. www.juwent.com.pl... -
Page 11: Mounting
When it is necessary to locate the unit by a partition, e.g. made of steel sheets, stiffening profiles should be used to avoid vibrations of the partition generated by the unit operation and the noise level increase in the compartment. www.juwent.com.pl... - Page 12 Wall units- suspensions GW i GWt Suspension GW -intake box without filter Unit size [mm] [mm] [mm] TERM-E ~1315 Suspension GWt - intake box with filter TERM-E 1030 ~1575 CS - wall intake SC - intake box K - flexible connector GW suspension set www.juwent.com.pl...
- Page 13 WW support set Ceiling units - suspension on threaded bars a x b Unit size [mm] TERM-E 620x290 CD - roof intake PD - roof base SC - intake box K - flexible connector c - ceiling tb - threaded bars www.juwent.com.pl...
-
Page 14: Wiring System
5x6mm2 wire (for 18kW) and 5x10mm2 wire (for 27kW). B - Supply and control box *S - Room temperature sensor - option with temperature regulator (RTA) **A - Air damper actuator - option with intake box www.juwent.com.pl... -
Page 15: Automatics
Supply voltage 24V AC Control signal 0...10V DC Protection level IP42 Fig. 3. ZW damper position presetting unit Y Control input 0…10V DV G0 Systemic zero-point G Phase, 24V AC www.juwent.com.pl... -
Page 16: Device Commissioning
The rotor blades should be cleaned with a damp cloth, after removing the protective meshing, so as not to allow the rotor to be improperly balanced. For any disturbances in the unit operation, please consult the technician or technical service. www.juwent.com.pl... -
Page 17: Troubleshooting
2) reliability of connections on electric terminals fan motor is damaged 3) parameters of the mains fan operation control elements are damaged 14. INFORMATION As to all issues concerning the TERM heating and ventilation units please contact JUWENT Production Plant or Representatives www.juwent.com.pl... - Page 18 III. WARRANTY TERMS AND CONDITIONS JUWENT Szymański, Nowakowski General Partnership, headquartered in Ryki at 31 Lubelska Str., hereinafter referred to as the Warrantor, grants the Customer a warranty of proper operation of the unit with reservation of the requirement of its use in accordance with the conditions determined in the instruction manual and the terms and conditions specified below.
- Page 19 / name and signature V. INSPECTION AND MAINTENANCE DOCUMENT Date of Executor of inspection Service activity range Remarks inspection stamp / name and signature * Inspection of the unit in accordance with the section “Repair and Maintenance” in the instruction manual www.juwent.com.pl...
- Page 20 NOTE: AFTER COPYING AND FILLING IN SEND THE NOTIFICATION BY FAX OR EMAIL TOGETHER WITH A COPY OF THE STARTUP REPORT. JUWENT Company accepts notifications filled legibly and completely. When the lodged claim is not justified, the claimer will be burdened with service costs.
- Page 21 VII. LIST OF SUBASSEMBLIES INSTALLED IN THE UNIT Name of subassembly Axial fan with single-phase motor 18 kW heat exchanger 27 kW heat exchanger List of subassemblies installed in additional equipment Name of subassembly Fresh air damper Side damper Actuator Filter *) - mark proper box corresponding with the equipment variant...
