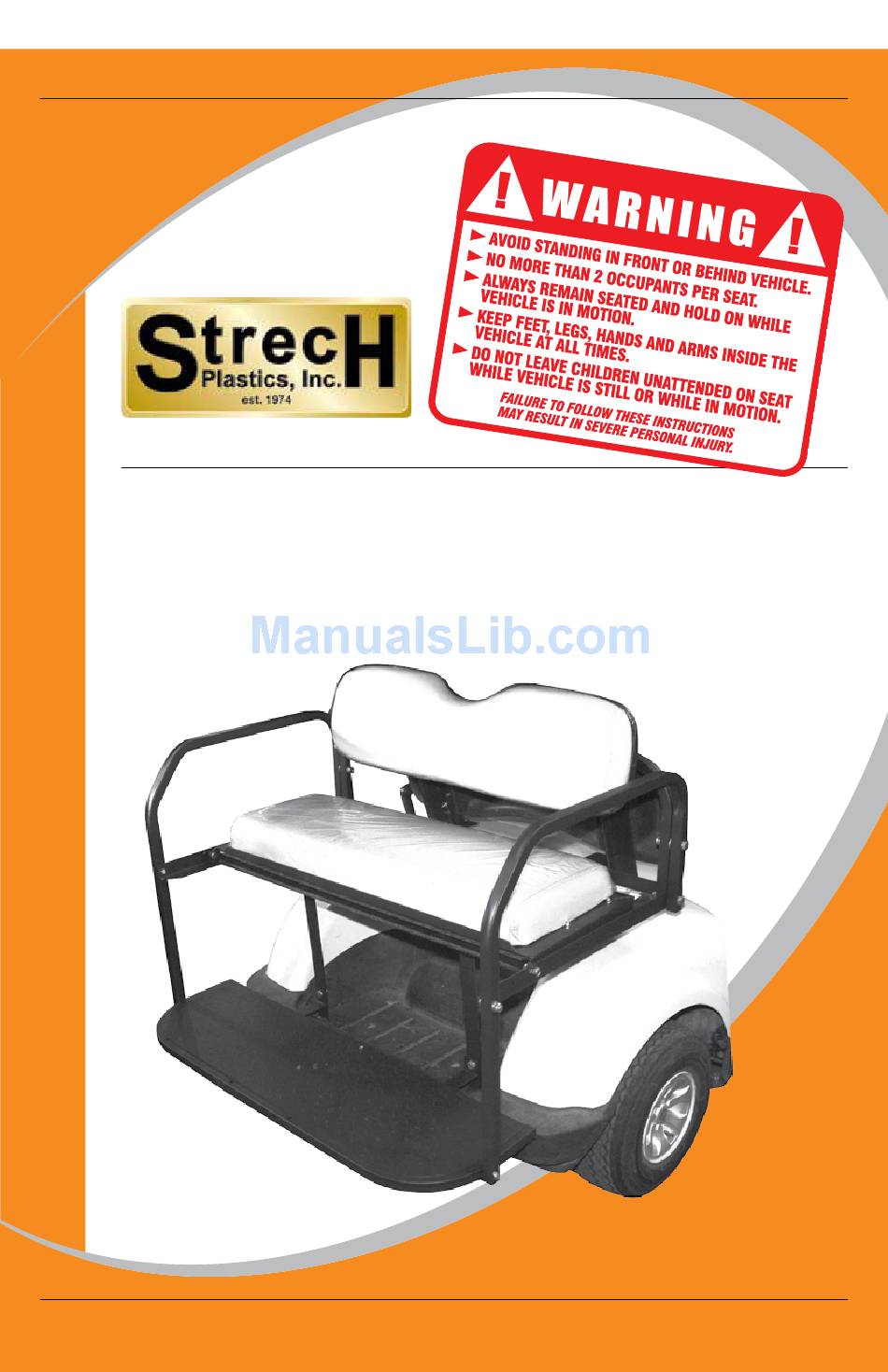

- Page 1 STRECH PLASTICS ARE MANUFACTURERS AND DISTRIBUTORS OF THE HIGHEST QUALITY GOLF CAR PRODUCTS INSTALLATION INSTRUCTIONS Seat Kit for Yamaha Drive YDR-6-28 VISIT US ON THE WEB TO CHECK OUT MORE GREAT PRODUCTS — www.strechplastics.com...
- Page 2 STRECH PLASTICS ARE MANUFACTURERS AND DISTRIBUTORS OF THE HIGHEST QUALITY GOLF CAR PRODUCTS TABLE OF CONTENTS Table of Contents ............2 Kit Contents ..............3-4 Disassembly ..............5-8 Assembly ..............9-18 VISIT US ON THE WEB TO CHECK OUT MORE GREAT PRODUCTS — www.strechplastics.com...
-
Page 3: Table Of Contents
STRECH PLASTICS ARE MANUFACTURERS AND DISTRIBUTORS OF THE HIGHEST QUALITY GOLF CAR PRODUCTS VISIT US ON THE WEB TO CHECK OUT MORE GREAT PRODUCTS — www.strechplastics.com... -
Page 4: Kit Contents
STRECH PLASTICS ARE MANUFACTURERS AND DISTRIBUTORS OF THE HIGHEST QUALITY GOLF CAR PRODUCTS KIT CONTENTS VISIT US ON THE WEB TO CHECK OUT MORE GREAT PRODUCTS — www.strechplastics.com... - Page 5 STRECH PLASTICS ARE MANUFACTURERS AND DISTRIBUTORS OF THE HIGHEST QUALITY GOLF CAR PRODUCTS Attention: Please make sure your kit includes the C-5-77 seat kit spacer. If it is not included in your kit please contact your Strech Plastics Sales Rep. at 800-752-6799.
-
Page 6: Disassembly
STRECH PLASTICS ARE MANUFACTURERS AND DISTRIBUTORS OF THE HIGHEST QUALITY GOLF CAR PRODUCTS DISASSEMBLY STEP 1: Remove the top drain rails from both supports. Save the bolts for re-installation. STEP 2: Remove the seat back and save the bolts for re-installation. - Page 7 STRECH PLASTICS ARE MANUFACTURERS AND DISTRIBUTORS OF THE HIGHEST QUALITY GOLF CAR PRODUCTS DISASSEMBLY STEP 3: Remove the bolts to the top supports. STEP 4: When the bolts are removed use a stick or a broom to help support the top while you work.
- Page 8 STRECH PLASTICS ARE MANUFACTURERS AND DISTRIBUTORS OF THE HIGHEST QUALITY GOLF CAR PRODUCTS DISASSEMBLY STEP 5: Remove the rear inspection cover and save the screws for re-installation. STEP 6: Remove the bolts to the basket support on the drivers side. Save the bolts for re-installation.
- Page 9 STRECH PLASTICS ARE MANUFACTURERS AND DISTRIBUTORS OF THE HIGHEST QUALITY GOLF CAR PRODUCTS DISASSEMBLY STEP 7: Remove the bolts to the basket supports on the passenger side then remove the basket. Save the bolt for re-installation. VISIT US ON THE WEB TO CHECK OUT MORE GREAT PRODUCTS — www.strechplastics.com...
-
Page 10: Assembly
STRECH PLASTICS ARE MANUFACTURERS AND DISTRIBUTORS OF THE HIGHEST QUALITY GOLF CAR PRODUCTS ASSEMBLY NOTE: DO NOT TIGHTEN BOLTS UNLESS SPECIFIED TO DO SO. MUST BE ABLE TO MOVE COMPONENTS OF UTILITY BOX FOR ASSEMBLY. STEP 1: Install the rear support bars with the angle cut side facing down. - Page 11 STRECH PLASTICS ARE MANUFACTURERS AND DISTRIBUTORS OF THE HIGHEST QUALITY GOLF CAR PRODUCTS ASSEMBLY STEP 3: Install the seat back sup- ports with the bolt tabs facing outward on both the passenger and driver side. Use the OEM bolts from the basket supports.
- Page 12 STRECH PLASTICS ARE MANUFACTURERS AND DISTRIBUTORS OF THE HIGHEST QUALITY GOLF CAR PRODUCTS ASSEMBLY STEP 5: Bolt the top supports to the tabs on the seat back supports using 4 - 5/16” x 1 3/4” bolts with 4 - 5/16” nylock nuts and 8 - 5/16”...
- Page 13 STRECH PLASTICS ARE MANUFACTURERS AND DISTRIBUTORS OF THE HIGHEST QUALITY GOLF CAR PRODUCTS ASSEMBLY STEP 7: Re-install the inspection cov- er using the bolts saved from dis-assembly. STEP 8: Attach the box support brackets using 4 - 5/16” x 1 3/4” bolts with 4 - 5/16”...
- Page 14 STRECH PLASTICS ARE MANUFACTURERS AND DISTRIBUTORS OF THE HIGHEST QUALITY GOLF CAR PRODUCTS ASSEMBLY STEP 9: Attach the folding deck to the deck support brackets using 2 - 5/16” x 1 3/4” bolts with 2 - 5/16” washers and 2 nylock nuts. Fin-...
- Page 15 STRECH PLASTICS ARE MANUFACTURERS AND DISTRIBUTORS OF THE HIGHEST QUALITY GOLF CAR PRODUCTS ASSEMBLY STEP 11: Install the U-shape seat back support as shown on both sides using 4 - 3/8” x 2 1/2” bolts with 4 - 3/8” nylock nuts and 8 - 3/8”...
- Page 16 STRECH PLASTICS ARE MANUFACTURERS AND DISTRIBUTORS OF THE HIGHEST QUALITY GOLF CAR PRODUCTS STEP 13: Install the step on both sides using 2 - 5/16” x 3” bolts with 4 - 5/16” washers and 2 - 5/16” nylock nuts. Only finger tighten at this time.
- Page 17 STRECH PLASTICS ARE MANUFACTURERS AND DISTRIBUTORS OF THE HIGHEST QUALITY GOLF CAR PRODUCTS STEP 15: Using the holes at the bottom of the riser brackets as a guide drill through the bagwell using a 5/16” drill bit. Then install 2 - 5/16” x 1 3/4”...
- Page 18 STRECH PLASTICS ARE MANUFACTURERS AND DISTRIBUTORS OF THE HIGHEST QUALITY GOLF CAR PRODUCTS STEP 17: Attach the seat back brackets to the seat back using 2 - 10mm bolts on each side. Only finger tighten at this time. Then attach the seat back to...
- Page 19 STRECH PLASTICS ARE MANUFACTURERS AND DISTRIBUTORS OF THE HIGHEST QUALITY GOLF CAR PRODUCTS Enjoy your new seat kit. VISIT US ON THE WEB TO CHECK OUT MORE GREAT PRODUCTS — www.strechplastics.com...
- Page 20 STRECH PLASTICS ARE MANUFACTURERS AND DISTRIBUTORS OF THE HIGHEST QUALITY GOLF CAR PRODUCTS STRECH PLASTICS ARE MANUFACTURERS AND DISTRIBUTORS OF THE HIGHEST QUALITY GOLF CAR PRODUCTS Golf Car Accessories Leader Specializing In: Dashes • Trays Steering Wheel Covers • Lift Kits Windshields •...
