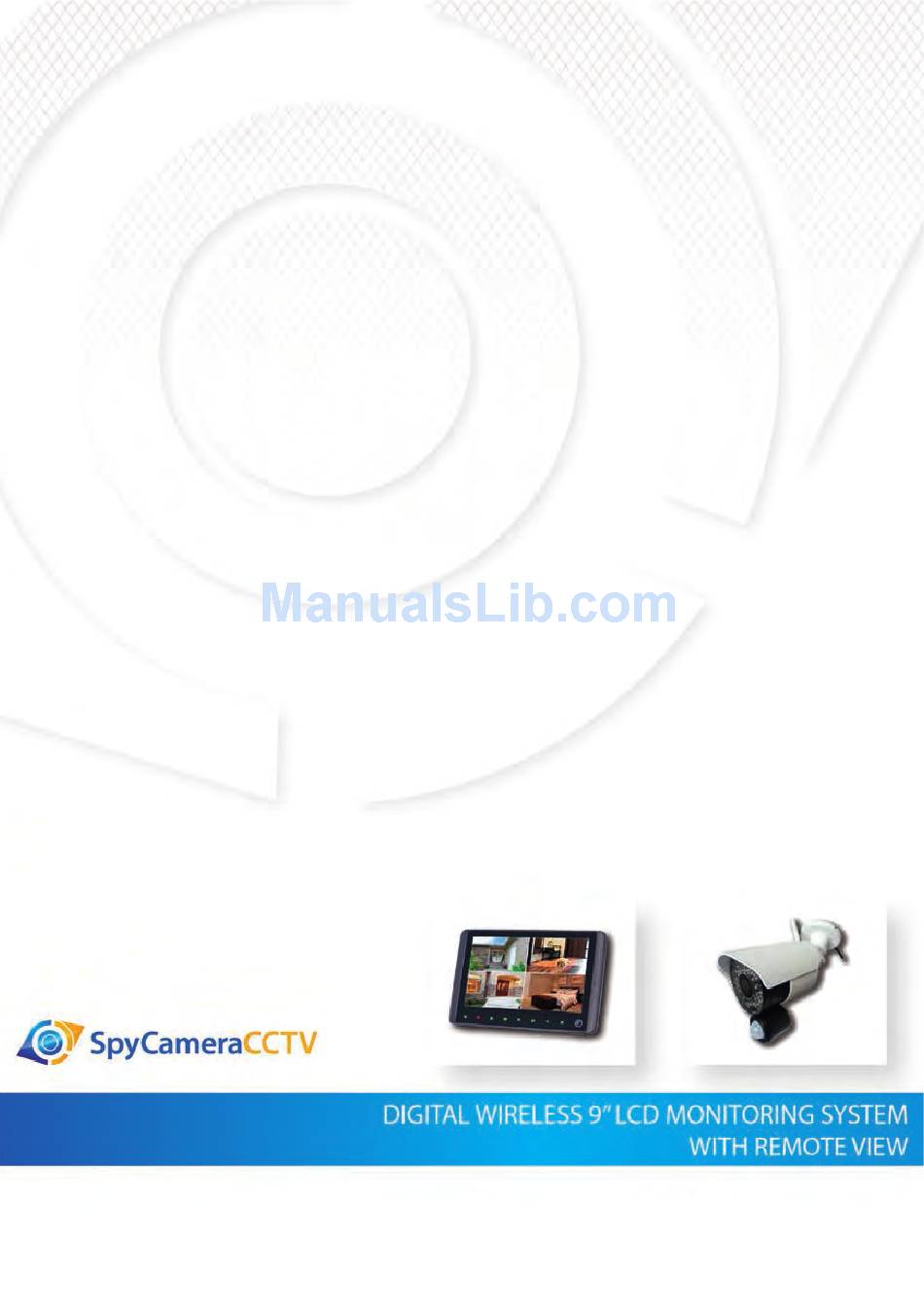

SpyCameraCCTV 1DIGLAN1003 Manual

Digital wireless 9 inch lcd monitoring system with remote view
Hide thumbs

Advertisement

Quick Links

Download this manual
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the 1DIGLAN1003 and is the answer not in the manual?

Questions and answers

Related Manuals for SpyCameraCCTV 1DIGLAN1003

Summary of Contents for SpyCameraCCTV 1DIGLAN1003

  • Page 2 FEATURE LIST 1DVRDIG1503 Camera features - IP65 rated - Maximum wireless range: 100m (clear line of sight) - 850nm infrared night vision LEDs - range up to 10m - 9V, 600mA DC power supply for camera(s) 9” TFT LCD screen digital receiver features - 800 x 480 pixel resolution - Low power scan mode monitoring - MicroSD card support.
  • Page 3 BOX CONTENT Feature List 1DVRDIG1503 1DVRDIG1503 This system includes the following components: Wireless Monitor Wireless Camera Network Cable AC Adaptor (9V) for camera AC Adaptor (5V) for receiver...

  • Page 4: Wireless Receiver

    WIRELESS RECEIVER 1DVRDIG1503 Front Panel Buttons: Displays video from the camera(s) or LCD Screen displays system operations Enable two-way audio intercom. Talk Back Activate/Deactivate motion recording Motion Recording Activate/Deactivate manual recording Manual Recording Switch between paired cameras Change Channel Switch between Tour and Quad (up to Quad/Sequence Mode 4-channels) viewing mode Switch between 2x digital zoom and...
  • Page 5 WIRELESS RECEIVER 1DVRDIG1503 Back Controls: 1. Fold Up Wireless Antennas: Position the antennas as needed for best reception. 2. Power Button: Press and hold to turn the receiver on / o . Single press while the unit is powered on to enable scan mode. 3.
  • Page 6 WIRELESS CAMERA 1DVRDIG1503 Wireless Camera: 1. IR LEDs – Infrared LEDs provide viewing in no/low light conditions 2. Camera Lens –Catches the video in front of the lens and transmits video from camera to receiver. 3. PIR Sensor – Detects motion in front of the lens and transmits detection signal to the LCD receiver.
  • Page 7 WIRELESS CAMERA 1DVRDIG1503 Camera Installation: Before you install the camera, carefully plan where and how it will be positioned, and where you will route the cable that connects the camera to the power adaptor. Before starting permanent installation, verify its performance by observing the image on the receiver when camera is positioned in the same location/position where it will be permanently installed and the receiver is placed in the location where it will be used most of the time.
  • Page 8 USING THE SYSTEM 1DVRDIG1503 Camera Installation: Installing the Camera: 1. Carefully unpack the camera. NOTE: If you are installing cameras that did not come with the system, please see the pairing camera section of this manual for details on installa- tion.

  • Page 9: Using The System

    USING THE SYSTEM 1DVRDIG1503 Using the System: By default, the camera(s) included with your system are automatically paired to the receiver. The camera(s) and receiver will communicate with each other once they are powered on. Note: it is recommended you power on the cameras before powering on the receiver.
  • Page 10 USING THE SYSTEM 1DVRDIG1503 Using the System: 1. Signal Indicator –The signal indicator shows the strength of the signal being received from the camera. The number of bars in the Signal Indicator shows the strength of the signal. One, or no bars indicates the signal is poor, and 4 bars indicate a very strong signal.
  • Page 11 USING THE SYSTEM 1DVRDIG1503 OUT OF RANGE Warning: When the receiver can’t get signal from cameras, warning message will be displayed. Reposition the camera, or check the camera power connection. 2 Channel Indicator – Displays the current channel number you are presently viewing.
  • Page 12 USING THE SYSTEM 1DVRDIG1503 OUT OF RANGE Warning: 5 Talk back Indicator- Touch and hold ( ) on the monitor then talk back to the camera, the talk back indicator ( ) will be shown on the LCD screen. You must be viewing a single camera for the talk-back function to operate.
  • Page 13 USING THE SYSTEM 1DVRDIG1503 Viewing Modes: There are four di erent viewing modes available on the system: single channel viewing, Auto Sequence (Tour) Viewing mode (view individual channels automatically in sequence), Quad mode, and Scan mode. Note: Auto Sequence Viewing mode cycles through connected channels in full-screen.
  • Page 14 USING THE SYSTEM 1DVRDIG1503 MicroSD Card Recording: The system records video to the microSD card (not included). You can manually start or stop recording at any time by pressing the record button, or enable motion record so the LCD receiver will automatically record only when motion is detected by the camera, or schedule recording based on the scheduled you set for each camera.
  • Page 15 USING THE SYSTEM 1DVRDIG1503 MicroSD Card Recording: 3.2 Manual Recording Press ( ) Record on the front panel of the receiver to starts manual recording. Press the key again to stop manual recording. Note: In Quad view,it can continuous record from up to 4 cameras at a time. 3.3 Schedule Recording Continuous or motion event recording from up to four cameras according to a weekly schedule.
  • Page 16 USING THE SYSTEM 1DVRDIG1503 Playback: Playback mode allows you to playback recorded video les from the micro SD card. You can view videos or images directly on the system or by connecting the micro SD card to your computer. 4.1 Video Playback To playback recorded video on the system: 1.
  • Page 17 USING THE SYSTEM 1DVRDIG1503 Playback: 5. Move the joystick left / right to select a date on the calendar, and push the joystick to view a list of recordings for that date. Note: • The system uses a 24-hour clock. •...
  • Page 18 USING THE SYSTEM 1DVRDIG1503 Playback: 4.2 Playback controls: 1. Playback duration: Shows the length of the recording and how much has been viewed. 2. File name 3. Playback status: Shows whether the video is playing, paused, or stopped. To control playback using the joystick: •...
  • Page 19 USING THE SYSTEM 1DVRDIG1503 Playback: 4.3 Deleting Video Files You can delete les on the microSD card directly on the system. Delete les if you need to clear space on the microSD card (if le overwrite is disabled), or for your own le management purposes. To delete les on the SD card: 1.
  • Page 20 USING THE SYSTEM 1DVRDIG1503 Playback: CAUTION: Do NOT delete folders on the microSD card using your computer. Deleting folders may a ect your access to other les on the card or may a ect normal operation of the microSD card with the system. If you want to delete the entire contents of the microSD card, it is highly recommended to format the card using the system.
  • Page 21 USING THE SYSTEM 1DVRDIG1503 Accessing Menu System: Use ( ) Menu on the receiver to access to Menu system. Use the joystick to move the cursor up/down/left/right in the menu, and push the joystick to open sub-menus and con rm/save menu selections. Press ( ) Menu to exit menus without saving changes.
  • Page 22 USING THE SYSTEM 1DVRDIG1503 Settings: - Date & Time: Set the date and time on the system. Use arrows ( ) to select the item (MONTH, DAY, YEAR, HOUR, MINUTE, SECOND), and use to set the time. Note ： You can also synchronize the system time with an Internet time server.
  • Page 23 USING THE SYSTEM 1DVRDIG1503 Settings: - Format Memory: Select Yes to format the microSD card. After formatting, all the data stored in the microSD card will be deleted.(Default NO) Note: Be cautious when using this function, as it will erase all videos. -Time Zone: Select the time zone where the system is being used and enable / disable Daylight Savings Time (DST).
  • Page 24 USING THE SYSTEM 1DVRDIG1503 Settings: A: To update rmware from server 1. Connect the included Ethernet cable from the Ethernet port on the receiver to your router, and ensure your receiver is connected to mains power. The new download icon ( ) appears on the screen if new rmware is available.
  • Page 25 USING THE SYSTEM 1DVRDIG1503 Settings: -Network: Con gure the receiver’s IP address (advanced), view network information, or reset your remote access password. 1. Networking setting: IP Addressing Options to select the Static IP and Dynamic IP CAUTION: This section is for advanced users only.
  • Page 26 USING THE SYSTEM 1DVRDIG1503 Settings: 5.2 Detect Separately to Set each Camera’s motion detect sensitivity (High, Medium, Low, O ), move the joystick to select the level of sensitivity then Push the joystick to con rm the adjustment.(Default Low) 5.3 Alert Increase or decrease the volume of the buzzer when motion is detected by the camera(s).
  • Page 27 USING THE SYSTEM 1DVRDIG1503 Settings: 5.4 Record Use the Record menu to change Duration (motion recording time), set a recording schedule, and enable/disable overwrite. You can set up the recording parameters in record menu. Note: To use the recording function, make sure a microSD card is inserted into the microSD card slot.
  • Page 28 USING THE SYSTEM 1DVRDIG1503 Settings: - Schedule Recording: Use scheduled recording to have the system automatically record continuously or based on motion from one or more cameras according to a selected start and stop time. Scheduled continuous recording will record constantly, whereas scheduled motion recording will only record scenes of movement within the scheduled recording time.
  • Page 29 USING THE SYSTEM 1DVRDIG1503 Settings: 6. Select the start time and end time for schedule recording by moving the joystick left /right arrow to move the cursor, then up / down to change the values. Note: The time uses a 24-hour clock. 7.
  • Page 30 USING THE SYSTEM 1DVRDIG1503 Settings: Modifying or Deleting a Recording Schedule You can modify any recording schedule by adding or subtracting recording time. To modify /delete a recording schedule: 1. Press Menu , then select Record. Push the joystick to con rm. 2.
  • Page 31 USING THE SYSTEM 1DVRDIG1503 Settings: - File Overwrite: Use the overwrite feature to have the system overwrite the oldest recorded data on the microSD card once the microSD card is full 5.5 Camera Setup: - Pairing: The system comes with camera(s) that have already been paired.
  • Page 32 USING THE SYSTEM 1DVRDIG1503 Settings: 4. Push the joystick then select the channel you wish to pair the camera to, push the joystick to con rm. 5. A message will be displayed on the receiver screen. The receiver will count down from 30 seconds –...
  • Page 33 USING THE SYSTEM 1DVRDIG1503 Settings: -Camera On/O : Select a camera by moving the joystick up/down, then move the joystick left/right to switch on or switch o the camera. Push the joystick to con rm the change and exit. NOTE: The currently selected camera will have On/O highlighted in Green.
  • Page 34 USING THE SYSTEM 1DVRDIG1503 Settings: -Resolution: Select the frame rate for each camera by HD or VGA Frame rate: Cam x 1 : HD(720p x1) @ 15 fps or Cam x 2 : D1x2 @ 20 fps or Cam x 2 : VGA x2 @ 30 fps or Cam x 4 : VGA x4 @ 30 fps, or VGA x 4 @ 10 fps 6 Scan mode...
  • Page 35 USING THE SYSTEM 1DVRDIG1503 Settings: 1. Download App MyCam View from the Apple App Store or the Google Play store on your smart phone or tablet. 2. Connect the LCD receiver to your home router with the included Ethernet cable. 3.
  • Page 36 USING THE SYSTEM 1DVRDIG1503 Settings: Enter the Password:000000 (Default setting) Then press OK to con rm it. 4. The system will show in your device list at an online status as below picture. 5. Press the camera you have added on your device, now you can view live video from your camera in either portrait or landscape mode.
  • Page 37 USING THE SYSTEM 1DVRDIG1503 Settings: View icon : press this icon to view Snapshot photos already taken. Snapshot Icon : press this icon to take photo from camera side Mute Icon : It cut o the audio on the camera side. Press this icon to listen the audio from camera side.
  • Page 38 USING THE SYSTEM 1DVRDIG1503 Settings: Online: 1, Tells you how many people are currently connected to the system. The system supports a maximum of 4 remote connects at the same time. Quality: Shows the network quality. 6. Back to the add camera menu, then press the down arrow, a new interface pops out as shown below as well as the channel listings:...
  • Page 39 USING THE SYSTEM 1DVRDIG1503 Settings: Reconnect: If your remote connection has failed with the camera, press it to reconnect. Edit Device: Device setting and Advanced setting are under this menu. You can see the camera’s details under Device Setting. You can modify Password setting (default 000000) , video Quality (default Min) and Alert interval (default 3 MIN) under Advance setting.
  • Page 40 USING THE SYSTEM 1DVRDIG1503 Settings: View Snapshot: Select it to view the photos you have taken by Snapshot key. Remove Device: Delete this camera from your phone...
