  • Page 1: User Manual

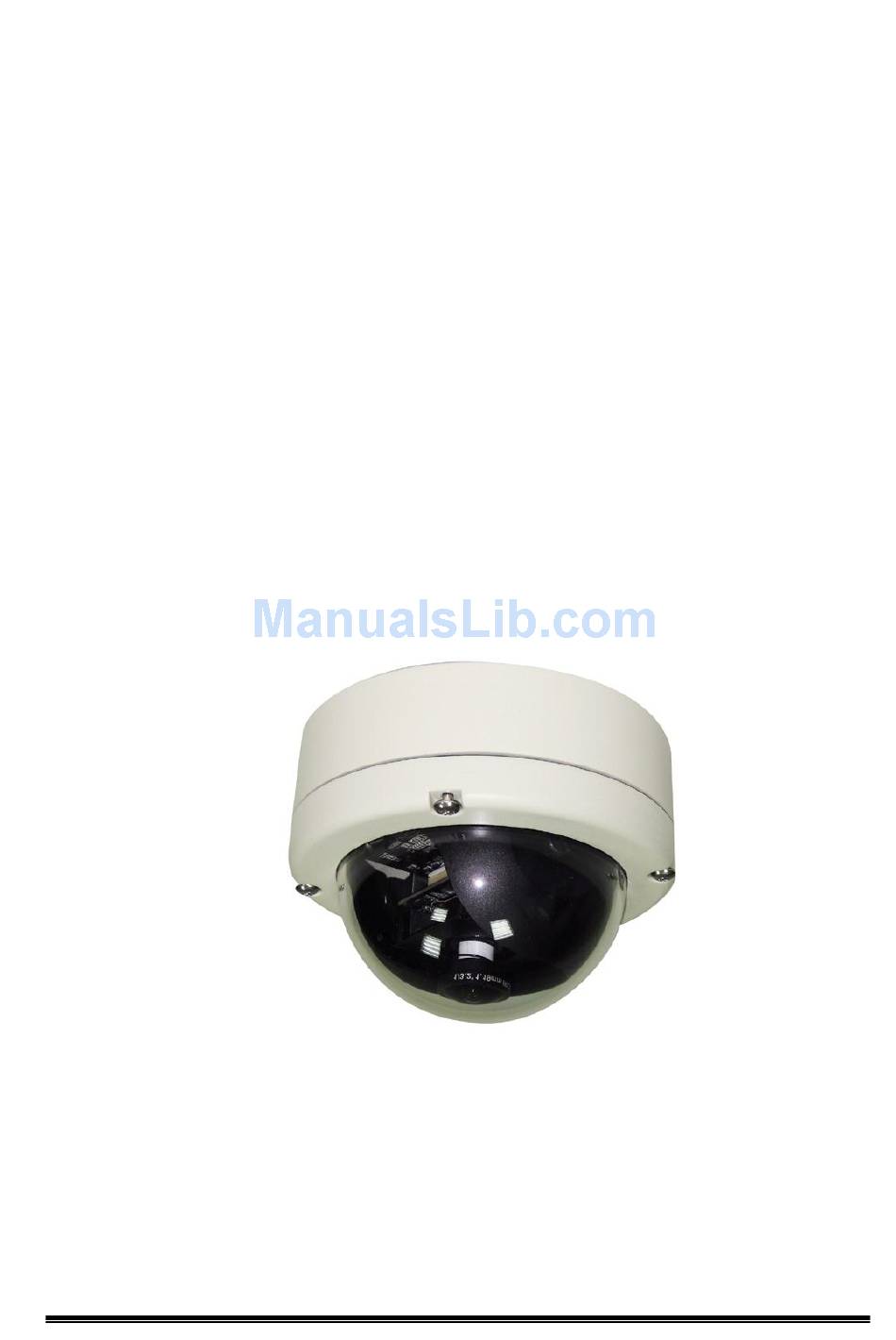

    User Manual VANDAL DOME IP CAMERA...
  • Page 2 WARINGS TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE. DO NOT INSERT ANY METALLIC OBJECT THROUGH VENTILATION GRILLS. CAUTION CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK. DO NOT REMOVE COVER (OR BACK).

  • Page 3: Table Of Contents

    CONTENT Preface Product Specifications III. Product Installation A. Monitor Setting B. Hardware Installation C. IP Assignment D. Install ActiveX control IV. Live Video IP Camera Configuration A. System B. Network C. A/V Setting D. Event List VI. Network Configuration Configuration VII.

  • Page 4: Preface

    Preface This IP Camera is a 2M Vandal dome IP camera. It has the web server built in. User can view real-time video via IE browser. IP Camera supports simultaneously H.264, Motion JPEG & MPEG4 video compression and dual streaming which provides smooth and high video quality. IP66 waterproof housing can adapt to outdoor environment.
  • Page 5 Audio G.711(64K) and G.726(32K,24K) audio compression Input : External Mic in Output: 3.5mm phone jack, Support 2-way. Power over Ethernet 12V DC Power consumption Max ： 6.24W Power Consumption PoE Power consumption Max ： 7.48W Operating Temperature -10°C ~ 45°C Dimensions 126mm (W) x 126mm (L) x 100mm (D) Weight...
  • Page 6 Client System requirement Windows 7, 2000, XP, 2003, Microsoft IE 6.0 or above, Chrome, Safari, Firefox Mobile Support iOS 4.3 or above, Android 1.6 or above. Hardware Suggested Intel Dual Core 2.53G,RAM: 1024MB, Graphic card: 128MB Minimum Intel-C 2.8G, RAM: 512MB, Graphic card: 64MB...

  • Page 7: Product Installation

    III. Product Installation Monitor Setting 1. Right-Click on the desktop. Select “ Properties” 2. Change color quality to highest (32bit).

  • Page 8: Hardware Installation

    B. Hardware Installation 1. Connect power adaptor first. 2. Connect IP Camera to PC or network 3. Set up the network configurations according to the network environment. For further explanation, please refer to chapter VI: “Network Configuration for IP Camera”. 4.
  • Page 9 6. PoE ( Power Over Ethernet)(Optional) 802.3at, 30.0W PoE Switch is recommended Power over Ethernet (PoE) is a technology that integrates power into a standard LAN infrastructure. It enables power to be provided to the network device, such as an IP phone or a network camera, using the same cable as that used for network connection.

  • Page 10: Ip Assignment

    C. IP Assignment 1. You can use the software“IP Installer” to assign the IP address of IP Camera. The software is in the attached CD. 2. The IP installer has two versions of language. Choose one as your need: IPInstallerCht.exe: Chinese version IPInstallerEng.exe: English version 3.
  • Page 11 7. IP Installer will search for all IP Cameras connected on Lan. Click “Search Device” to refresh the result list. 8. Click one of the IP Camera listed on the left side. The network configuration of this IP camera shows on the right side. You may change the “name” of the IP Camera as your preference (eg: Office, warehouse).

  • Page 12: Install Activex Control

    11. If you link to the IP Camera successgully, there pops a box asking you to log in. Please key in the default user name"admin" and password"admin" when you link to the IP Camera for the first time. You can revise the user name and password later.
  • Page 13 When popup the following dialogue box, click “Yes”.

  • Page 14: Live Video

    IV. Live Vide Start an IE browser, type the IP address of the IP camera in the address field. It will show the following dialogue box. Key-in the user name and password. The default user name and password are “admin” and “admin”. When the IP Camera is connected successfully, it shows the following program interface.
  • Page 15 : Get into the administration page : Video Snapshot 3. Use the 4-direction arrows and the “+” ”-” zoom icon for PTZ control. 4. Select the camera view vision. If you choose”180D”, the interface will as below. 5. View Mode: Under 360 degree view vision, you may choose “wall” , “ceiling” ,or “desk”...
  • Page 16 Double-click the video to switch to full screen view. Press “Esc” or double- click the video again back to normal mode. Right-Click the mouse on the video, it will show a pop-up menu. 1. Snapshot: Save a JPEG picture 2. Record Start: Record the video in the local PC. It will ask you where to save the video.

  • Page 17: Ip Camera Configuration

    V. IP Camera Configuration Click to get into the administration page as below. Click to back to the live video page.

  • Page 18: System

    A. System 1. System Information a. Server Information: Set up the camera name, select language, and set up the camera time. Server Name: This is the Camera name. This name will show on the IP Installer. (ii) Select language: There are English, Traditional Chinese, and Simplified Chinese to select.
  • Page 19 2. User Management IP CAMERA supports three different users, administrator, general user, and anonymous user. a. Anonymous User Login: Yes: anonymous login is allowed No: Username & password are required to access this IP camera b. Add user: Type the user name and password, then click “Add/Set”.
  • Page 20 c. Click “edit” or “delete” in the user list to modify them. The system will ask you to key in the password in the pop-up window before you edit the user information. 3. System update: a. To update the firmware online, click “Browse…” to select the firmware. Then click “Upgrade”...

  • Page 21: Network

    B. Network 1. IP Setting IP Camera supports DHCP and static IP. a. IP Assignment DHCP: Using DHCP, IP CAMERA will get all the network parameters automatically. (ii) Static IP: Please type in IP address, subnet mask, gateway, and DNS manually.
  • Page 22 c. Port assignment: Web Page Port: setup web page connecting port and video transmitting port (Default: 80) (ii) HTTP Port:setup HTTPS connecting port (Default:443) d. UPnP (Universal Plug and play): This IP camera supports UPnP, If this service is enabled on your computer, the camera will automatically be detected and a new icon will be added to “My Network Places.”...
  • Page 23 e. RTSP setting RTSP Server: enable or disable (ii) RTSP Port: setup port for RTSP transmitting (Default: 554) (iii) RTSP Start and End Port: in RTSP mode, you may use TCP and UDP for connecting. TCP connection uses RTSP Port (554). UDP connection uses RTSP Start and End Port.
  • Page 24 i. LLTD If your PC supports LLTD, enable this function then you can check the connection status, properties, and device position(like IP address) of this IP Camera in the network map. 2. Advanced a. Https (Hypertext Transfer Protocol Secure): Https can help protect streaming data transmission over the internal on the higher security level.
  • Page 25 (iii) Installed Certificate: remove Certificate in .Installed Certificate mode. There will be a warning message to check again. (iv) There are two ways to set Certificate- Install Signed Certificate and Create Self-Signed Certificate. b. SNMP(Simple Network Management Protocol) Enable SNMPv1 or SNMPv2 and write the name of Write Community and Read Community.
  • Page 26 (iii) Enable SNMPv1/SNMPv2 Trap can detect the Trap server. Please set what event need to detect. c. Access List: ”Enable IP address filter” can set IP address which can allow or deny to this camera. There are two options, single and range, for user to set the IP address.
  • Page 27 The EAPOL protocol support service identification and optional point to point encryption over the local LAN segment. Please check what version of the authenticator and authentication server support. This camera supports EAP-TLS method. Please enter ID, password issued by the CA, then upload related certificates. 3.
  • Page 28 b. DDNS: It supports DDNS (Dynamic DNS) service. Enable this service (ii) Key-in the DynDNS server name, user name, and password. (iii) Set up the IP Schedule update refreshing rate. (iv) Click “Apply” (v) If setting up IP schedule update too frequently, the IP may be blocked. In general, schedule update every day (1440 minutes) is recommended (vi) DDNS Status •...
  • Page 29 configuration first. b. FTP: To send out the video via mail of ftp, please set up the configuration first. c. Samba: Select this option to send the media files via a network neighborhood when an event is triggered...

  • Page 30: A/V Setting

    C. A/V Setting 1. Image Setting a. Privacy Mask For the security purpose, there are three areas can be setup for privacy mask. Click Area button first and pull an area on the above image. Finally, click Save button to reserve the setting. Please refer to the details below for Image setting: b.
  • Page 31 a. Basic Mode of Streaming 1 and Streaming 2: Resolution: There are 5 resolutions can be chosen: 1920x1080, 1280x720, ,640x480, 320x240, 176x144 (ii) Quality: There are 5 levels to choose: Best/ High/ Standard/ Medium/ Low The higher the quality is, the bigger the file size is. It might affect Internet transmitting speed if the file gets too large.
  • Page 32 Resolution There are 5 resolutions can be chosen: 1920x1080, 1280x720, ,640x480, 320x240, 176x144 (ii) Bitrate Control Mode There are CBR(Constant Bit Rate) and VBR(Variable Bit Rate) to be choosed. (iii) Video Quantitative The quality adjustment of VBR. You can choose 1~10 compression rate (iv) Video Bitrate The quality adjustment of CBR.
  • Page 33 c. 3GPP Streaming mode: 3GPP mode fixed setting: 176x144 resolution, 5FPS, MPEG4 format Enable or Disable 3GPP Streaming (ii) 3GPP Path: 3GPP output connecting route 3. Audio: IP Camera supports 2-way audio. User can send audio from IP Camera mic input to remote PC; User can also send audio from remote PC mic to IP Camera’s external speaker.

  • Page 34: Event List

    D. Event List IP Camera provides multiple event settings. 1. Event Setting a. Motion Detection IP CAMERA allows 3 areas motion detection. When motion is triggered, it can send video to some specific mail addresses, transmit the video to remote ftp server, and save video to local SD card. To set up the motion area, click “Area Setting”.
  • Page 35 detected, I/O, or other devices got triggered d. Network Dis-connected When the network is down, it will save the video to local SD card. This function is only enabled under wire connection. e. Network IP check: Whenever the connection is down, it records the video to SD card. Make sure the video recording is continuous.
  • Page 36 a. Input Setting: IP Camera supports input and output. When the input condition is triggered, it can send the video to some specific mail addresses, transmit the video to remote FTP server, trigger the relay, save video to local SD card or to SAMBA.
  • Page 37 Choose “The 1st day” means the recoding file will be keep one day. Example: It is five o’clock now. Choose “The 1st day”. The files will be kept from five o’clock yesterday to five o’clock today. Note ： The use of the SD card will affect the operation of the IP Camera slightly, such as affecting the frame rate of the video.

  • Page 38: Network Configuration

    VI. Network Configuration • Configuration 1: a. Internet Access: ADSL or Cable Modem b. IP address: One real IP or one dynamic IP c. Only IP Camera connects to the internet d. For fixed real IP, set up the IP into IP Camera. For dynamic IP, start PPPoE. •...

  • Page 39: I/O Configuration

    • Configuration 3: a. Internet Access: ADSL or Cable Modem b. IP address: one real IP or one dynamic IP c. IP Camera and PC connect to the internet d. Device needed: IP sharing e. Use virtual IP, set up port forwarding in IP sharing. VII.
  • Page 40 a. Please connect the COM & N.O / N.C pin (depend on the device) to the external relay (buzzer) device. b. Please connect the GND &Alarm pin to the external Trigger Device. • I/O Setup Click I/O Setting from the system setup page via IE, and check “Out1” to enable I/O signal.

  • Page 41: Viii.factory Default

    VIII.Factory Default • To revert back to the default IP address and password, please follow the following steps. • Remove the power, Internet, and the dome cover. Press and hold the button as the picture below. • Connect power to the camera, and do not release the button during the system booting.

  • Page 42: Appendix

    Appendix The following is the Micro SD Card recommended: Transcend SDHC class4 16GB SDHC class4 32GB class4 16GB class4 32GB SDHC class6 4GB SDHC class6 8GB SDHC class6 16GB class6 4GB class6 8GB class6 16GB SDHC class10 4GB SDHC class10 8GB SDHC class10 16GB SanDisk SDHC class4 4GB...
