Fan Starter 4 List of contents Page CE, Declaration of conformity Safety Technical data Accessories Description Installation Component list Lay out Main circuits diagram Control circuits diagram Interconnection diagram, general Interconnection diagram, OPTION Interconnection diagram, FILTERMAX...

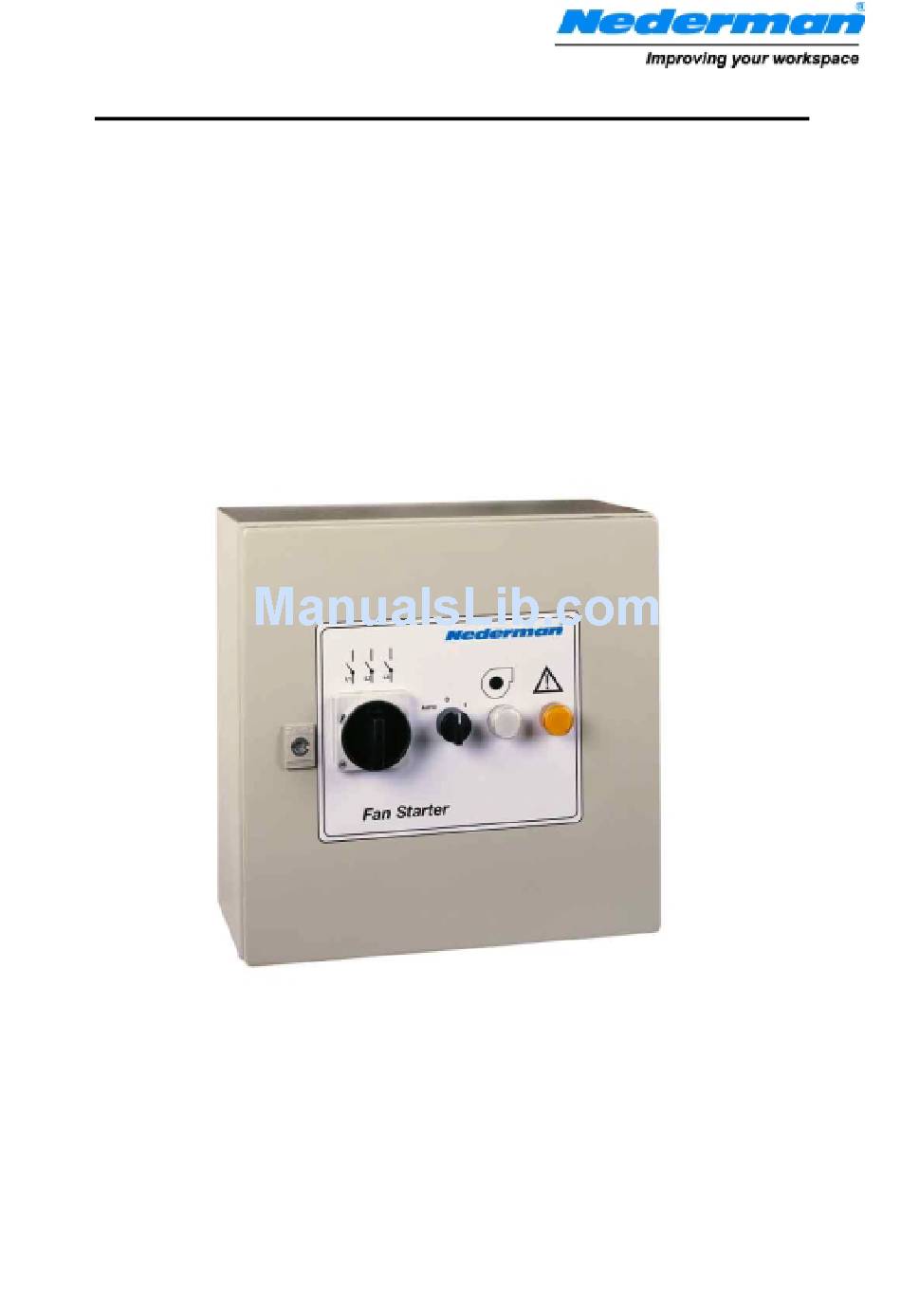

372149 DESCRIPTION Fan Starter 4 is a direct starter for Nederman NCF Fans. The Fan Starter is fitted with a 4-pole main switch interlocked with the door so that the door can not be opened if the switch is on.
Page 5
Fan Starter 4 The Fan Starter can be started and stopped with the switch on the door, by turning it to position "1" it starts and by turning back to "0" it stops. Position "AUTO" is used to start and stop the Fan Starter when connecting external start/stop signals.
Fan Starter 4 Installation Study these installation instructions carefully before proceeding. Failure to observe the warnings and instructions given may cause a malfunction or personal hazard. Warning! Before you begin read "Safety" on page 3. Dimension the cables and fuses in accordance with the motor current. Always pay attention to local legislation when sizing the cables and fuses.
Fan Starter 4 COMPONENT LIST ITEM NAME MANUFACTURER TYPE REMARKS Enclosure Himel CRN-44/200 Mounting Plate MM-44 Gland Plate TSA-CRN/C Wall Fixing Brackets PFCR Electronic overload Allen-Bradley 193-EA1FB 3,7 - 12 A relay Pilot Lamp Allen-Bradley 800EP-PM7D0 Transparent Incandescent Lamp 800E-N157 Ba 9s 24 V 1,4 W Pilot Lamp Allen-Bradley...
