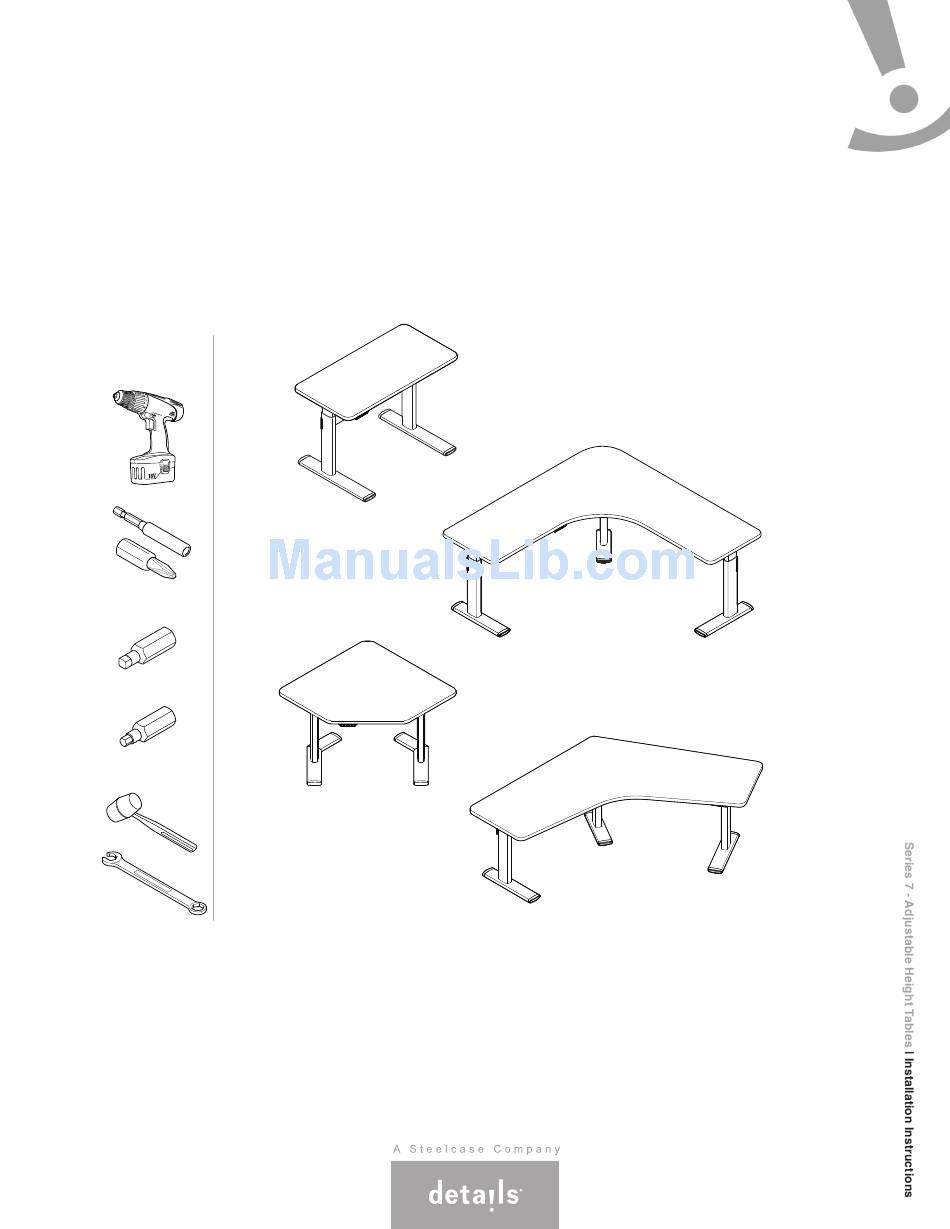

- Page 1 Page 1 of 22 Series 7 - Adjustable Height Tables Installation Instructions 005255D Rev D Tools required: #2 Phillips Bit with Extension Square Drive Bit Hex Drive Bit...
- Page 2 Page 2 of 22 005255D Rev D IMPORTANT SAFETY INSTRUCTIONS When using an electrical furnishing, basic precautions should always be followed, including the following: Read all instructions before using (this furnishing). DANGER - To reduce the risk of electric shock: 1.
-
Page 3: Table Of Contents
Page 3 of 22 005255D Rev D TABLE OF CONTENTS: PAGE(S): Lets Get Started!.................... Attaching Stretchers..................Attaching Mounting Plate to Legs..............6 & 7 Mounting Legs to Worksurface..............8 & 9 Attaching Control Box & Wire Managers............10 & 11 Connecting &... -
Page 4: Lets Get Started
Page 4 of 22 005255D Rev D Let's Get Started! Prepare a large open space to assemble the table. • Sweep the floor! Screws and small parts can damage the worksurface. • Put down a CLEAN shipping blanket to protect the worksurface. Unpack the worksurface and place on the shipping blanket upside-down. -
Page 5: Attaching Stretchers
Page 5 of 22 005255D Rev D Attaching Stretchers Layout the left and right stretcher assembly and the center connector with the dovetails pointing down. Loosely install the center connector to the left and right stretcher using two (2) 1/4-20 type F flat head screws with phillips #3 drive...do not tighten. -
Page 6: Attaching Mounting Plate To Legs
Page 6 of 22 005255D Rev D Attaching Mounting Plate to Legs For 2-Leg Tables: For each lift column, fold the electrical 'pig-tail' towards the center of the surface. Secure in the notch provided in each lift column. ELECTRICAL PIGTAIL NOTCH Locate and install each mounting plate using 4mm hex head fasteners provided. - Page 7 Page 7 of 22 005255D Rev D ELECTRICAL PIGTAIL Attaching Mounting Plate to Legs (cont.) NOTE: The center lift For 3-Leg Tables: column ‘pig-tail’ can be folded in either direction. For the left and right lift columns, fold the electrical 'pig-tail' CENTER towards the center lift column using the notch provided in COLUMN...
-
Page 8: Mounting Legs To Worksurface
Page 8 of 22 005255D Rev D Mounting Legs to Worksurfaces Worksurface Center Leg Worksurface Mounting Plate Pilot Holes Mounting Plate Pilot Holes TOWARD CENTER OF WORKSURFACE = PILOT HOLE = NO PILOT HOLE PROVIDED For 2-Leg Tables: With the top still upside down on the floor, turn the base over (flipping is a 2 person job), and align the attachment plates to the pre-drilled holes in the top. - Page 9 Page 9 of 22 005255D Rev D Mounting Legs to Worksurfaces (cont.) For 3-Leg Tables: With the top still upside down on the floor, turn the base over (flipping is a 2 person job), and align the attachment plates to the pre-drilled holes in the top. Align the center lifting column first.
-
Page 10: Attaching Control Box & Wire Managers
Page 10 of 22 005255D Rev D Attaching Control Box & Wire Managers Install control box in the predetermined location, using pre-drilled holes. CONTROL BOX Install the wire management cableway on the underside of the worksurface at the rear. WIRE MANAGER WIRE MANAGER 2”... -
Page 11: Attaching Control Box & Wire Managers
Page 11 of 22 005255D Rev D Attaching Control Box & Wire Managers (cont.) Install the wire management cableways onto the underside of the worksurface as shown. WIRE MANAGER WIRE MANAGER 2” MINIMUM 2-1/2” MAXIMUM... -
Page 12: Connecting & Routing Cables
Page 12 of 22 005255D Rev D Connecting & Routing Cables For 2-Leg Tables: Connect the cables to each lifting column and connect the terminal end to the control box. Route these cables in the wire management cableway provided. Refer to the Wiring Guide for more information on page 20. -
Page 13: Connecting & Routing Cables
Page 13 of 22 005255D Rev D Connecting & Routing Cables (cont.) For 3-Leg Tables: Connect the cables to each of the three lifting columns and connect the terminal end to the control box. Route these cables in the wire management cableway provided. -
Page 14: Attaching The Controller
Page 14 of 22 005255D Rev D Attaching the Controller Install the controller to the underside of the worksurface on the side preferred by the user. (We recommend it be placed toward the outside of the table to avoid interference in the workspace.) Push Button Stick-On Controller... - Page 15 Page 15 of 22 005255D Rev D Attaching the Controller (cont.) Install the wire keepers for the control wire. Peel off paper backing and stick to worksurface. Place wire into each wire keeper. CONTROL WIRE WIRE KEEPER PAPER BACKING...
-
Page 16: Finishing The Leg Installation
Page 16 of 22 005255D Rev D Finishing the Leg Installation Plug unit in and check for binding, by running the table base all the way through its range of motion and back again, then lower to bottom and unplug unit. Install the remaining fasteners in each of the remaining holes and tighten ALL screws securely. -
Page 17: Finishing The Table Assembly
Page 17 of 22 005255D Rev D Finishing the Table Assembly Carefully turn the table over (2 person operation). NOTE: Do NOT use either lifting column as a brace when turning the table over, as this may cause binding. The top must be lifted free, rotated, and set down carefully. -
Page 18: Finishing The Table Assembly
Page 18 of 22 005255D Rev D Finishing the Table Assembly (cont.) Before use, the table must be completely leveled, front-to-back and Before articulation, you must synchronize the lifting columns as side-to-side using the height adjustable glides. Failure to do this outlined below. -
Page 19: Guidelines On Moving The Table
Page 19 of 22 005255D Rev D Guidelines on Moving the Table When possible, the table should be moved in a horizontal (flat) position. If the table must be moved vertically (i.e. standing on a pallet), care must be taken to ensure no side pressure is placed on any of the lifting columns as it is tipped into position, during transport, and when tipped off the pallet at the new location. -
Page 20: Wiring Guide
Once you have completed the wiring, use the Wire Managers to hold all the cables and minimize possible entanglements. NOTE: Vertical wire management solutions are also available from Details. Contact your local dealer or Steelcase.com for more information. RIGHT LIFTING... -
Page 21: Appendix A: 2-Piece Worksurface Assembly
Page 21 of 22 005255D Rev D Appendix A: 2-Piece Worksurface Assembly Position top pieces upside down on the assembly surface and align with wood spline (or biscuits) provided. Optional Biscuits SPLINE Install draw bolts and tighten with 5/16" or 7/16" open end wrench. -
Page 22: Appendix A: 2-Piece Worksurface Assembly
PRIMARY HALF PRIMARY HALF EXTENSION HALF EXTENSION HALF PLANAR IMPROVED SLOT MIS-ALIGNMENT ALIGNMENT FOLDED SHEETS SPLINE OF PAPER TO SHIM Call 888.783.3522 or visit www.steelcase.com/details P.O. Box 1967 Grand Rapids, MI 49501-1967 ©2013 Steelcase Inc. All rights reserved. 4/13...
