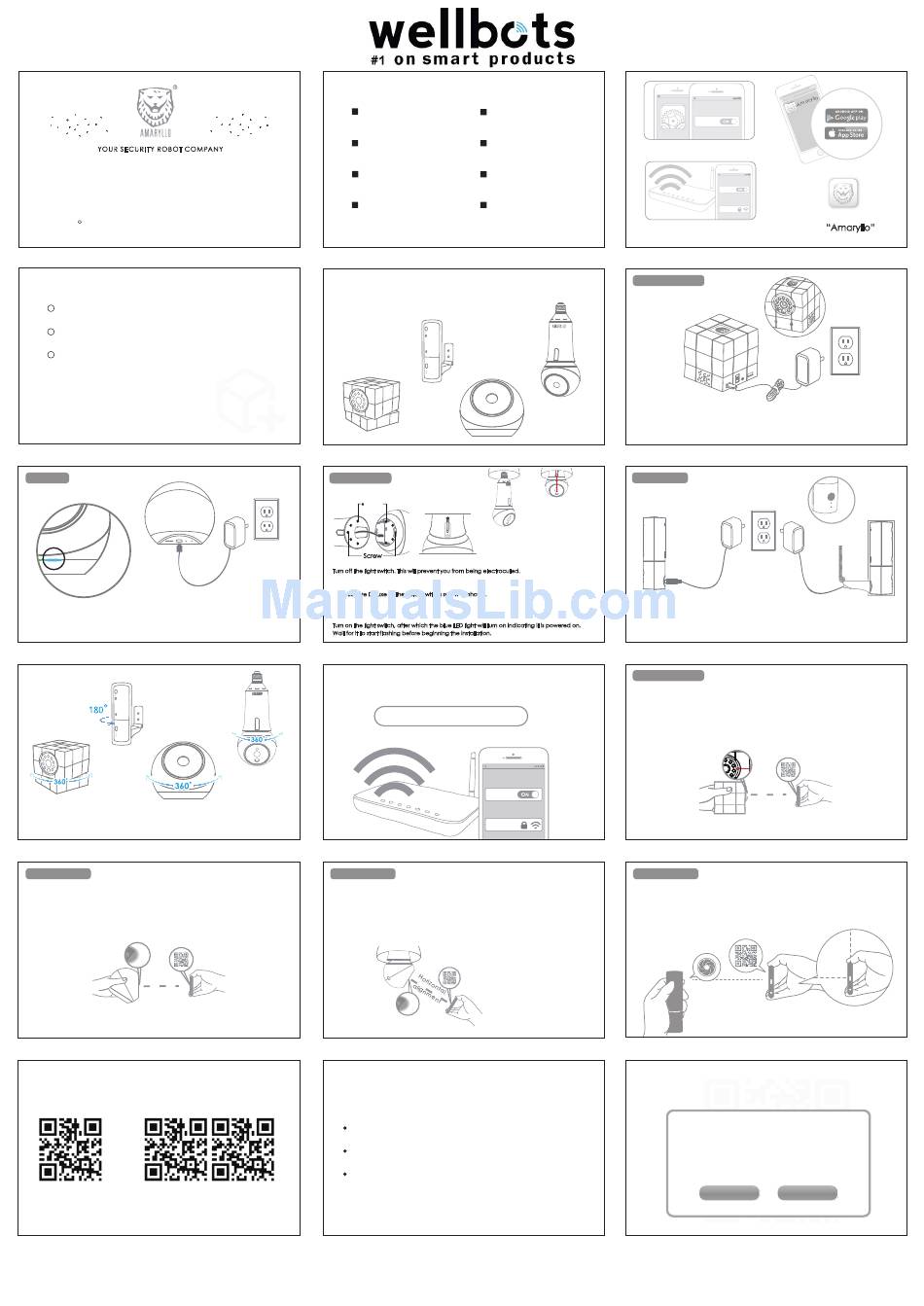

wellbots iCam User Manual

YOUR SE CURI T Y ROBOT COMPANY
User Manual
| w w w . a m a r y l l o . e u | s a l e s . a i @ a m a r y l l o . e u | s u p p o r t . a i @ a m a r y l l o . e u |
2015 Amaryllo International B.V. All Rights Reserved.
c
Install a new camera
Obtain from another device
Install a new camera
(with pre-configured network)

Power on

iCamPRO
Connect the micro USB cable to a power outlet.
The blue LED light will be on when the camera is powered.
Wait for it to start flashing before beginning installation.
After power-on, it will take 25 seconds to
start calibration cycle. (for remote models)

Scan QR code

iCamPRO
1. Your device will automatically generate a QR code.
2. Place the camera 4" ~11.8" (10~30 cm) in front of the smartphone's QR code or
7.8" ~11.8" (20~30 cm) in front of tablet's QR code. Please wait for a beep to
confirm reception. After you hear a beep, you can put the phone down.
Aligned
90º
4" ~11.8"
Make sure the
lens is clean Horizontal
alignment
Smartphone or portable device
Make sure your device and the camera are parallel to each other.
iOS
Android
The timer will show the remaining time to finish the installation. If time
runs out, you will need to start the installation over again.

Install the camera

Operate the camera App

Control the camera rotation
(for remote models)
Led Indication
6007150000110 V1.0
What Amaryllo product are you installing?
3
Power on
iCamPRO Deluxe
Four
Fig.1.
hooks
Screw
Turn off the light switch. This will prevent you from being electrocuted.
Fig.1. Connect the micro USB cable to the iCamPRO Deluxe..
Align Deluxe to the holder through the four hooks.
Fig.2. Secure Deluxe to the holder with a screw as shown.
Fig.3. Screw in the Deluxe in a clockwise motion till it is fixed.
Fig.4. Rotate in a counterclockwise direction to the desired viewing angle.
Do not overpower the stopper when the device rotates to the end.
Turn on the light switch, after which the blue LED light will turn on indicating it is powered on.
6
Wait for it to start flashing before beginning the installation.
Enter the password of your Wi-Fi router
Password
9
Scan QR code
iCamPRO Deluxe
Follow few steps below to complete scanning QR code.
1. Your device will automatically generate a QR code.
2. Place the camera 4" ~11.8" (10~30 cm) in front of the smartphone's QR code or
7.8" ~11.8" (20~30 cm) in front of tablet's QR code. Please wait for a beep to
confirm reception. After you hear a beep, you can put the phone down.
Make sure the
lens is clean
Aligned
12
Make sure your device and the camera are parallel to each other.
You will hear one beep when the camera install QR completes.
You will hear two beeps when the camera setup completes.
The green LED remains on when Wi-Fi is working properly.
15
Setting

Troubleshooting

Installation Instructions
How to use iCare
remote control
1
4
Vertical
Fig.3. Fig.4.
Alignment
Counterclockwise
Fig.2.
rotation
Clockwise
rotation
7

Settings

Wi-Fi

Choose a Network

Wi-Fi
10
90º
Smartphone or portable device
13
16
Settings
Wi-Fi
Settings
Switch on your phone's Wi-Fi
Settings
Wi-Fi
Choose a Network
Wi-Fi
Please download app
called
Connect your phone to a router
install our products.
Power on
iCam / iBabi / iCare
Connect the micro USB cable to a power outlet.
The blue LED light will be on when the camera is powered.
Wait for it to start flashing before beginning installation.
Power on
iSensor / Patio
Connect the USB cable to a power outlet.
The blue LED light will be on when the camera is powered.
Wait for it to start flashing before beginning installation.
Scan QR code
iCam / iBabi / iCare
Follow few steps below to complete scanning QR code.
1. Your device will automatically generate a QR code.
2. Place the camera 4" ~11.8" (10~30 cm) in front of the smartphone's QR code or
7.8" ~11.8" (20~30 cm) in front of tablet's QR code. Please wait for a beep to
confirm reception. After you hear a beep, you can put the phone down.
Aligned
90º
4" ~11.8"
Make sure the
lens is clean Horizontal
alignment
Smartphone or portable device
Make sure your device and the camera are parallel to each other.
Scan QR code
iSensor / Patio
1. Your device will automatically generate a QR code.
2. Place the camera 4" ~11.8" (10~30 cm) in front of the smartphone's QR code or
7.8" ~11.8" (20~30 cm) in front of tablet's QR code. Please wait for a beep to
confirm reception. After you hear a beep, you can put the phone down.
Aligned
Make sure the
lens is clean
4" ~11.8"
Horizontal
alignment
Smartphone or portable device
Make sure your device and the
camera are parallel to each other.
If QR scan failed, it will ask:
Do you want to try again?
You can press"Retry"to try again .
It is recommended that you check
your information and try again.
Check
Retry
information
