ExaSAN B08S3-PS User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
`
Support Host Bus Adapter:
 PCIe 2.0: Z1M-G2
 PCIe 3.0: Z2M-G3, Z2D-G3
Support Host Convertor:
 Thunderbolt 2 to PCIe 2.0: C1M-G2
Support Switch System:
 PCIe 2.0: SW08-Q4, SW16, SWF16

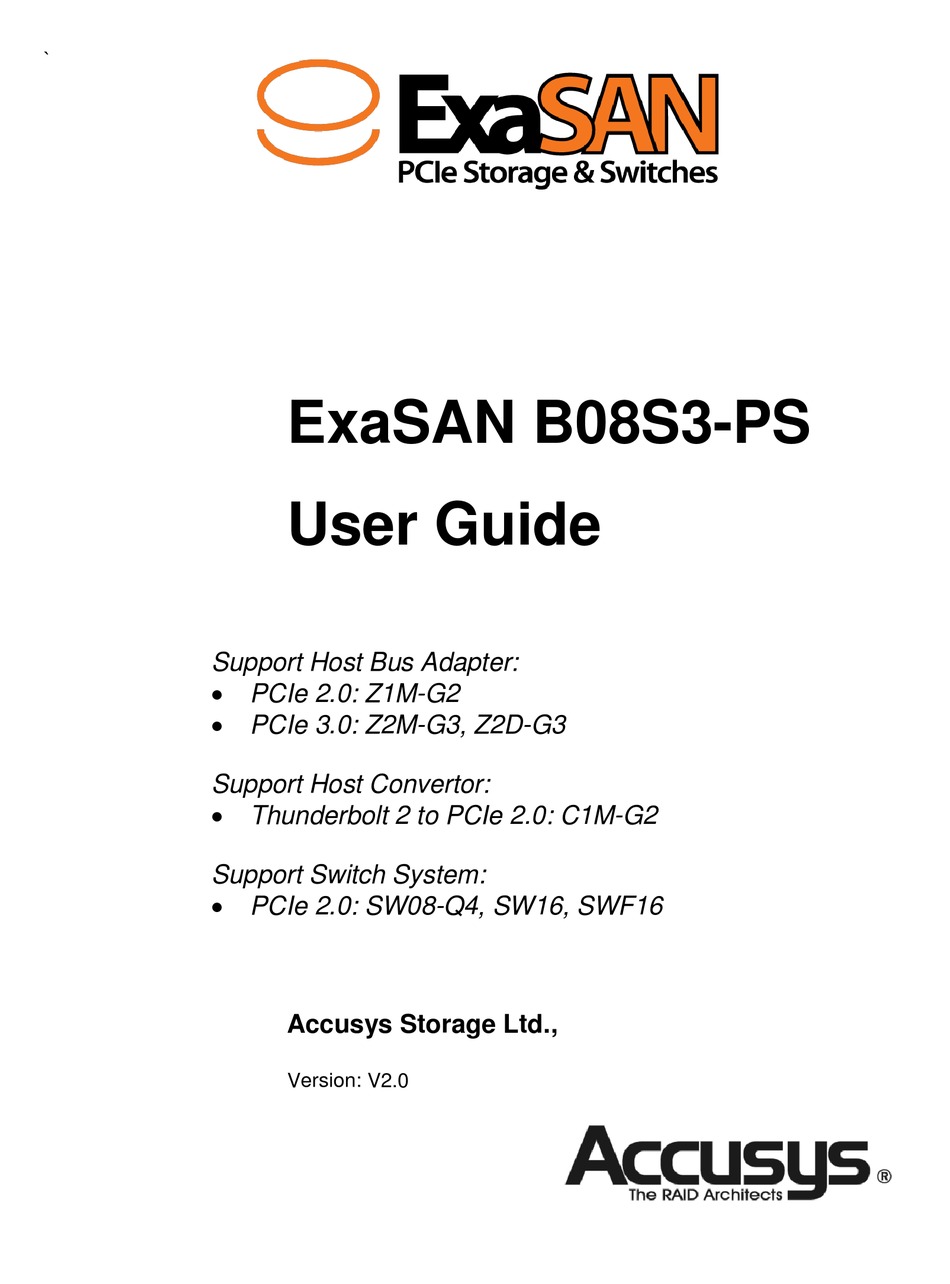

ExaSAN B08S3-PS
User Guide
Accusys Storage Ltd.,
Version: V2.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the B08S3-PS and is the answer not in the manual?

Questions and answers

Summary of Contents for ExaSAN B08S3-PS

  • Page 1 ExaSAN B08S3-PS User Guide Support Host Bus Adapter:  PCIe 2.0: Z1M-G2  PCIe 3.0: Z2M-G3, Z2D-G3 Support Host Convertor:  Thunderbolt 2 to PCIe 2.0: C1M-G2 Support Switch System:  PCIe 2.0: SW08-Q4, SW16, SWF16 Accusys Storage Ltd., Version: V2.0...
  • Page 2 Revision Sheet Revision Sheet Reversion Date Revision Description V1.0 11/10/2012 Initial release on CD. V1.1 12/19/2012 Modify page 4-3(erase clear log explanation and add DAS and SAN log file path) V1.1.1 02/26/2013 Delete 5M copper cable on page 1-4 and 1-6 V1.1.2 12/24/2013 Modify Heartbeat LED indicator to flash on page 3-5...

  • Page 3: Notice

    The manufacturer shall not be liable for any damage, or the loss of data resulting from the performance or use of the information contained herein. About This Guide Congratulations on your purchase of the ExaSAN (pronounced X-sa-SAN) B08S3-PS. The 8 bay PCIe 3.0 tower model of the ExaSAN family, specifically designed for media streaming workflow.
  • Page 4 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

  • Page 5: Table Of Contents

    Notice................................ii About This Guide ............................ii Guide to Conventions ..........................ii Trademarks ..............................ii Table of content ............................iv Introducing ExaSAN PCIe 3.0 Storage System ................1-1 Overview ..........................1-1 1.1.1 What is the ExaSAN Solution......................1-1 1.1.2 ExaSAN B08S3-PS features .......................1-3 What’s in the Box ........................
  • Page 6 Snapshot ............................4-19 4.6.6 Health Center ............................4-22 4.6.7 Unlock Drives ...........................4-23 Updating the ExaSAN RAID system Firmware ..............4-24 Download controller log ....................... 4-25 Disk RW Test ........................4-25 RAID Overview ..........................5-1 How RAID Works ........................5-1 RAID Levels ..........................5-1 5.2.1...

  • Page 7: Introducing Exasan Pcie 3.0 Storage System

    1. Introduction Introducing ExaSAN PCIe 3.0 Storage System User Guide...

  • Page 8: Overview

    The current ExaSAN products employ PCIe3.0 protocol that provides 8 Gb/s per lane transfers. With 4 lane QSFP (Quad SFP) connector and cable, ExaSAN can transfer up to 32 Gb/s by using single connection. Post production work including non-linear editing (NLE) requires high bandwidth storage to quickly move the volume of data being processed and ExaSAN storage solution meets those demands.
  • Page 9 Whether it’s collaborative video editing in a post-production workgroup, or a shared research project in a university, the ExaSAN solution offers a range of performance levels and storage capacities that scale to meet the needs of small-to-medium-sized organizations. Equally important and useful is its integrated design, centralized administration and monitoring, and a suite of built-in management tools;...

  • Page 10: Exasan B08S3-Ps Features

    1. Introduction 1.1.2 ExaSAN B08S3-PS features 1. Hardware Specifications  One PCIe3.0 8Gb/s x4 lanes host port, transfers up to 32 Gb/s  Hardware XOR/Multi-Parity engine  2GB DDRIII memory, ECC-protected  Support 8 x 2.5” SAS/SATA drive and SSD 2.

  • Page 11: What's In The Box

    Copper 2M (standard), Optical 10M, 30M, 50M and100M. 1.2 What’s in the Box Your ExaSAN B08S3-PS is shipped in special packaging to provide protection during transportation. Carefully check your carton contents against the included packing list, or the inside flap of the box, and your original purchase order. You should have the items as described in the sections below.

  • Page 12: Your B08S3-Ps At A Glance

    1. Introduction 1.3 Your B08S3-PS at a Glance This section helps you get familiar with the physical appearance of your ExaSAN B08S3-PS. 1.3.1 Front view Name Description Power status Blue indicates the power is working normally Access Flashing Blue indicates the host is accessing...

  • Page 13: Rear Panel

    1. Introduction Disk Status LED #1 (Access LED) LED #2 (Status LED) Disk Online/Locked Steady Green No Disk/Disk Fail Steady Red Disk Access/Initialization Flashing Blue Steady Green Disk Rebuild Flashing Blue Switching in Red and Green Extend Drives: Steady Red Disk Expansion Flashing Blue Original Drives: Steady Green...

  • Page 14: Z2M-G3

    Amber SAN mode enable QSFP Port 1 Green PCIe3.0 Link status LED2 Flash Green PCIe2.0 link status LED3 Blue Data access status For connection with ExaSAN storage directly. LED1 Reserve Green PCIe3.0 Link status QSFP Port 2 LED2 Flash Green PCIe2.0 link status...

  • Page 15: Preparing To Install Exasan B08S3-Ps

    2. Preparation Preparing to Install ExaSAN B08S3-PS User Guide...

  • Page 16: Precaution For Handling The System

    5. Allow additional room at the front and back of the unit for service. 6. The ExaSAN B08S3-PS uses several cables and cords. It’s a good idea to determine how they will be arranged at the rear of the system, and where the cables will be routed to connect to the host systems and RAID disk systems.

  • Page 17: Operating Environment

    Operating temperature: 0°C to 40°C (32°F to 104°F) b. Operating humidity: 5-85%, non-condensing c. Storage humidity:5%-95%, non-condensing 2.5 Security To ensure the security of the ExaSAN B08S3-PS, make certain that the chosen location meets your security requirements. User Guide Page 2-2...

  • Page 18: Installing The Exasan B08S3-Ps

    3. Installation Installing the ExaSAN B08S3-PS User Guide...

  • Page 19: Installing Disk Drive

    Before the ExaSAN B08S3-PS is ready to be connected and powered on, you must install the HBA card in the workgroup client system. The HBA card is compatible with PCIe x8, x16 slots and both PCIe 2.0, 3.0 standards.

  • Page 20: Installing The Hba Card

    6. Connect QSFP cable to Z2M HBA, there are DAS and SAN ports.  DAS port: Enable for DAS (Direct-Attached Storage) mode.  SAN port: Enable for SAN (Storage-Attached Network) mode, support to ExaSAN switch. (Refer to link for more detail of how to build a SAN environment. http://www.accusys.com.tw/ExaSAN/SW16.html#) User Guide...

  • Page 21: Install Driver And Gui

    3. Installation 7. Connect the other end of QSFP connector to ExaSAN B08S3-PS. 8. Power on B08S3-PS, RAID will ready in few seconds with sounding a short bi, and then power on host system to install driver and GUI. Caution Once powered on, Do NOT remove the QSFP PCIe cable when in use to avoid data loss and corruption.

  • Page 22: Installing Driver And Gui On Linux

    3. Installation 3.3.2 Installing driver and GUI on Linux Linux driver and GUI must be installed manually; following procedures will guide how to do  Driver installation  RAIDGuardX installation 3.3.2.1 Driver Installation You must have your Linux system with developmental environment, in order to make driver for respective Linux kernel.
  • Page 23 3. Installation Open a terminal window, change to Linux driver source directory and type command ‘make’ to build driver file ‘ACS6x.ko’ # sudo make # sudo insmod ACS6x.ko # sudo lsmod //to see if ACS6x driver is running Start ACS6x.ko driver automatically after reboot A.

  • Page 24: Raidguardx Installation

    GC location: /{ExaSAN model}/GUI/Client/x.x.x.zip Note  If ExaSAN storage is connected on PCIe switch, GS may not necessary; GC can manage RAID system remotely through Ethernet. 2. Perform GS, open a terminal console, and enter the following commands: # sudo cd /Accusys/GS/Linux/X.X.X # sudo chmod -R 777 SourceCode # sudo cd /Accusys/GS/Linux/X.X.X/SourceCode/...

  • Page 25: Create Array

    4. Perform GC, enter the following commands # sudo cd /Accusys/GC/3.x.x./3.x.x/ # sudo java –jar RAIDGuardX.jar //RAIDGuardX Client console would appear 5. Now you can add controller to manage ExaSAN RAID system. 3.4 Create Array Array can be created by few clicks on RAIDGuardX (refer to...
  • Page 26 3. Installation 2. New disk volume should appear on host OS immediately, format it as type as you want and enjoy the high speed access on ExaSAN storage. User Guide Page 3-8...
  • Page 27 4. How to Use Using RAIDGuardX User Guide...

  • Page 28: Using Raidguardx Gui

    5. RAID Using RAIDGuardX GUI 4.1 RAIDGuardX Overview RAIDGuardX support local and remote monitoring of multiple controllers that are connected to the same network, which consist of 2 components: RAIDGuardX-Server and RAIDGuardX- Client. RAIDGuardX-Client: A java-based console for managing and monitoring RAID system. RAIDGuardX-Server: RAIDGuardX-Server is an agent service in charge of communication between RAIDGuardX-Client and RAID controller;...

  • Page 29: Raidguardx Main Console

    5. RAID 4.1.2 RAIDGuardX main console Function Description Add controller into RAIDGuardX (for DAS only) Monitoring Buttons Remove controller from RAIDGuardX Create array in the RAID system Delete array in the RAID system Email to set email notification Drive Lag Proof Enable/ Disable NCQ mode Enable/ Disable SMART Mode Enable/ Disable Preference...

  • Page 30: Add/Remove Controller

    5. RAID 4.2 Add/Remove Controller RAIDGuardX can manage the RAID controller locally or remotely via intranet access. 4.2.1 Add Controller 1. Open RAIDGuardX-Client, you may add controller by locally or remotely; Locally: Click Add Controller to display a list of available controllers Remote: Click Controller tab >...

  • Page 31: Create/Delete An Array

    5. RAID 4.3 Create/Delete an Array This chapter will guide you how to use RAIDGuardX to create/delete disk array. 4.3.1 Create Array 1. Click icon Create Array, then create array page will pop up as below, 2. Select the RAID level from the drop down menu. Available levels are: 0, 1, 5, 6, 0+1, enhanced JBOD.
  • Page 32 5. RAID Click the initialization type: On-the-fly initialization or Performance evaluation. On-the-fly initialization (Default) – While RAID systems record the initialized sectors in the bitmap, you can still use the RAID system during the initialization. Performance evaluation – Select to evaluate the performance of the target array. It will take no time for array initialization;...

  • Page 33: Delete An Array

    5. RAID 4.3.2 Delete an Array 1. Click icon Create Array on RAIDGuardX, then it will pop up a dialog as below picture 2. Click on the drive icon of the array to be deleted. 3. Check the Confirm box. Click Delete Array to complete the process. Note Array cannot be deleted during any actions, e.g.

  • Page 34: Email Notification

    5. RAID Email Notification It may be necessary for network administrators to receive e-mails in the event of errors, alerts, and changes to the RAID array. These alerts can be e-mailed to a maximum of 20 e-mail addresses. 1. Mailing List Enter the e-mail address of people to receive controller error reports.

  • Page 35: Preference

    5. RAID 4.5 Preference 4.5.1 Disk Lag Proof This feature ensures the stability and continuity of the RAID performance. In RAID 5 and RAID 6, DLP prevents the aging or slow responds of a single hard disk from influencing the overall performance.

  • Page 36: Ncq

    5. RAID In the event of performance degradation or delay of a single drive due to aging, the RAID system reads both data and parity stripes concurrently. It bypasses the slow reads and returns data to the host with the regenerated data and to provide stable performance based on the RAID parity.

  • Page 37: Beeper

    5. RAID 4.5.4 Beeper To enable/disable system beeper, default is enabled. 4.5.5 Equalization Mode Regardless the transmission method, the data transmission speed cannot be guaranteed at all times. This feature allows the continuous I/Os to operate more smoothly and substantially reduce large fluctuations in efficiency during data transfer.

  • Page 38: Misc

    5. RAID Caution Data in cache may be erased if power down unexpected. Suggest using a UPS (uninterruptible power supply) to prevent this scenario. Synchronize Cache – Check this box to enable cache synchronization with drives, to ensure all write data is correct, there is a frequently latency time within. For video capture, disable synchronization, because the video capture needs to be able to constantly write data to the RAID storage without long latency.
  • Page 39 5. RAID Password – Enter the new controller password. The default password is 00000000 (8 zeros). Type another 8 characters. Password Confirmation – Confirm the new controller password. Note: If you forget your password, you will have to contact your agent or the Accusys Support Team.

  • Page 40: Slicing

    5. RAID 4.6 Option 4.6.1 Slicing RAID slicing overcomes the inherent design of how data is stored on an drive or RAID system by subdividing a RAID array into segments, or slices. These slices are effective hardware partitions of all drives in the array. Each slice is a separate LUN and appears as a separate volume on the host computer.

  • Page 41: Lun Map

    5. RAID 1. Select the array by clicking on a drive with an array number. The capacity is displayed. By default, Slice 0 contains the entire capacity of the disk array. 2. Click on Slice 0, use the slide bar or button of percentage to slice space and click OK to confirm.

  • Page 42: Expansion

    5. RAID 1. Select the array to map by clicking on a drive with an array number. 2. Choose a LUN and from the drop down list select a slice to map to, check the Confirm box and click OK. 3.

  • Page 43: Migrations

    5. RAID Follow the steps below to select an array to expand. 1. Select the array to add additional drives, and select the number of drives to be added. A “+” sign appears above the drives to be added. 2. Check the Confirm box and click Expand Array. 4.6.4 Migrations Different from Expansion, which enlarges an array by adding hard drives to a fixed RAID level, Migration changes the RAID level of an array.
  • Page 44 5. RAID Example 3: Note The new hard drive must larger than the existing drives of array. Follow the steps below to select an array to migrate. This changes the RAID level, such as from RAID 1 to RAID 5. 1.
  • Page 45 5. RAID 3. The main array information screen will indicate that the array is currently migrating. User Guide...

  • Page 46: Snapshot

    5. RAID 4.6.5 Snapshot A snapshot is initialized with a data duplicate from a source to a target. The mirror snapshot is offered by the ExaSAN RAID controller. Note The source and target volume of the snapshot must be identical.
  • Page 47 5. RAID Delete Shot Delete the selected shot. 1. Select the Delete Shot function from the drop down menu. 2. Select the required shot by clicking on the Shot No. radio button. From the respective drop down menus, select the source volume and destination volume. Unavailable shots are grayed out.
  • Page 48 5. RAID Cancel Scheduling – Cancel the split shot scheduling. 1. Select the Split Shot function from the drop down menu. 2. Select the Cancel Scheduling radio button. 3. Select the required shot by clicking on the Shot No. radio button. From the respective drop down menus, select the source volume and destination volume.

  • Page 49: Health Center

    5. RAID 4.6.6 Health Center To ensure the accuracy of the RAID parity data, RAID controller offers Background checking and “Rebuild parity data”. During checking or rebuilding parity, the performance of the array will be affected. You may check the progress in the Main view or in the Health Center. Follow the steps below to select an array to verify, rebuild, or condition.

  • Page 50: Unlock Drives

    5. RAID 4.6.7 Unlock Drives The RAID controller may lock abnormal drives in an array. You may unlock these drives and rejoin them in an array. Drives may be locked with one of two conditions: 1. If a drive returns data too slowly, the controller determines the drive is experiencing a failure and executes Drive Drop.

  • Page 51: Updating The Exasan Raid System Firmware

    5. RAID 4.7 Updating the ExaSAN RAID system Firmware Follow the steps in this section to update the firmware of your RAID system. Note the current firmware version (System Code, Boot Code, Expander Code, etc) from RAIDGuardX. Download the latest firmware from website www.accusys.com.tw/support/download.htm.

  • Page 52: Download Controller Log

    5. RAID 4.8 Download controller log Download the event log for troubleshooting by pressing Dump Controller Log, log file (zip) will be saved at RAIDGuardX installed folder, Default folder to save log file: MAC: /Application/RAIDGuardX/Log Windows: /Program Files/Accusys/RAIDGuardX/Log Linux: /{GC folder}/log 4.9 Disk RW Test Read/Write throughput is highly depending on the condition of disk inserted in RAID system.
  • Page 53 5. RAID 3. Display test result on Event page Spare disks Array Member disks User Guide...

  • Page 54: Raid Overview

    5. RAID RAID Overview User Guide...

  • Page 55: How Raid Works

    RAID RAID Overview 5.1 How RAID Works RAID, or Redundant Array of Independent Disks, is a data-storage technology that spreads data across multiple drives. This technology provides several benefits  Data redundancy for protection and availability  Higher performance as a result of reading or writing on several drives simultaneously ...

  • Page 56: Raid 1: Mirroring

    RAID 5.2.2 RAID 1: Mirroring RAID level 1, mirroring, each drive stores identical data. RAID 1 provides very high data reliability and improved performance for read-intensive applications, but this level has a high capacity cost because it retains a full copy of your data on each drive in mirror set. 5.2.3 RAID 5: Striping disks with distributed parity By distributing the parity information across all drives in a set, RAID level 5 achieves high reliability and data availability, which allows one of array member disk get failure and keeps...

  • Page 57: Raid 0+1: Striped Set With Mirroring

    RAID 5.2.5 RAID 0+1: Striped set with Mirroring RAID 0+1 combines the advantages of RAID 0 and RAID 1 with none of the disadvantages. RAID 0+1 creates a mirror of the primary striped set. RAID 0+1 provides optimal speed and reliability.

  • Page 58: Appendices

    Appendices Appendices User Guide Page 6-1...

  • Page 59: Appendix A: Faqs

    III. Ensure the QSFP cable is connected securely. You would hear a "click" sound when connected cable to connector of host and storage. IV. Ensure cable connected to correct port of Z2M; DAS port is for connecting storage directly, SAN port is for connecting to ExaSAN switch. User Guide Page 6-2...
  • Page 60 Ensure cable connected to correct port of Z2M; DAS port is for connecting storage directly, SAN port is for connecting to ExaSAN switch. VI. Make sure the driver is running well;...
  • Page 61 VI. Ensure cable connected to correct port of Z2M; DAS port is for connecting storage directly, SAN port is for connecting to ExaSAN switch. VII. Make sure the driver is running well;...

  • Page 62: Appendix B: Customer Service And Support

    Appendices Appendix B: Customer Service and Support System Log When you contact us for technical support, our support staff might ask for your system log file for troubleshooting purpose. 1) RAID controller log by Dump controller log of RAIDGuard X 2) Client operation system log.
