SmarHUD EL-311 User Manual

Head up display
Hide thumbs

Advertisement

Quick Links

Download this manual

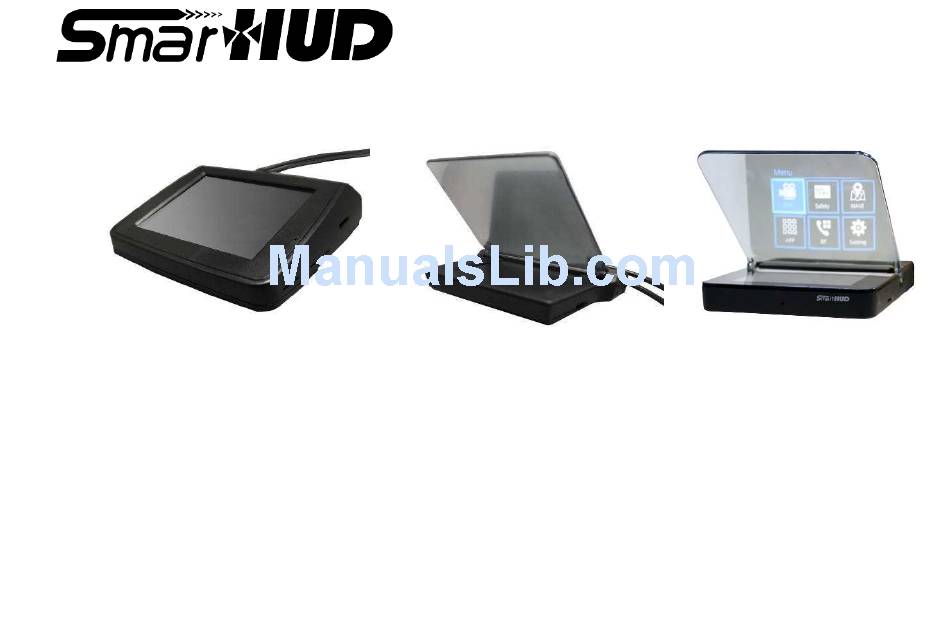

Head up Display

User Manual

EL-311
EL-311R
EL-101
Thank you for purchasing the Head Up Display! The User Manual will teach you how to
operate the product. Please read the User Manual before starting using the product to make
sure you operate the HUD correctly. After reading the User Manual, please save it in case if
you need any information later.

Advertisement

loading
Need help?

Need help?

Do you have a question about the EL-311 and is the answer not in the manual?

Questions and answers

Summary of Contents for SmarHUD EL-311

  • Page 1: User Manual

    Head up Display User Manual EL-311 EL-311R EL-101 Thank you for purchasing the Head Up Display! The User Manual will teach you how to operate the product. Please read the User Manual before starting using the product to make sure you operate the HUD correctly. After reading the User Manual, please save it in case if...

  • Page 2: Safety Warning

    Safety Warning The product operates safely as a design and manufacture were given priority in development. To avoid any potential risks, please follow the instructions when you are going to install, operating and cleaning the product. ● Before using the product, please read and understand all instructions, and save all instructions as they may be useful in the future.

  • Page 3: Federal Communication Commission Interference Statement

    Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

  • Page 4: Fcc Rf Radiation Exposure Statement

    This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC RF Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment.

  • Page 5: Product Appearance

    Product appearance EL-311 Brightness sensor Full-color and high brightness screen Micro SD card port Microphone Reset button DVR connector (Option) 12V Power input - 5 -...
  • Page 6 EL-311R DVR connector (Option) 12V Power input Reflective cover Screen on/off Brightness sensor Reset button - 6 -...
  • Page 7 EL-101 Reflective cover Screen on/off & brightness sensor Full-color and high brightness Micro SD card port Microphon Note： ： ： ： Long press the power button with 5 seconds for RESET device 5V Power input (USB Knob) DVR Video input Rear camera video - 7 -...

  • Page 8: Product Features

    II. Product features ● 4” TFT high-resolution image with full-color display layouts indicate rich information. ● Bright screen does not hurt the eyes. ● Brightness sensor: automatic detection when light reaches the sensor. ● Built-in navigation ● Speeding alert ● Blue tooth message and indications - 8 -...

  • Page 9: Specification

    III. Specification EL-311 Voltage DC 12V Storage Temperature -40℃ ~ +85℃ Working temperature -30℃ ~ +80℃ Current consume After turning off car engine, the products current consume ≦0.13mA 311 Overall size(L*W*H) 122.2mm*111.4mm* 29.7mm - 9 -...
  • Page 10 EL-311R Voltage DC 12V Storage Temperature -40℃ ~ +85℃ Working temperature -30℃ ~ +80℃ Current consume After turning off car engine, the products current consume ≦0.13mA 311R Overall size(L*W*H) Length146.3mm*Width116mm*Height17.2mm - 10 -...
  • Page 11 EL-101 Voltage Storage Temperature -40℃ ~ +75℃ Working temperature -30℃ ~ +75℃ Current consume 101 Overall size(L*W*H) Length122mm*Width187mm*Height22mm - 11 -...
  • Page 12 IV. Instructions for starting the product [Preface] Before using the product, please follow below steps in order to sure the regular connections. View for first power on View of normal power on - 12 -...
  • Page 13 Bluetooth Connect Setting (Android System) Step 1 Install E-Where on your phone and HUD Remote APP. When you are doing route planning, you can share all hot spot (scenery) to SmartHUD via E-Where. HUD Remote is like a controller to remote HUD. Step 2 Turn on the blue tooth function：Setting>Bluetooth>Open, choose device named “SmartHUD”, and entering password 0000 for pairing.
  • Page 14 Step 3 Enable the blue tooth function：Setting>Bluetooth>Open，Choose console equipped 「Smart HUD」，Enter password 「0000」。...
  • Page 15 When building a connection, SmartHUD will ask for confirmation to make sure you want to give the telephone saving authorization. Please choose “yes” Bluetooth connect successful screenshot on mobile Tethering or hotspot active BT connected successfully...
  • Page 16 Bluetooth Connect Setting (iOS System) Step 1 Install E-Where on your phone and HUD Remote APP. When you are doing route planning, you can share all hot spot (scenery) to SmartHUD via E-Where. HUD Remote is like a controller to remote HUD. Step 2 Turn on the blue tooth function：Setting>Bluetooth>Open, choose device named “SmartHUD”, and entering password 0000 for pairing.
  • Page 17 Step 3 Turn on Cellular：Settings＞Cellular >Cellular Data Step 4 Select Bluetooth and USB only...
  • Page 18 Step 5 Turn on personal Hotspot：Settings＞Personal Hotspot＞Personal Hotspot Bluetooth connect successful screenshot on mobile Color change from gray to white...
  • Page 19 Bluetooth connect successful on SmartHUD You can check connecting status at down-left side in safety mode. The icon will indicate status from (no connected)→ (Bluetooth connected)→ (PAN connected).
  • Page 20 Product Operation─ ─ ─ ─ HUD Remote APP After establishing PAN, you can enable HUD Remote operation. The gesture operation is the same as using a mouse mode. HUD Remote will indicate functional teaching window at first operation. Click on the HUD Remote right side can review the functional teaching again after completing installation.
  • Page 21 Note: When HUD Remote is in digital video record mode or safe mode, use long press follow by a down gesture to go back the Main Menu, do not support go back gesture to go back to Main Menu.
  • Page 22 Product Operation─ ─ ─ ─ Knob Choose up-right corner at Main Menu for checking the operation gesture. Note: Long press 3 seconds can start up voice recognition function on mobile (iOS system will start up Siri). If Siri is started up from mobile under connecting with HUD condition, HUD screen will pop up incoming call page.
  • Page 23 Music 1. SD Music Playing page shows as below pictures. This icon go back to folder， refresh folder’s list. Support external capacity up to 32GB maximum and available to read MP3 and WAV music files. Order / All repeat / Single repeat / Random...
  • Page 24 2. BT Music Support to read the music list from mobile and work function as below indicated. last song / play/pause / next song...
  • Page 25 3. Internet Radio Data source is MUZEE. Channel list is synchronize Last channel / Next channel / Play / Stop Add to my favorite / Remove from my favorite...
  • Page 26 Safety Free run / No route planning Road name of two blocks ahead Road name of one block ahead Current speed limit (Red circle will flash while speeding) Current Temperature Driving directions Next hour’s temp. Current driving speed Next 2 hours’ temp. Current time(show after GPS positioned) PAN connected Current road name...
  • Page 27 With route planning Name of road one block ahead The distance of one block ahead Driving Directions Current speed limit (Red circle will flash while speeding) Current time(show after GPS positioned) PAN connected Current speed limit Distance to Current road name destination ...
  • Page 28 V. Navigation For more details info please refer to navigation user manual. You can share POI(Point Of Interest) on your mobile via E-Where as destination to SmartHUD.
  • Page 29 Android System (Share scenic from Google Maps) Step 1: Download E-Where APP Step 3: Look for scenic area (enter address or location into the search bar or pick a specific scenic area with address) E-Where Step 2: Enter Google Map on your mobile...
  • Page 30 Step 4: Sharing the Scenic Area Step 5: Sharing to SmartHUD...
  • Page 31 Step 6: Set as destination Step 7: Sent successfully System will indicate text as “Sent successfully” if your mobile is connected with HUD. System will indicate text as “No connected car device. E-Where will send to device by server.” If your mobile is not connected with HUD.
  • Page 32 iOS System (Share scenic from Apple Maps) Step 1: Download E-Where APP Step 3: Enter keyword in search bar using an address, select one place you want to E-Where Step 2: Allow E-Where to use your current location, so you are able to continue.
  • Page 33 Step 4: Available for previewing the Step 5: Click the scenic information on the selected POI in map. You can also use pin to enter edit page, then set it as your finger to move the map to select POI. destination.
  • Page 34 Step 6: Sent successfully System will indicate text as “Sent successfully” if your mobile is connected with HUD. System will indicate text as “No connected car device. E-Where will send to device by server.” If your mobile is not connected with HUD.
  • Page 35 VI. Applications Content: News: Support to read news with Text to speech technique. Weather: Indicate current temperature and next three hours’ temperature. E-Where: Available to edit scenic to prefer group, pre-saving POI and share POI…etc. EZ-Talk: In-time communication software, need to work with installed APP on mobile. Available to send text, voice message, current location, and pictures…etc.
  • Page 36 The active traffic report enables the user to pass along Traffic Report: information to those upcoming drivers about issues or incidents on the road ahead. - 36 -...
  • Page 37 News Default setting is real-time news. Click to switch to different kind of news. Pause / Play / Stop / Repeat - 37 -...
  • Page 38 Weather Indicate the weather information of your current located GPS position. The area description is written with local default language. Besides local language and English, system will directly indicate as English once the setting is changed to others. Indicate the weather information of current position, data will be updating automatically per 5 minutes under stable internet connecting environment.
  • Page 39 E-Where To use this function, please download eLeadrive and E-Where APPs on your mobile in advance. eLeadrive: The main entrance of E-LEAD cloud service, you can access the related information more easily by this application. Features: - Bridge between your mobile and E-LEAD products - Profile picture settings - Supports E-Where&...
  • Page 40 Connect with SmartHUD: 1. Click eLeadrive on your mobile to enter logging screen. Enter your account and password. (For initial operation, please select sign up and follow the indicated steps to finish signing process) 2. Please enter your phone number or e-mail address and password to log in. (Refer to the left picture as below) 3.
  • Page 41 E-Where: By E-Where, you can search/collect POIs and share it with friends. It provides a more effective way to locate and navigate on SmartHUD. Feature: - Search POI: Integrate with Google maps / iOS built-in map, and locate where you are immediately - Favorites: collect the locations you like and save them by category - Share Records: record the locations you sent or received from your friends...
  • Page 42 EZ-Talk To use this function, please download eLeadrive and EZ-Talk APPs on your mobile in advance. eLeadrive: The main entrance of E-LEAD cloud service, you can access the related information more easily by this application. Features: - Bridge between your mobile and E-LEAD products - Profile picture settings - Supports E-Where&...
  • Page 43 2. Enter your account and password. (For initial operation, please select sign up and follow the indicated steps to finish signing process) 3. Please enter your phone number or e-mail address and password to log in. (Refer to the left picture as below) 4.
  • Page 44 EZ-Talk Messenger: EZ-Talk Messenger is a FREE intstant messaging app make you be able to chat with your friends anywhere, anytime. This app not only supports mobile phones but also specific E-LEAD head units. You can send voice messages and location in car, and receive overall messages on phone.
  • Page 45 Support function at SmartHUD device: - Sync chats from mobile : create new chat : Account information : Scenic transmits record, select one scenic and set it as destination to navigation : Picture transmits record : Add new member at this chatting room/Check members/Share current position(linked with Google Maps for preview)/Leave chat : Set as Auto talk, turn on Auto play and Auto send function at same time.
  • Page 46 a hold at any page. Calendar Click EZ-Account APP on your mobile, and set your Google account to connect with SmartHUD. After setting, you would be able to see the edited schedule. - 46 -...
  • Page 47 Traffic Report The active traffic report enables the user to pass along information to those upcoming drivers about issues or incidents on the road ahead. It also enables the user to report problems or issues with your current position. You can choose to report situation directly or report vocally by uploading additional voice message to our server.
  • Page 48 - 48 -...
  • Page 49 VII. Mobile Support to loading dial pad, phoneBook, call history and messages from mobile. Note: iOS system is not supported for blue tooth message function. Dial pad / Call history / Message / : Update contact list to phone book. ※...
  • Page 50 function. If the incoming phone number is not within contact list, it will be presented as unknown. Dial pad Click the number you want to call. After keying, click for calling. If there is any mistake during entering process, please use delete , clear for cancel.
  • Page 51 Call history Downloading from the calling history on mobile. Missed calls Outgoing calls Incoming calls Message : update new messages. - 51 -...
  • Page 52 VIII. Setting Provide personal favorite setting for Speeding Alert / Car Speed / Brightness / FM Transmitter / Volume / Language / Bluetooth / Car speed unit. - 52 -...
  • Page 53 Car speed Set the number to adjust the indicated value from 0. The setting range is -50~50. - 53 -...
  • Page 54 Speeding Alert The speeding indicator will remind you by color change when you are driving above the speed. You can set the value from 0. The setting range is -50~50. Brightness The device is able to detect outside light to switch screen presentation automatically. As personal preference you can switch by yourself, switch range is -5 to 5.
  • Page 55 FM Transmitter The ability to use FM Transmitter to listen to FM channels, using the car stereo channels and switches to listen to HUD music signal. (FM range: 88.1-107.9 MHZ) Volume Change to your personal preference. - 55 -...
  • Page 56 Language According your personal preference you can set the language. The console support English, Traditional Chinese and Simplified Chinese. Bluetooth Auto-answer: Default is on. HUD will directly answer the incoming call after it keeps ringing till 10 seconds. For turning off this function, please cancel the block.
  • Page 57 Car Speed Unit Change the unit to your personal preference. Troubleshooting - 57 -...
  • Page 58 Version checking Step 1：Please enter to primary links/setting /language's screen Step2：Please practice how to use actuated button turn left move, and select a target toward to up one space gesture. Step 3：Please practice using rotated button turn right move, then select a target to move down once space gesture.
  • Page 59 unsuccessful when updating. Step2：Put Micro SD card inside the console's SD card slot, And at the same time turn off your car.。 Step3：Turn on car engine and the automatic system will begin to update, please be patient and wait for the update. The program will alert you when you are able to remove the SD card. The console will also automatically restart after the update is complete.
