Summary of Contents for YSX GD100L

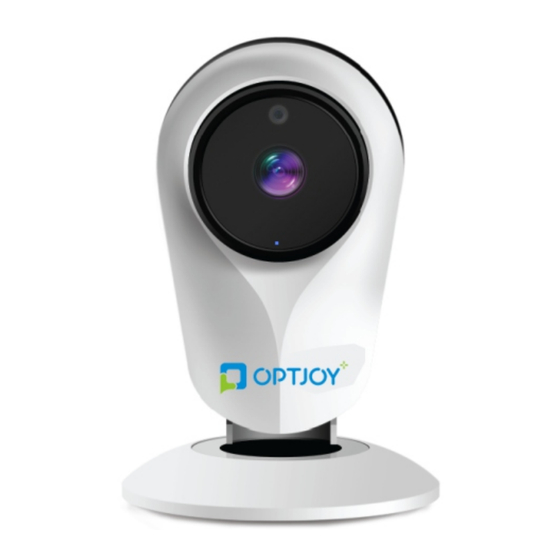

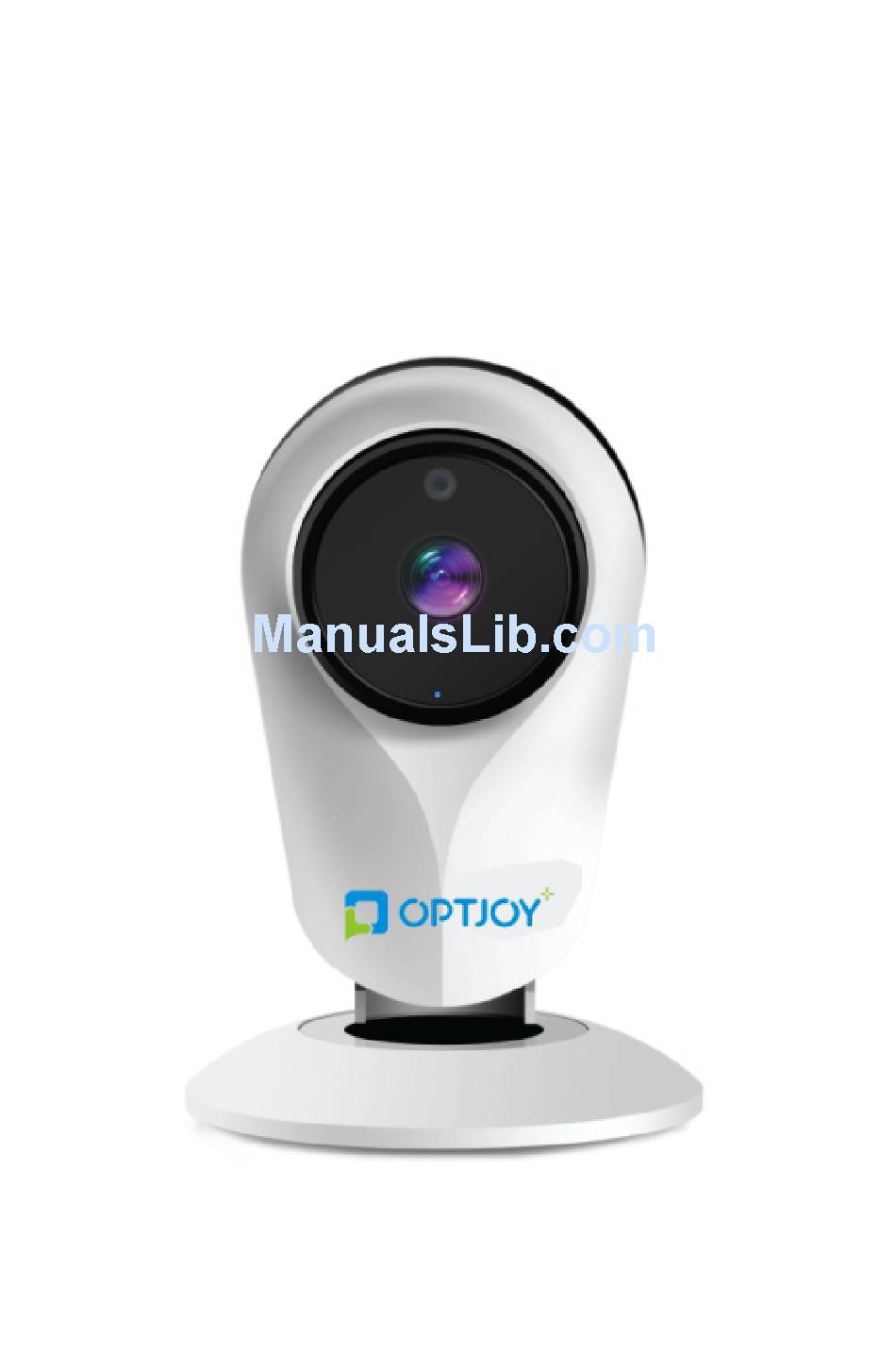

- Page 1 Cloud2Me to Smart HD Camera GD100L(YSX001-B 720P Night Edition） Quick Installation Guide and Ser vice Guide...
- Page 2 C o n g r a t u l a t i o n s , y o u h a v e Y S X h i g h q u a l i t y w e b c a m , b e a u t i f u l a n d e l e g a n t s t r u c t u r e , t h e p i x e l c l a r i t y , a s e n s e o f i m m e r s i v e .
-
Page 3: Product Manual
Product manual Cloud2Me to be a through WIFI wireless network , with a smart HD camera phone app use. You can use the cloud- 2Me to remote live (Live View), taped / playback (CVR), voice intercom, you can also invite friends to watch together and share life with joy. -
Page 4: Packing List
Packing List After unpacking, please check the host is intact, accessories are complete. IPC X 1 Mini USB Cable X 1 ５Ｖ ／ １．５Ａ power adapter X 1 (support 10000mAh charge treasure can hold about 12 hours continuous power supply, equipment consumption per hour 300mAh) Reset pin X 1 Quick Installation Guide and Ser vice Guide Hardware Description... -
Page 5: Installation Method
Installation Method Specifications Sensor…… Image Device: CMOS image sensor chip (CS1211K) Brand: PIXELPLUS Photosensitive Size: Photoreceptor 1 / 2.9 " Image resolution: 1280 * 720P (100W pixels) Lens……… Lens Size:Sensing Area 1/2.7” M12 Lens Type: Full glass (4G) Angle: H-FOC 94 ° Focus: 3.6mm fixed focal length Aperture: F / No 2.1 Video……... - Page 6 Audio frequency…… Voice: Support half-duplex voice intercom (which can be upgraded to full duplex) Equipment: Built-in microphone, speaker Audio Input and Output: 1 channel Compression: Audio32 Network…… Network Interface: WIFI access 802.11 / b / g / n Network Protocols：HTTP，TCP/IP，UDP，SMTP，DHCP， P2P，Relay，Rtsp Software Integration……...
-
Page 7: Assembly And Use
Assembly and Use First:Assembly Products 1.Insert the SD card into the camera card slot. 2.Headgear in the network camera holder. 3.Power Connection: Plug the power cord is connected to 120V AC the 220V AC power, the other end of the power cord into the camera interface. - Page 8 Assembly and Use .Register Account )Wechet Registration ① Start App and select the login mode. ② Enter your account information of wechet ③ Click OK E-mail Registration ① Click E-mail ② Click the "Register" ③ Enter the registered email password and click Register, and into the mailbox activated (3)Mobile Register ①...
- Page 9 Assembly and Use ③ Click the drop-down button, additional settings ④ Select the item you want to set ⑤ Click Share to share any micro-letter friends ⑥ Click the alarm notification can view historical alarm log ⑦ Click settings you can set alarm notifications, adjust the sound, unbundling cameras operating ⑧...
-
Page 10: Frequently Asked Questions
Frequently Asked Questions 1. Q:Two-dimensional code, a long acoustic formulated not on how to do? A: Place the unit off and re-configuration (from the ca- mera when the two-dimens ional code formulated about 10-15cm). 2.Q: Rom network camera for a long time, and WIFI name and password correct? A: Check the signal strength WIFI environment, or replace the signal strength of the WIFI environment and reset... -
Page 11: Security Statement
Disclaimer ① This product must play its normal function in the network to ensure smooth conditions. Any loss due to network qua- lity of ser vice, network failures and other ser vice interrupt- ions caused by force majeure arising from the company and the manufacturer does not assume any responsibility. -
Page 12: Warranty Regulations
Warranty Regulations ① Three Guarantees principles: 7 days return, 15 days re- placement, host 1 year warranty. ② From the date of purchase within seven days, if the pro- duct host non-human damage performance failure (see "Product Performance Fault Table"), interactive video de- tection determination by the sale, consumers can choose according to hair ticket price refund or free replacement once the same model specifications product. - Page 13 Product Performance Fault Table Name Failure of Performance Host Unreachable electric light does not shine Can not boot Camera You can not call or video Host Because the product structure or material caused by cracking the shell Instructions listed other function failure Fitting Unable to properly energized...
- Page 14 Non-Warranty The following does not belong to free warranty, YSX provide frequency reasonable fees repair: ① Fails Instructions require the installation, use, mainten- ance, insurance pipe product failure or damage caused; ② Beyond the limited warranty, the warranty period; ③ Unauthorized alteration, tore product barcode;product barcode or type of product according to ④...
- Page 15 Content of Harmful Substances Status Description Toxic and hazardous substances or elements Cd Cr6+ PBB PBDE Shell Circuit board Power Adapter Annex ○ Indicates that this hazardous substance in all homogeneous materials that are in the limit requirement in SJ / T11363-2006 standards below.
-
Page 16: Technical Support And Service
Technical Support and Ser vice Official Website: Official Weibo: Official Micro Letter: Customer Ser vice Email: Consumer Hotline:... - Page 17 Cloud2Me to smart cameras Warranty certificate Dealer retained Customer Name:..........(Mr / Ms) Phone：................. Customer Address:：............................Host Mode：..............Serial Number：............Purchase Store:：............Store Address：........Purchase Purchase Date：........Seal Shop Tel：........... Invoice Number：............
- Page 18 Cloud2Me to smart cameras Warranty certificate Customer retention Customer Name:..........(Mr / Ms) Phone：................. Customer Address:：............................Host Mode：..............Serial Number：............Purchase Store:：............Store Address：........Purchase Purchase Date：........Seal Shop Tel：........... Invoice Number：............
- Page 19 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.
