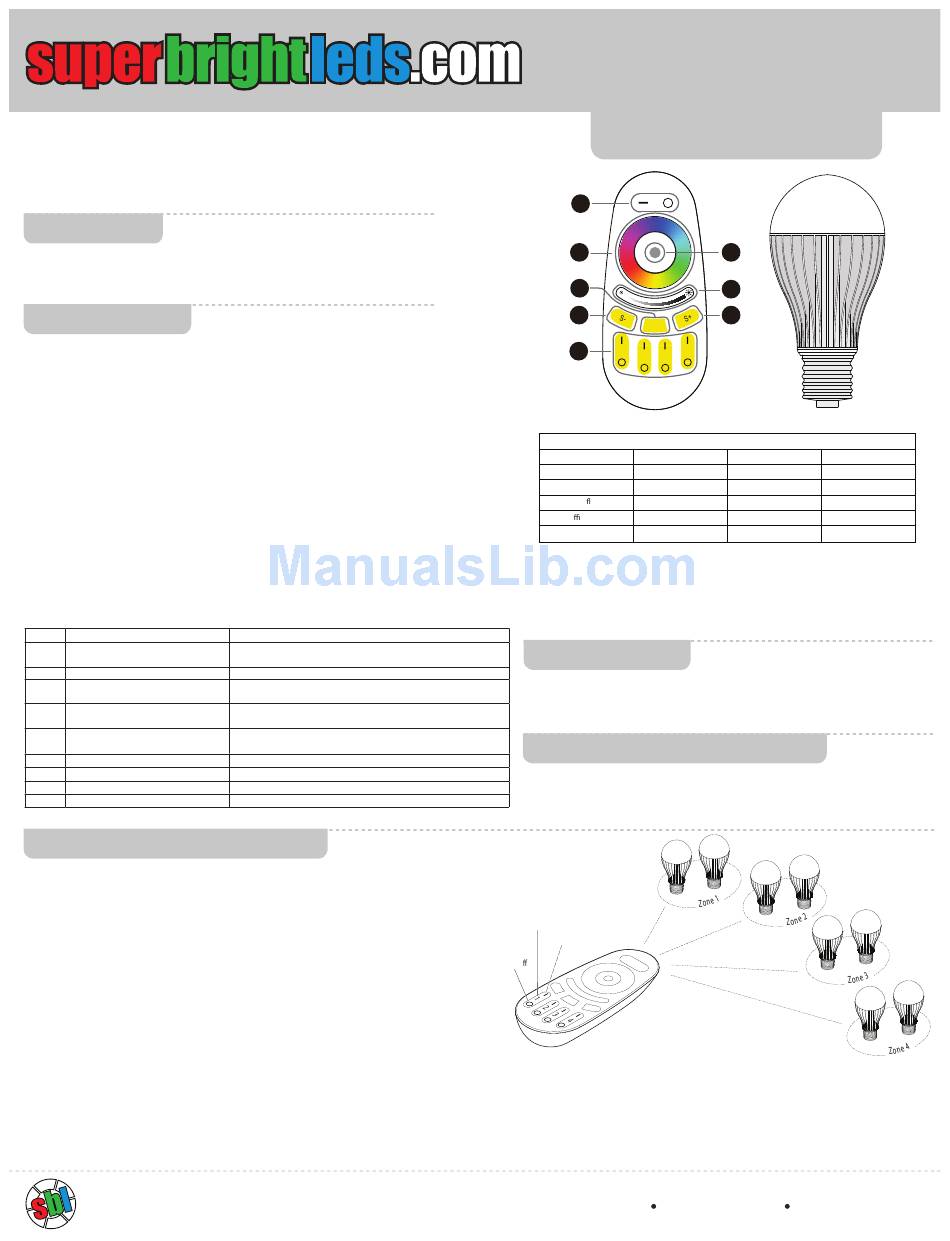

superbrightleds E27RF-RGBW9-MZ User Manual

Important: Read all instructions prior to installation.
Wi-Fi Compatible RGBW LED Bulb with
Touch Color/Multi- Zone RF Re mote

Parts Included

1 - 2.4Ghz Wi-Fi Compatable RGBW LED E27 Bulb
1 - 2.4Ghz Sync-able RF Touch Color/ Multi-Zone Remote

Wireless Remote

1. Master On(–)/Off(O)
Acts as a master On(-)/Off(O) control for all zone-linked RGB(W) lights. Also activates the
"Master" function, which allows the remote to control the RGB(W) lights of all zones. If a zone is
currently active, pressing the master On(-) button restores the "Master" function to the remote.
2. Color Selection Ring
Directly selects color along a circular spectrum. To obtain white light only, keep the "Zone On" (-)
button depressed until the light changes to a steady bright white.
3. Selection LED Indicator
Flashes once to indicate when a command has been selected.
4. Brightness Touch Slider - Increase(Right Side)/Decrease(Left Side)
Increases(right side) or decreases(left side) the brightness level. Changing the active mode
resets the brightness level to full.
5. Mode Start/Scroll(M)
Modes feature different color combinations, light transitions, and patterns, with 9 distinct modes.
This button initiates the Mode function and scrolls through the modes in ascending order.
6. Mode Speed - Increase(S+)/Decrease(S-)
Increases (S+)/decreases(S-) the tempo of the mode pattern currently active.
Mode Function
1 Six Color Fade In/Out
2 White Fade In/Out
3 RGBW Fade In/Out
4 Seven Color Flash
5 Disco Random Pattern
6 Red Fade In/Out with 3 Flashes
7 Green Fade In/Out with 3 Flashes
8 Blue Fade In/Out with 3 Flashes
9 All Pattern Mode

Linking Lights to Remote Zones

RGB(W) lights are controlled exclusively by the multi-zone RF remote via the controller.
Linking a Light to the Remote
1. Switch off the main power supply to the light.
2. Restore power and within 3 seconds, choosing one of the "Zone On" (-) buttons,
depress the button until the light begins flashing. It will flash white 2 times, indicating
that the light is now linked to that numbered zone and can be controlled via the remote.
Activating a Zone
To activate a specific zone, depress the "Zone On" (-) button. The zone is now active and
remote commands will only affect lights linked to that zone.
Unlinking a Light to the Remote
1. Determine which zone the light is linked to. This can be done by testing the Zone On/Off
controls for each zone on the remote.
2. Switch off the main power supply to the light.
3. Restore power and within 3 seconds, depress one of the "Zone On" (-) buttons until the light flashes 10 times, indicating that the light has been unlinked.
An unlimited number of RGB(W) lights can be linked to a zone, and all lights linked to that zone will respond to the commands entered on the wireless remote. Conversely, a single
RGB(W) light can be linked to multiple remotes. When the light is unlinked, it will be unlinked to all remotes.
Note: The wireless remote operates using radio frequency. The remote controller's use is not restricted by normal obstructions such as walls, doors, etc. Once programmed they can
be installed anywhere in range of the remote (up to 65 ft. or 20m).
Description
Red, Yellow,Green, Cyan, Blue and Purple fade in and out in a
continuous repeating cycle.
White fades in and out continously
Red, Green, Blue and White fade in and out in a continuous
repeating cycle.
Red, Green, Blue, Yellow, Purple, Cyan and White cycle in set
pattern with flashing transitions.
Red, Green, Blue, Yellow, Purple, Cyan and White cycle at
random with flashing transitions.
Red increases to full brightness then flashes 3 times.
Green increases to full brightness then flashes 3 times.
Blue increases to full brightness then flashes 3 times.
All 8 patterns above cycle through and repeat.
1
2
5
6
7
Voltage (V)
Frequency (Hz)
LED Power (W)
luminous ux (Lm
E cacy
Color temperature (K)
7. Zone On(-)/Off(O) - Zones 1-4
Allows up to four "zones" (i.e. channels) of RGB(W) lights to be separately linked
and controlled by the remote. Pressing one of the Zone On(-) buttons activates
that zone; commands will affect only lights in that zone. Once linked to a zone,
lights remain linked until they are unlinked. Steadily depressing the Zone On(-)
button restores the lights in that zone to white.

Safety

• DO NOT use with wall dimmers, relays or other control circuits.
• DO NOT install with power applied to socket.
• DO NOT uexpose the remote or bulb to direct or indirect moisture.

Set-Up Instructions

1. Install 2 AAA batteries (not included) in the wireless remote.
2. Screw the RGB(W) bulb into a socket and turn power on. If bulb does not
illuminate, check socket and power connections.
3. The RGB(W) bulb is ready for linking to the wireless remote.
Zone #
Zone On
Zone O
4400 Earth City Expy, St. Louis, MO 63045
User Manual
Part Number:
E27RF-RGBW9-MZ WIFI-CON
3
4
6
M
1 4
2 3
RGBW LED E27 Bulb
86-265V Lifespan (h)
50-60 PF (cosΦ)
RGB7.5W / White7.5W Current (mA)
800-850 Max diameter (mm)
85 Max length (mm)
2700-3200 / 6000-6500 Lamp base
866-590-3533
50000
0.65
35-65
60
120
E26/E27
