Summary of Contents for Schnick-Schnack-Systems DMX Pixel-Router

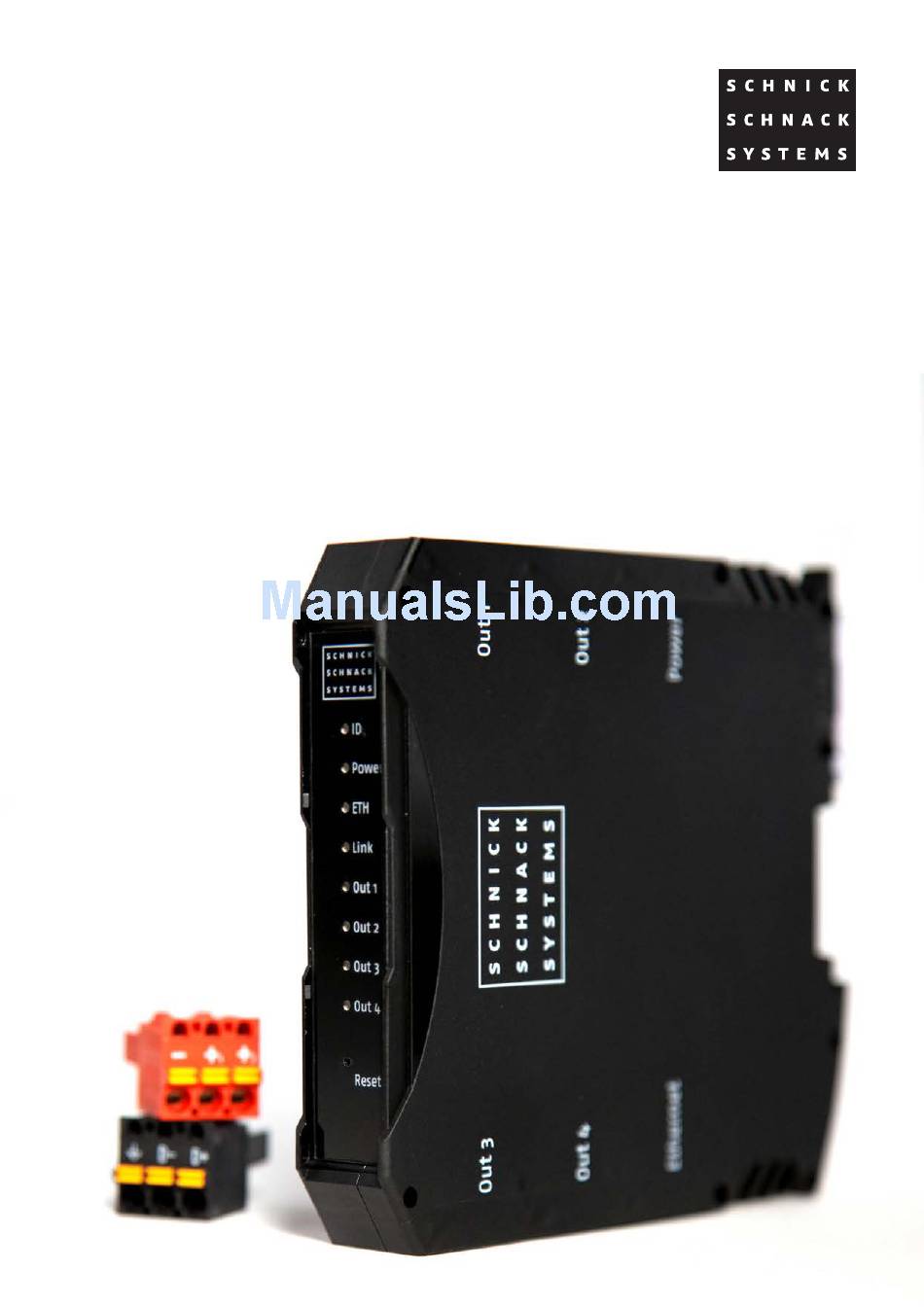

- Page 1 DMX Pixel- Router User Guide...
- Page 2 © 2015 Schnick-Schnack-Systems GmbH Version 2015: All technical data and the weight and dimension information were carefully created – errors reserved. Any colour deviations are printing-related. We reserve the right to make changes that serve further impro- vement.
-
Page 3: Table Of Contents
Table of Contents Overview Connectivity Menu Installation System Cabling To Access the Web Server Web Server Settings Homepage Operation Mode Short Name/Long Name Output Ports Log Files Network Overview Help/Contact Technical Data Pin Connection Table Art-Net™ Universes... -
Page 4: Overview
It has an optimized, multi-tasking, real-time operating system to process and transmit video data synchronously and with very low latency. The DMX Pixel-Router is compatible with the protocols sACN and Art-Net™ by using the Ethernet input. Schnicknet is of course also supported. The DMX Pixel-Router is one of the few devices on the market that can process Ethernet bursts with more than 250 universes. -
Page 5: Connectivity

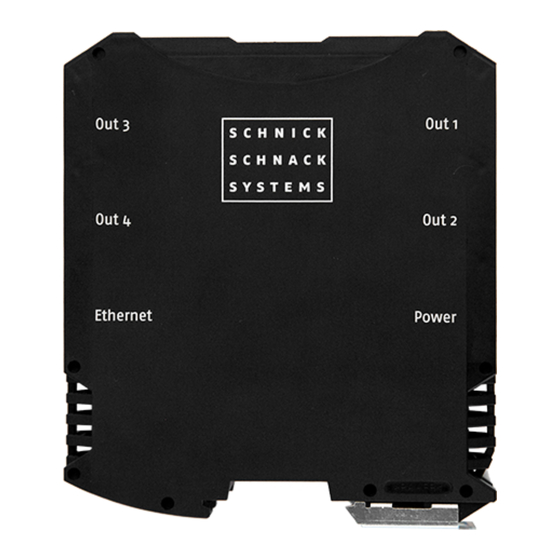

Connectivity The following connectors are located on the unit: pin assignment pin assignment DMX Out 1-4 Power Out 1-4 DMX output Ethernet Ethernet input *Redundant power supply is optional for increased operational reliability Power 24V connection... -
Page 6: Menu
Menu The following LEDs are located on the front of the unit: Lights up blue when the search/highlight function is Link Lights up yellow when data is being received activated in the web server Out 1-4 Lights up green when a DMX signal for the... -
Page 7: Installation
A damaged unit must not be put into operation. If the DMX Pixel-Router has been taken from a cold environment into a warm interior after transportation, allow at least one hour for it to warm up before it is put into operation. -
Page 8: To Access The Web Server
To Access the Web Server Ethernet Activity Link Activity SD / mmc Step 1 Fuse Fuse Fuse Fuse Connect the PC and the device with a network cable. Step 2 Configure the network card for Art-Net™. Caution: please note previous settings so they can be entered again later. - Page 9 Step 3 Find the Router’s IP address on the back of the unit. Ethernet Activity Link Activity Step 4 SD / mmc Enter IP address in the browser. Fuse Fuse Fuse Fuse...
-
Page 10: Web Server Settings
Web Server Settings Homepage This is where the basic data for the DMX Pixel-Router is display- Highlight off/on: when switching to Highlight on, the blue ID-LED lights up on the Router. With the help of the High- light-Button, especially for larger installations, the device that it’s being configured via the web server can be detect. -
Page 11: Operation Mode
Operation Mode Short Name/Long Name The following modes are available for your use: In this field, you can give the DMX Pixel-Router an individual name. QuickPatch Network The QuickPatch Network mode offers the possibility to handle... -
Page 12: Output Ports
Output Ports Under the menu item “Output Ports” you can see an overview of the outputs of the Router. Here you can set the Output Mode (optional) and the Colour Gain. Output Mode Refresh In this version of the Pixel-Router, only DMX512 is available. -
Page 13: Log Files
Log Files Service page for error analysis (internal). The processes in the Router are logged and if applicable make error analysis easier. If needed, the log files can be downloaded as a TXT File with “Download as”. Log files will be lost in the event of re-starting... -
Page 14: Network Overview
Network Overview This page clearly lists all DMX Pixel-Router found in the same network. Clicking on the IP address takes you to the website of the res- pective device. The list can be sorted according to for example IP address or... -
Page 15: Help/Contact
Help/Contact Press “Download Support” to download log files that help with error analysis. -
Page 16: Technical Data
DMX output Phoenix cable plug optically isolated Network input RJ45 socket with integrated transformer Network protocol Art-Net™, Schnicknet, sACN (ANSII) Weight 95 g Pin Connection DMX 5pin connector Case Data GND Data- Data+ Connectors Schnick-Schnack-Systems DMX - DMX + 24 V... -
Page 17: Table Art-Net™ Universes
Conversion Table Art-Net™ Universes Art-Net™ Standard Schnick-Schnack-Systems MA-Lighting Numbering (Hexadecimal Numbering) (Decimal Numbering) Subnet Universe... - Page 18 Art-Net™ Standard Schnick-Schnack-Systems MA-Lighting Numbering (Hexadecimal Numbering) (Decimal Numbering) Subnet Universe...
- Page 19 Art-Net™ Standard Schnick-Schnack-Systems MA-Lighting Numbering (Hexadecimal Numbering) (Decimal Numbering) Subnet Universe...
- Page 20 Art-Net™ Standard Schnick-Schnack-Systems MA-Lighting Numbering (Hexadecimal Numbering) (Decimal Numbering) Subnet Universe...
- Page 21 Art-Net™ Standard Schnick-Schnack-Systems MA-Lighting Numbering (Hexadecimal Numbering) (Decimal Numbering) Subnet Universe...
- Page 22 Art-Net™ Standard Schnick-Schnack-Systems MA-Lighting Numbering (Hexadecimal Numbering) (Decimal Numbering) Subnet Universe...
- Page 23 Art-Net™ Standard Schnick-Schnack-Systems MA-Lighting Numbering (Hexadecimal Numbering) (Decimal Numbering) Subnet Universe...
- Page 24 Why Schnick Schnack Systems? Schnick-Schnack-Systems GmbH As installation times become increasingly shorter the complexi- Mathias-Brüggen-Straße 79 ty of systems simultaneously increases as do the requirements 50829 Cologne (Germany) of customers. Phone +49 (0) 221/99 20 19-0 We are a supplier who delivers high-quality reliable systems +49 (0) 221/16 85 09-73 –...
