The keyboard requires calibration for proper operation. The calibration is done each time the Ter-
minal UltraLight is started. It is therefore absolutely necessary not to touch the keyboard during
terminal startup otherwise the keyboard may not work properly.

It may happen that the keyboard will become less or much more sensitive to touches after a long pe-
riod of operating time or when electrostatic or electromagnetic properties in the surrounding area
change. When this problem occurs it is necessary to reboot or power off/power on the terminal so it
would automatically calibrate the keyboard to new environment values.
2.3

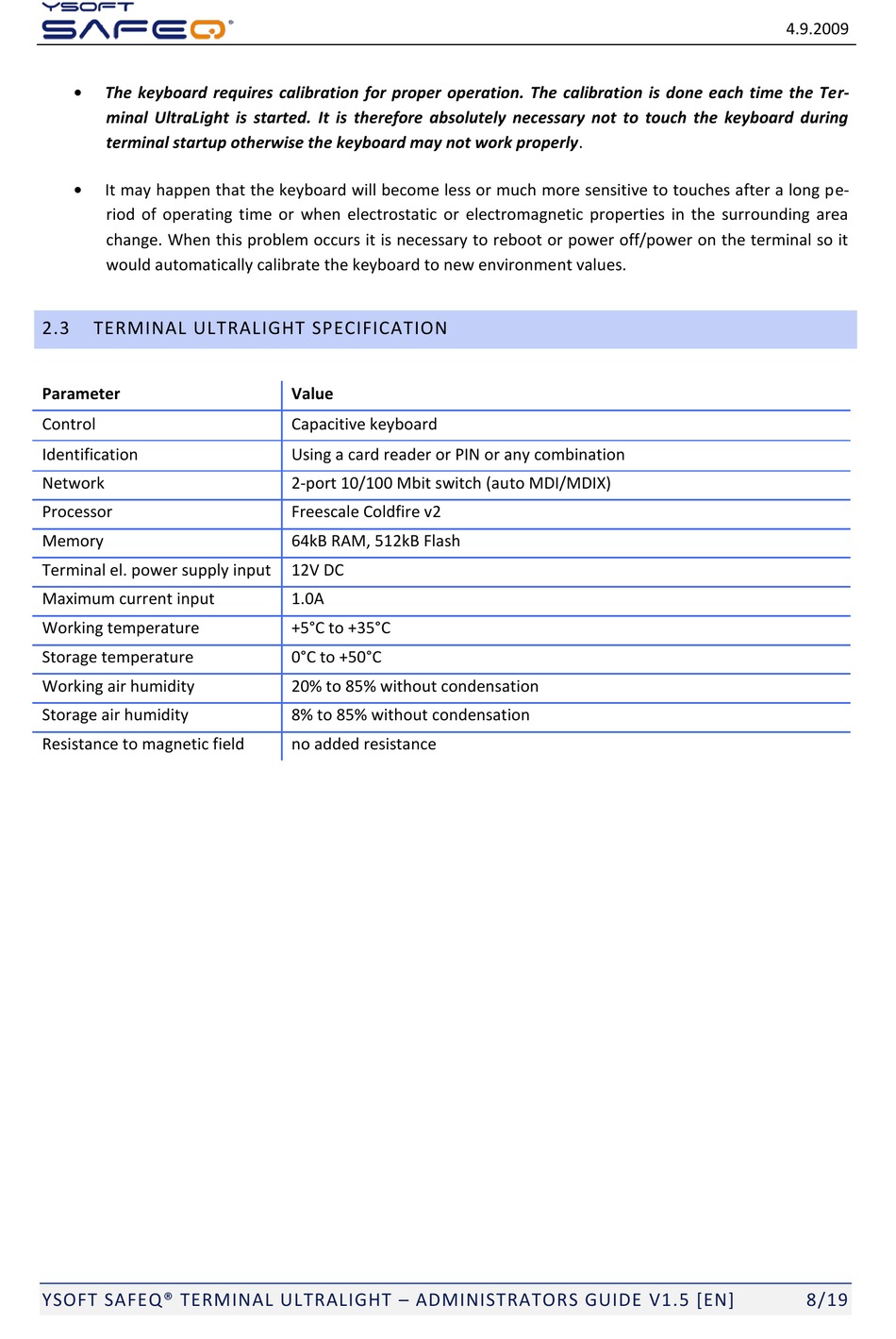

TERMINAL ULTRALIGHT SPECIFICATION

Parameter
Control
Identification
Network
Processor
Memory
Terminal el. power supply input
Maximum current input
Working temperature
Storage temperature
Working air humidity
Storage air humidity
Resistance to magnetic field
YSOFT SAFEQ® TERMINAL ULTRALIGHT – ADMINISTRATORS GUIDE V1.5 [EN]
Value
Capacitive keyboard
Using a card reader or PIN or any combination
2-port 10/100 Mbit switch (auto MDI/MDIX)
Freescale Coldfire v2
64kB RAM, 512kB Flash
12V DC
1.0A
+5°C to +35°C
0°C to +50°C
20% to 85% without condensation
8% to 85% without condensation
no added resistance
