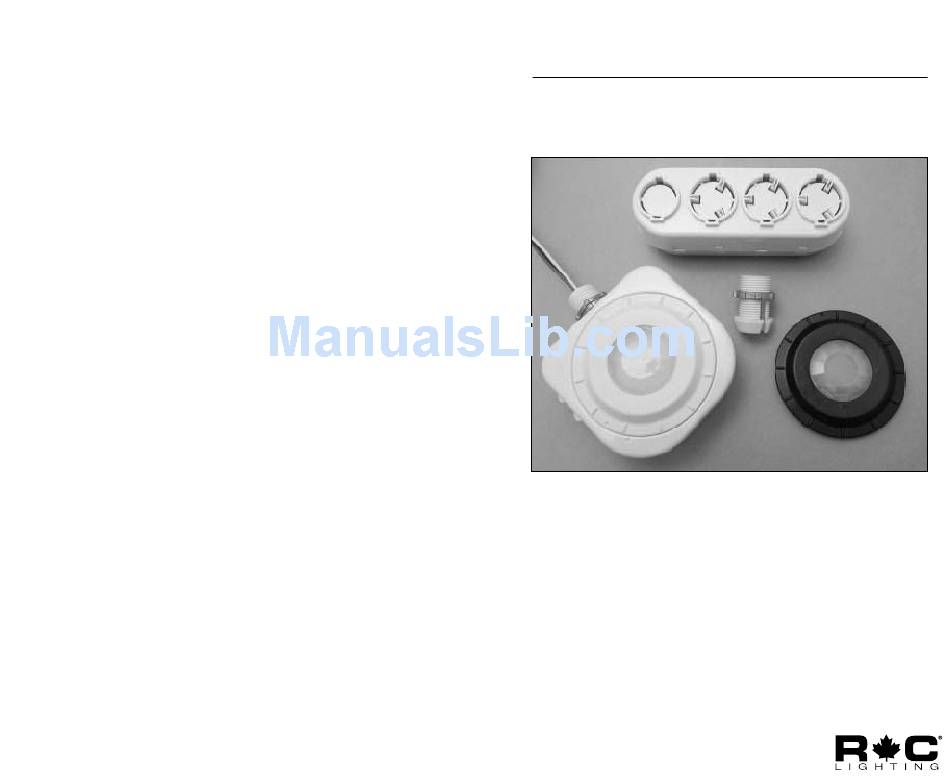

LOSBAY800
BAY SENSOR

Installation Manual

LOSBAY800 Specifications
Coverage Area:
Time Delay:
Photocell Adjustment:
Operating Temperature:
Relative Humidity:
Power Consumption:
Switching Capacity:
120VAC:
277VAC:
347VAC:
50'- 60' diameter @ 40' height
30 seconds to 30 minutes
3.7 fc to185 fc (40 - 2000 Lux)
-10°C to 70°C (14°F to 160°F)
20-85%
2W@120V, 1W@277V, 0.8W @347V
800VA - 6.67A, 50/60 Hz
1200VA - 4.33A, 50/60 Hz
1500VA - 4.32A, 50/60 Hz

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LOSBAY800 and is the answer not in the manual?

Questions and answers

Summary of Contents for RC Lighting LOSBAY800

  • Page 1: Installation Manual

    LOSBAY800 BAY SENSOR Installation Manual LOSBAY800 Specifications Coverage Area: 50’- 60’ diameter @ 40’ height Time Delay: 30 seconds to 30 minutes Photocell Adjustment: 3.7 fc to185 fc (40 - 2000 Lux) Operating Temperature: -10°C to 70°C (14°F to 160°F)
  • Page 2 How much motion is necessary to Be sure the total lighting load from 30 seconds to 30 minutes. keep lights on? connected to the LOSBAY800 does In order to activate the sensor, the not exceed the following ratings: 40’ Photocell: source of heat must move from one 120VAC: 800VA - 6.67A, 50/60 Hz...
  • Page 3: Selecting A Location

    Selecting A Location Lens Installation Locate the LOSBAY800 where it 1. The sensor is supplied with two has an unobstructed view of the lenses, a factory installed 360° Bay Dots area, particularly the areas normally Lens and an optional un-installed occupied by people.
  • Page 4: Troubleshooting

    Wiring Diagram R-Bay Mounting Lights do Not Turn On 1. Circuit breaker or fuse is OFF: 1. The LOSBAY800 sensor threads 1. The included adaptor may be used Live(Black) Turn the breaker ON. Ensure lights into a 1/2” NPS hole on the end as shown, to expand the sensor’s...
  • Page 5: Limited Warranty

    Limited Warranty Maintenance & Repair Your LOSBAY800 will be replaced or LOSBAY800 requires no maintenance repaired at our option if it proves other than keeping the lens area to be defective in workmanship or clean and free of obstructions. Clean materials within five year from the outer surface with a damp cloth only.
  • Page 6: Manuel D'installation

    LOSBAY800 DÉTECTEUR BAY Manuel d’installation LOSBAY800 Fiche technique Zone de détection: 50 à 60 pi de diamètre à 40 pi de hauteur Minuterie: 30 secondes à 30 minutes Réglage de la photocellule: 3,7 fc à185 fc (40 à 2 000 Lux) Température de...
  • Page 7: Vue Supérieure

    Quelle zone le LOSBAY800 DÉTECTEURS D’OCCUPATION. (« moon/lune »), il déclenchera couvre-t-il? • LE LOSBAY800 NE PEUT PAS ÊTRE l’éclairage uniquement à partir du crépuscule et pendant la nuit. Les lentilles de type Bay (baie) et UTILISÉ AVEC DES GRADATEURS..
  • Page 8: Choisir Un Emplacement

    Choisir un emplacement Installation de la lentille Placez le LOSBAY800 de sorte qu’il Lorsque des bouches de chauffage, 1. Deux lentilles sont fournies avec le n’y ait aucun obstacle entre lui et la ventilation ou climatisation détecteur, une lentille Bay sur 360°...
  • Page 9: Installation

    Dépannage Installation du BAYLED Schéma de raccordement L’éclairage ne s’allume pas Installation du R-Bay 1. Le détecteur du LOSBAY800 se 1. Disjoncteur déclenché ou fusible 1. L’adaptateur fourni peut être utilisé Sous tension (Noir) Live(Black) visse dans un trou 1/2 po NPS à...
  • Page 10: Garantie Limitée

    à l’adresse inscrite pièce pouvant être réparée par à l’endos. Le LOSBAY800 doit être l’utilisateur. En ouvrant le détecteur, emballé avec soin. Prière d’inclure le vous annulez la garantie. Pour obtenir coupon de caisse et une description une réparation, suivez les directives...
