websense X10G Quick Start Manual

READ FIRST!
Before you begin
Plan your deployment before setting up the X10G.
You can access documentation at:
http://www.websense.com/content/x10g_support.aspx
1 Verify Contents
Cat 5 Cables (2) Power Cables (4)
Null Modem Cable Switch Serial Cable
Sliding Ready Rail Kit
Blades are in separate cartons
Contact Websense Technical Support if any items are missing.
2 Rack and Install
See the Rack Installation Instructions in the Sliding
Ready Rail Kit.
Note: 4 persons required for racking chassis.
After the chassis has been racked, slide blades into the
slots of the chassis starting in slot 1 (top left slot).
Note: Blades slide smoothly when hanging from the top rail.
Do not force.

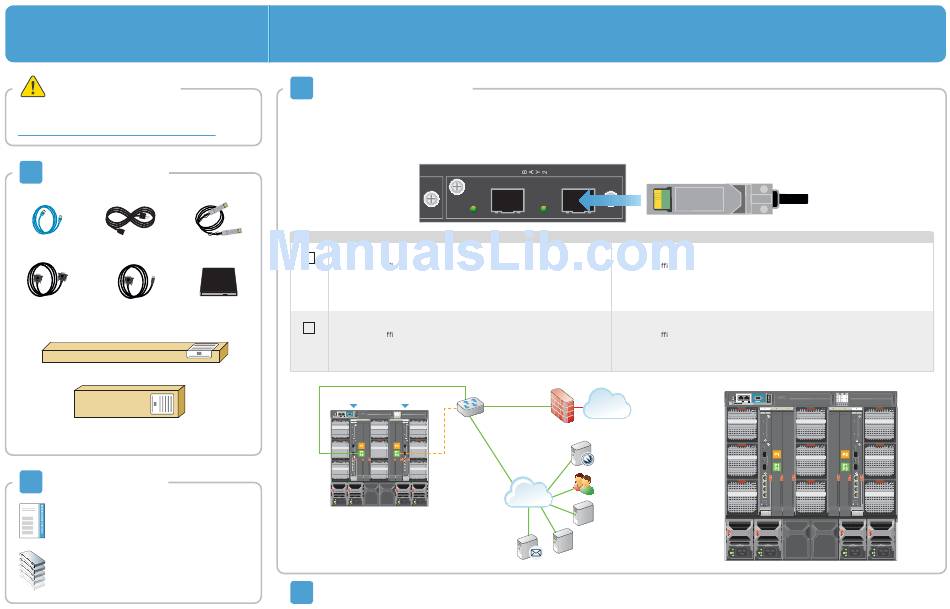

Websense® X10G™ Quick Start Poster
This poster describes setup steps for the X10G chassis and blade system.
3 Connect to Network
With VLAN
To support VLAN configuration, connect to the lower 10G port on switch A1. Use the lower 10G port on switch A2 for high availability.
Without VLAN
The only port required for deployment is the lower or upper 10G port on switch A1. The lower or upper 10G port on switch A2 is optional and is dependent upon your network
topology. If you have an optical transceiver kit, connect appropriate fiber optic cables. Otherwise, connect the SFP+ cable provided for P1 on switch A1.
Switch With VLAN
SFP+ Cables (2)
P1 & P2 trunked together on lower 10G port
A1
• All tra c
Upper 10G port reserved for future use
DVD Drive
Lower 10G port for high availability of P1 & P2 (trunked together)
A2
• All tra c
Upper 10G port reserved for future use
A1
Gb STK
A1 B1 C1
B
A
1 Y
B A
Y
2
Link
ACT
17
18
19
20
CONSOLE
P1 and P2 are trunked together with VLAN enabled.
X10G Network Diagram
See back for steps to complete your setup
4
10GE SFP+MODULE
Link/Act Link/Act
A2
CMC1 KVM CMC2
1 2 3
4 5 6
7 8 9
1 2 3 4 5 6
C2 B2 A2
Firewall
B
A
1 Y
A B
Y
2
Link
ACT
17
18
19
20
CONSOLE
Internal
Network(s)
Mail Server
SFP+ Cable
Without VLAN
P1 on lower or upper 10G port
• Tra c of proxy / email data, block page, database download, TRITON
component communication
The remaining 10G port on the switch can be configured for high availability of P1
(referring to switch KBA 7443)
P2 (if enabled) on lower or upper 10G port
• Tra c of proxy / email egress data
The remaining port on the switch can be configured for high availability of P2
(referring to switch KBA 7443)
Gb STK
Internet
TRITON Manager
Policy Broker
Policy Server
End Users
Log Database
Microsoft® SQL Server
Log Server
CMC1 KVM CMC2
1 2 3
4 5 6
7 8 9
1 2 3 4 5 6
A1 B1 C1 C2 B2 A2
B B
A A
Y Y
1 1
B B
A A
Y Y
2 2
Link Link
ACT ACT
17 17
18 18
19 19
20 20
CONSOLE CONSOLE
QSGM1K-100-RevH
