Pyle PPHP849KT User Manual

R
PPHP849KT

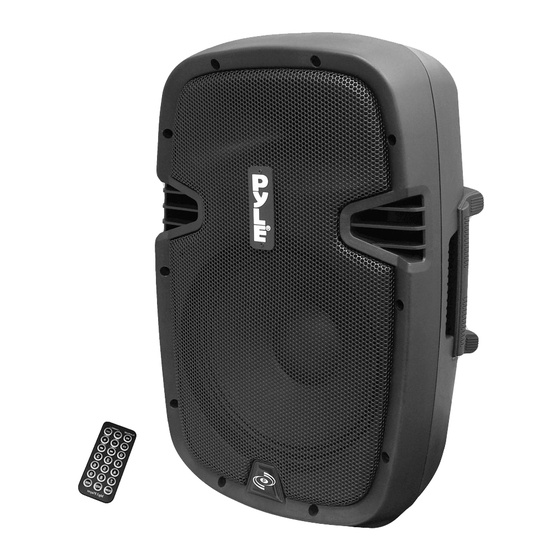

Portable Bluetooth Loudspeaker PA Speaker System,
FM Stereo Radio, Built-in Rechargeable Battery, USB/SD Readers,
Includes Microphone,Speaker stands, 700 Watts, 8'' Subwoofer
User's Manual
What's in the Box:
(1) Active PA Speaker
(1) Passive PA Speaker
(2) Speaker Stands
Wired Microphone
Remote Control
Power Cable
System Features:
Dual High-Powered Loudspeaker PA Systems
Includes (1) Active Speaker, (1) Passive Speaker & (2) Speaker Stands
Rugged, Durable & Reliable Sound
Bluetooth Wireless Music Streaming Ability
Speaker System: 8.0'' Woofer, 1.0'' Tweeter
Compression Driver with Titanium Diaphragm
2-Way Full Range Audio Projection
Built-in Digital Audio Amplifier
XLR Microphone Input
1/4'' SpeakOn (8 Ohm) Input
1/4'' SpeakOn (8 Ohm) Speaker Output
Aux (3.5mm) Input Jack
Connect & Stream Audio from External Devices
USB Flash Drive & SD Memory Card Readers
Digital LCD Display
Rear Panel Rotary Dial & Button Control Center
Master Volume, Mic Volume, Treble, Bass Adjustable
Integrated Carry Handles
35mm Speaker Stand Mount Compatible
Heavy Duty Engineered ABS Housing
Bluetooth Wireless Streaming:
Instantly Stream Music from Your Bluetooth Devices
Works with All Your Favorite Bluetooth Devices
(iPhone, Android, Smartphone, iPad, Tablet, PC, etc.)
Bluetooth Version: 4.0
Bluetooth Wireless Range: 100'+ Feet
Bluetooth Network Name: 'Pyle'
Speaker Stands:
Effectively Elevates Speakers for Optimum Sound Performance
Universal Speaker Compatibility (35mm Insert)
Easy Setup and Quick Adjustment Control
Reinforced Steel Support Construction
Speaker Support Arm Extension
Rugged and Reliable
Safety Lock-in Pin
Foldable for Quick Storage and Transport
Rubber Capped Tripod Feet Base
Perfect for On-Stage or Studio Use
For Professional or Beginner Applications
Speaker Height Adjustable: 59.1'' to 82.7''
MAX. Load Capacity: 100 lbs. (50 kgs.) -Each
Technical Specs:
MAX Power Output: 700 Watt
Amplifier: Class D
Impedance: 8 Ohm
T.H.D.: <1%
Magnet: 20 oz.
Sensitivity: 92dB (+/-2dB)
Mic Input Level: <15mV
Line Input/Output Level: >250mV
Frequency Response: 65-18kHz
Digital Audio File Compatibility: MP3, WMA
Maximum SD/USB Flash Memory Support: 32GB
1.LCD screen
Power: 110/220V
2.Mp3 control
Single Speaker Dimensions (L x W x H): 23'' x 21'' x 38''
Single Speaker Weight: 6 lbs
PPHP849KT
MP3 CONTROL DIGITAL DISPLAY
3
1
4
USB
2
IR
5
MIC VOL MP3 VOL BASS TREBLE
6 9
7 MIN MAX MIN MAX -12 +12 -12 +12
8
13
AUX
MIN MAX
MIC LINE IN MASTER VOL
14
10 11 12
8Ω
SPEAKER OUT
POWER SWITCH
16
15 1. MODE:switch between USB/SD/BT/FM/LINE IN
2. FOL- :Folder backward
AC:100-240V 50/60Hz 3. FOL+:Folder forward
4.
5.
when FM:swich to next channel
6.
3.USB input 7. VOL+: Increase volume
4.SD card input
8. VOL-: Decresse volume
MODE:USB/SD/BT/FM convertor
5.Remote control
:Play / Pause 9. EQ: NORMAL,BASS,POP,ROCK,CLASS,JAZZ.
6.MIC level control
SCAN:Long press to auto search under FM radio
7.MP3 level control
10. 0-9:choosing music by numbers
FOL:Long press 5 seconds to enter the folder
8.Basscontrol
option function mode (press the previous 11. --/---: choosing music by numbers
9.Treble control
/next songs button to choose the folder)
10.XLR microphone line input
:Repeat one / Repeat all / Random
11.Line input
:PRE/NEXT under FM mode
12.AUX input
Long hold to search lower/
13.Master volume
higher station manually
14.Speaker out 8Ohm
:Short press to tune to saved station
15.Main power switch
:Previous Song
16.Fused IEC mains inlet
Long press for fast rewind
:Next Song
Long press for fast forward
3
2 1 3
5
4 6
9
8
7
11
10
:when USB/SD:Previous Song , Long press for fast rewind
when FM:swich to backward
:when USB/SD:next Song , Long press for fast forward
:Play / Pause
When FM :Auto search
