CAR MECHANIC FLIPPER
Operation Manual (v1.1)
Software version: 1.51
MAGIC PLAY SP Z O.O.
CHOCIMSKA 6, 62800 KALISZ, POLAND
Phone/Fax: +48 62 753 21 88. e-mail:
service@magicplay.pl
website: www.magicplay.eu
Serial number:______________________________________________________
Distributor:_________________________________________________________
Date:______________________________________________________________
Advertisement
Table of Contents
Summary of Contents for Magic Play CAR MECHANIC FLIPPER

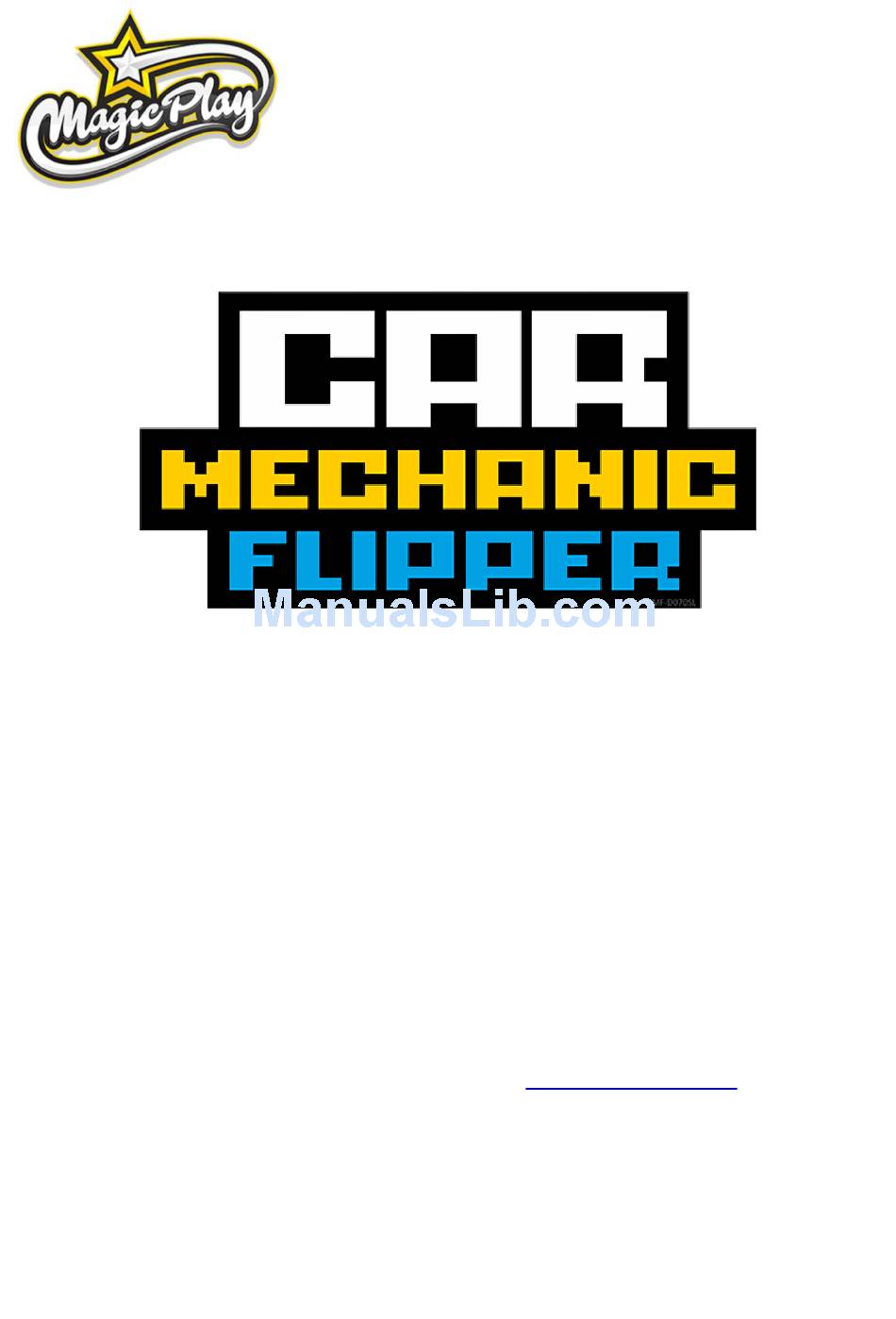

- Page 1 CAR MECHANIC FLIPPER Operation Manual (v1.1) Software version: 1.51 MAGIC PLAY SP Z O.O. CHOCIMSKA 6, 62800 KALISZ, POLAND Phone/Fax: +48 62 753 21 88. e-mail: service@magicplay.pl website: www.magicplay.eu Serial number:______________________________________________________ Distributor:_________________________________________________________ Date:______________________________________________________________...
-
Page 2: Table Of Contents
8. TROUBLESHOOTING 9. TERMS OF WARRANTY Thank You for purchasing CAR MECHANIC FLIPPER . We hope you enjoy the product. The manual contains valuable information about how to operate and maintain your game machine properly and safetly. It is intended for the owner and/ or personnel in charge of product operation. Carefully read and understand the instructions. -
Page 3: Package Contents
CAR MECHANIC FLIPPER - USER’S MANUAL READ BEFORE USE INSPECT IMMEDIATELY AFTER TRANSPORTING THE PRODUCT After receiving the shipment, inspect the product thoroughly to ensure that it has been shipped with care. Before turning the power on, please check the following: •... - Page 4 CAR MECHANIC FLIPPER - USER’S MANUAL Use this product only as described in this manual. Other uses not recomended may cause fire, electric shock or personal injury. Unplug the game from the outlet when not in use, when moving from one location to another, and before cleaning/servicing.
-
Page 5: Specifications
CAR MECHANIC FLIPPER - USER’S MANUAL THIS PRODUCT IS AN INDOOR MACHINE ONLY! DO NOT INSTALL OUTDOOR! Avoid installing in the following places to prevent fire, electric shock, injury and/ or machine malfunctioning: • Places subject to rain/ moisture, or places subject to high humidy. -
Page 6: Marquee Assembly
CAR MECHANIC FLIPPER - USER’S MANUAL • Do the power supply voltage and frequency requirements meet with those of the location (110V/220V)? Are all wires linked correctly and securely connected to each other? If coupled in an incorrect manner, the connection will not be made accurately and it could cause not only irreparable damage to the machine, but also is a potential fire hazard. -
Page 7: Level Adjustment
CAR MECHANIC FLIPPER - USER’S MANUAL 3.2 DEVICE AND IMPORTANT ELEMENTS 1. marquee 10. marquee base 2. 50” display 11. upper back door – acces to display and marquee 3. speakers 12. lower back door – acces to CPU board, I/O board and 4. -
Page 8: Play Zone
CAR MECHANIC FLIPPER - USER’S MANUAL NOTICE Make sure the machine is level with the ground and all the adjustable legs stick to floor closely. 3.4 PLAY ZONE This machine requires space for playing and for maintenance as shown below. -
Page 9: Activation, Update And Gameplay
CAR MECHANIC FLIPPER - USER’S MANUAL Connect the grounding conductor to the earth terminal Ensure that nothing rests on the power cord and that it (GND): is not located where it can be stepped on or tripped over. To disconnect the game, grip the plug and pul lit from To prevent electric shock, do not touch the power plug the wall outlet. -
Page 10: Software Update
CAR MECHANIC FLIPPER - USER’S MANUAL 4.1. SOFTWARE UPDATE To carry out software update USB memory stick is required. 1. Download .zip auto-update file provided by manufacturer/distributor and save it to main direcory of memory stick. 2. Turn OFF your machine 3. -
Page 11: System Recovery
CAR MECHANIC FLIPPER - USER’S MANUAL 4.2 SYSTEM RECOVERY We are adding special USB auto-restore flash drive to every Car Mechanic Flipper machine. ATTENTION! This flash drive WILL AUTOMATICALLY ERASE WHOLE COMPUTER HARD DISK, ALL MACHINE DATA WILL BE LOST! -
Page 12: Gameplay
CAR MECHANIC FLIPPER - USER’S MANUAL 4.3 GAMEPLAY Single player game To start the game insert coin into coin acceptor or banknote into bill validator. Wait for the cars to park in the parking lot. Select the car using the LEFT and RIGHT buttons, confirm with the START button. -
Page 13: Game Options
CAR MECHANIC FLIPPER - USER’S MANUAL 5. GAME OPTIONS MENU ACCES AND NAVIGATION To acces menu press SERVICE/ENTER button, located in service door, at the lower front of the machine, next to the coin and ticket counters. Use UP/PREVIOUS and DOWN/NEXT buttons to navigate in the menu. Use SERVICE/ENTER to ENTER or CHANGE the option value or selection. - Page 14 CAR MECHANIC FLIPPER - USER’S MANUAL SERVICE MENU MAIN MENU v1.X.X Indicates software version DEVICE MUSIC VOLUME 0-100 Set music volume SETTINGS SFX VOLUME 0-100 Set effects volume DEMO VOLUME 0-100 Set demo volume DEMO FREQUENCY 10-200s Set demo frequency...
-
Page 15: Recommended Settings
CAR MECHANIC FLIPPER - USER’S MANUAL NON- COINS Total coins RESETABLE GAMES Total games TICKETS GIVEN Total tickets given TICKETS WON Total tickets won STATS AVERAGE SCORE Average score per game AVERAGE PLAY TIME Average play time per game AVERAGE TICKET... -
Page 16: Electrical Diagram
CAR MECHANIC FLIPPER - USER’S MANUAL 6. ELECTRICAL DIAGRAM www.magicplay.eu... -
Page 17: Maintenance, Inspection
CAR MECHANIC FLIPPER - USER’S MANUAL 7. MAINTENANCE, INSPECTION 7.1 SAFETY CHECK Check the points listed before operating the machine. These checks are nessessary for safe machine operation: 1. Try to run the game before operation each day. 2. Conduct monthly routine checks of game components to ensure good working condition 3. - Page 18 CAR MECHANIC FLIPPER - USER’S MANUAL Problems with coin acceptors/bill acceptors 1. Possible problems with acceptors firmware 2. Check wirings for acceptors 3. No USB connection betwen I/O board and computer 4. Try to restart your machine 5. Check debug output (Enter debugging mode Ctrl +D) Buttons/coins mech not working 1.
-
Page 19: Terms Of Warranty
CAR MECHANIC FLIPPER - USER’S MANUAL 9. TERMS OF WARRANTY Magic Play Sp. z o.o. warrants that the CAR MECHANIC FLIPPER game will be free from defects in electronics for a period of 12 months from the date of delivery.
