Elite Acoustics Engineering

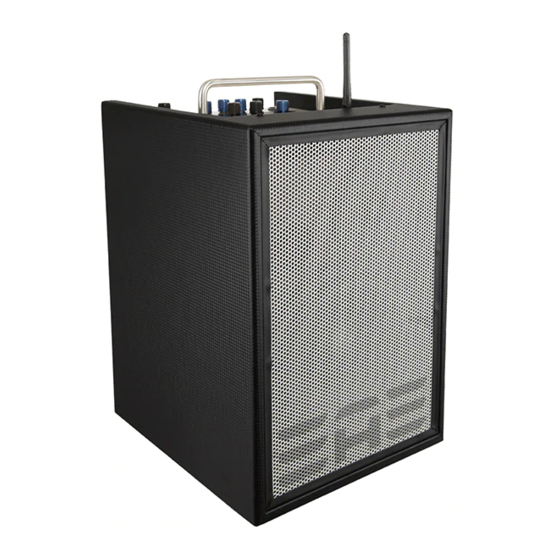

A4-8 Live-Performance Studio Monitor
with 4 Channels, Mixer, Effects,
WHAT IS IN THE BOX
Your A4-8 package contains the following:
(1) Speaker
(1) 12V AC Power Supply Adapter
(1) 12V DC Car Battery Supply Adapter
The Bluetooth word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks
by Elite Acoustics Engineering, Inc is under license
NOTE: Due to continuous development and improvements of our products, features and specifications are subject to
change without notice. All weights and measures are approximate.
and Bluetooth
Quick Start Guide
®
(1) Quick Start Guide
(1) Registration Card (USA ONLY)
(1) Speaker Handle Grip
Advertisement
Table of Contents
Related Manuals for Elite Acoustics Engineering A4-8
Summary of Contents for Elite Acoustics Engineering A4-8
- Page 1 The Bluetooth word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Elite Acoustics Engineering, Inc is under license NOTE: Due to continuous development and improvements of our products, features and specifications are subject to...
-
Page 2: Quick Start

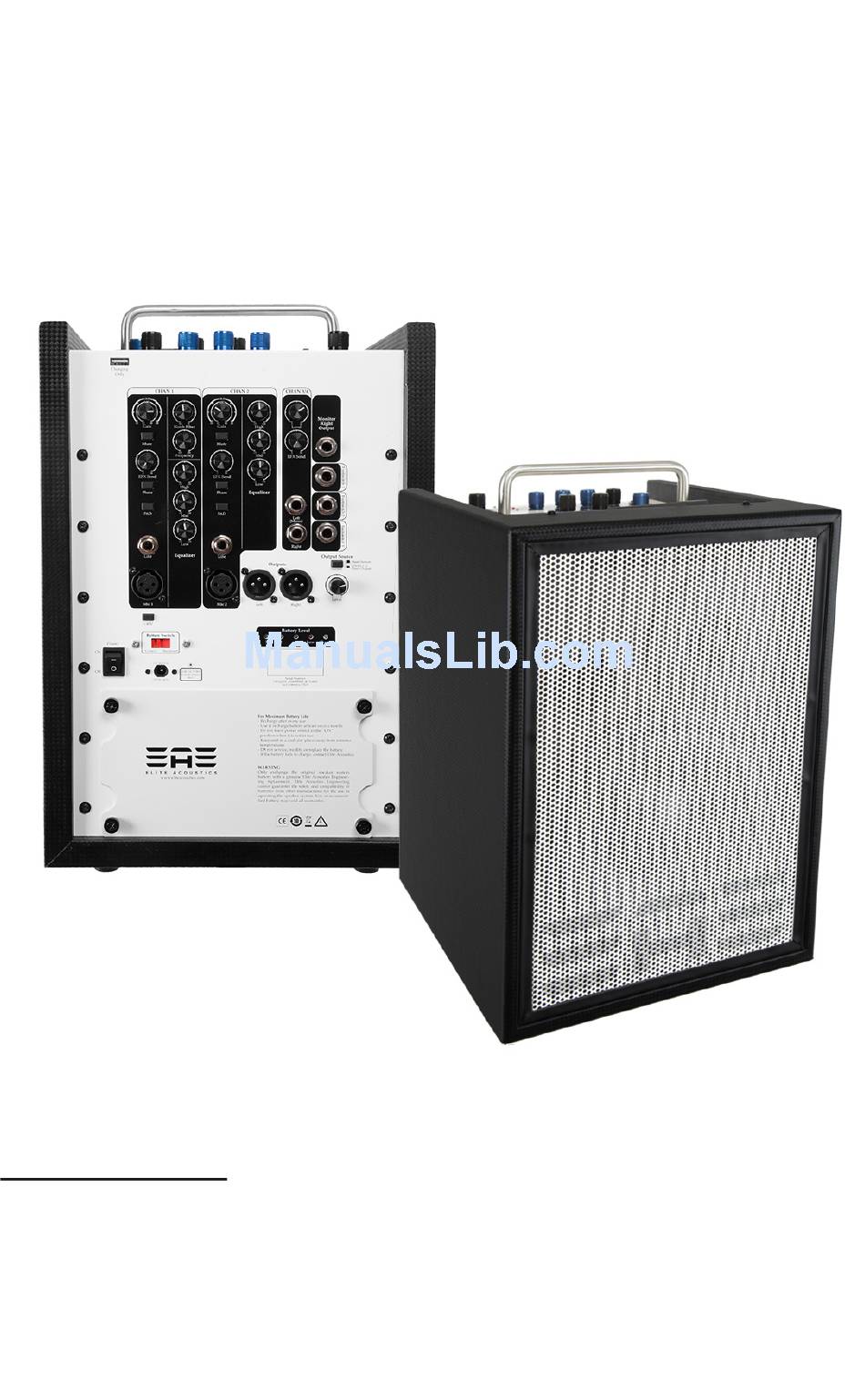

QUICK START Battery Switch [37] is set to Connect. (Battery Switch is set to Disconnect position to preserve battery life for transit or storage.) Make sure the SPEAKER VOLUME [3] control is down before you turn the POWER [38] Connect the input of your microphone to the MIC IN [18]. Or you can connect a ¼” line input from an instrument [17]. - Page 3 Top Panel View Power LED: BLUE [1]: Indicate unit is ON +48V LED [2]: Indicates Phantom Power is on -- for Both Chan 1 and Chan 2. Monitor Output Controls Speaker Volume [3]: Control speakers’ volume level Mono [4]: Changes speaker output to Mono sound Monitor Equalizer [6]: Adjust Speaker High, Mid, and Low Frequency response Peak LED [5]: RED indicate Signal Clip Signal LED [5]: GREEN indicate Signal...
-
Page 4: Bluetooth Function
Effects Controls Effects Mix [8]: Amount of effect being applied to Input, Dry and Wet mix. There is no EFX if knob is completely on DRY position. Rate/Decay [9]: Controls the duration of the effect Effects Knob Selector [10]: Select effect of choice Metering Chan 1 Signal, Clip and Mute LED Chan 2 Signal, Clip and Mute LED... - Page 5 Tips. USB Charge only is for charging your phone or MP3 players on the go. Use only approved EAE power adaptors. DO NOT leave Power Switch on the “ON” position for a long period of time, it will drain the battery if battery is connected.
- Page 6 Channel 2 Gain [22]: Gain level control Mute [23]: Mute channel EFX Send Level [24]: How much output effect is being sent Phase [25]: Change in phase of waveform PAD [26]: Attenuate if needed Line In [27]: 1/4” TRS inputs Balanced Mic In [28]: XLR for Microphone Input Balanced Equalizer [29]: Controls Low, Mids, and High Monitor Output: Connect with extra...
- Page 7 Right Channel. If stereo imaging is not desired, simply engage the Mono button on the A4-8’s top panel. Note that the Monitor Right Output (33) will not drive a passive speaker; it is a Line-level output that can drive amplifiers or active monitor systems.
- Page 8 A4-8 Live-Performance Studio Monitor with 4 Channels, Mixer, Effects, and Bluetooth ®...
-
Page 9: For Maximum Battery Life
Keep unit in a cool, dry place away from extreme temperatures • Do not service, modify, or replace the battery Charge • If the battery fails to charge, contact Elite Acoustics Engineering CAR ADAPTOR • Unit can operate normally when plug into the Car Adaptor. •... - Page 10 HOW TO DEAL WITH ACOUSTIC FEEDBACK Simply put, the annoying shrilling howl of growing and untamed feedback is the result of “in- phase” frequencies getting together and being reinforced by the sound system and environ- ment. Phase Switch – since the purpose of the Phase Switch is to reverse the polarity, the first line of defense is to change the phase, which can sometimes be a cure all by itself.
- Page 11 DIGITAL EFX 16 DIGITAL EFX PROGRAMS • • There are 16 total Digital EFX programs • R1 to R10 - REVERB • E1 and E2 - ECHO • ER1 and ER2 - Echo and Reverb • CHO - Chorus • FLange - Flanger •...
-
Page 12: System Specifications
SYSTEM SPECIFICATIONS Speakers: Woofer = 8” Tweeter = 1” Silk-Dome Optimized front ports for extended low-frequency response Frequency response 70Hz - 20k Hz 103 dB SPL Cabinet: MDF or Plywood. Amplifier: Ultra High-Efficiency Class D 40W Bi-AMP EQ Controls: +/- 12dB @ 50Hz (shelving) +/- 12dB @ 200Hz –... -
Page 13: This Device Complies With Part 15 Of The Fcc Rules. Operation Is Subject To The Following Two Conditions
Elite Acoustics Engineering Inc. warrants this product to be free of defects in material and workmanship (excluding battery) for a period of 1 year from the date of original retail purchase. Elite Acoustics Engineering Inc. warrants the Speaker’s Battery for 90 days from the date of original retail purchase. This warranty is enforceable only by the original retail purchaser.
