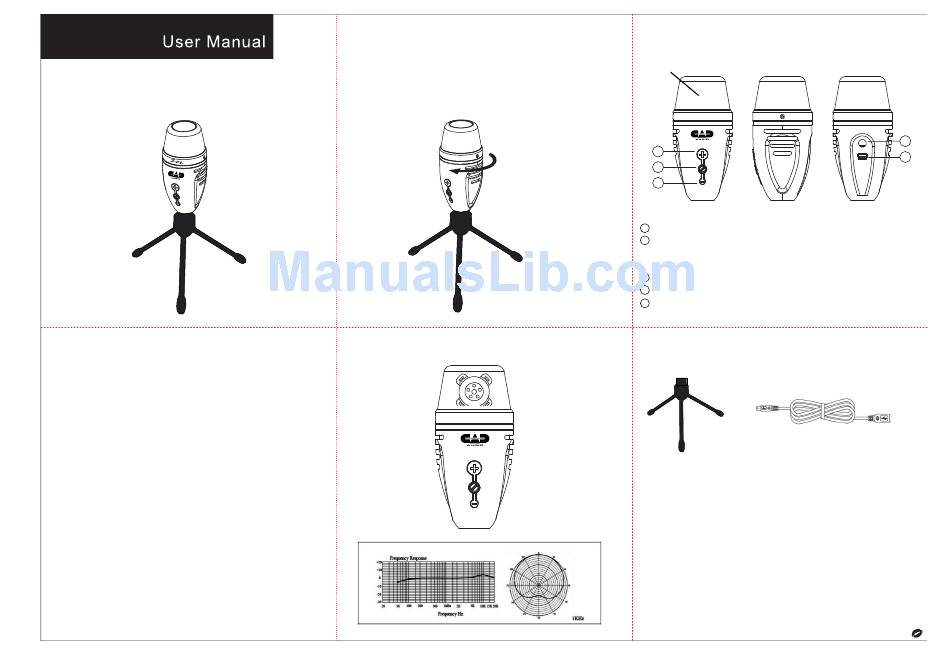

CAD ZOE User Manual

CAD Zoe
Thank you for purchasing the CAD Audio Zoe USB
microphone. Please read the manual carefully
before using and keep it for further reference.
Features:
• Aggressive audio reproduction with finesse and flair
• TrakMix™ chip delivers precision headphone monitoring
• Supplied with Stand and USB cable
Specs :
Operating Principle : Condenser USB with
TrakMix™ Headphone Output
Pattern : Unidirectional
Microphone Frequency Response : 50 – 16kHz
Sampling and bit rate : 48kHz 16 bit
Headphone Frequency Response : 20 – 20kHz
Headphone Output : 300mW
Compatibility : Windows and Mac
Installation:
1. Connect Zoe to your device with the supplied USB cable,
connection is completed when the Blue LED is lit.
2. If Zoe is not working after connecting ( LED is
constantly on ), click Control Panel > Sounds and Audio
Devices Properties > Audio. Choose C-Media USB Sound
Device for Default device under Sound recording.
Choose C-Media USB sound device under playback if you want
to use the headphone jack instead of your speakers.
Click on apply and OK.
Assembly:
Simply screw Zoe onto the desk stand as shown,
Fold out the legs of the tripod stand and plug the
USB cable in.
Zoe uses a standard 5/8-27 thread so it can be used
on many other stands as well.
Polar Pattern & Frequency Response
Zoe
Operation:
Note, Sound is picked up from the front
of the mic only
FRONT
Zoe
1
2
3
1 Headphone volume UP
2
Power on/Microphone mute button
a.LED illuminates Blue to indicate power "on"
b.LED illuminates Red to indicate microphone "mute"
3 Headphone volume DOWN
4
Headphone output jack
5
USB PORT
Accessories:
USB cable:
Ø3.8x1.2M USB 2.0 USB A Type
Tripod Stand
to Mini B type plug
CAD Audio
6573 Cochran Rd
Solon, Ohio 44139
CADAudio.com
For Returns or Service visit CadAudio.com and click the Support tab.
4
5
Part # 62266-04-00 12-05-14 C.W.H.
