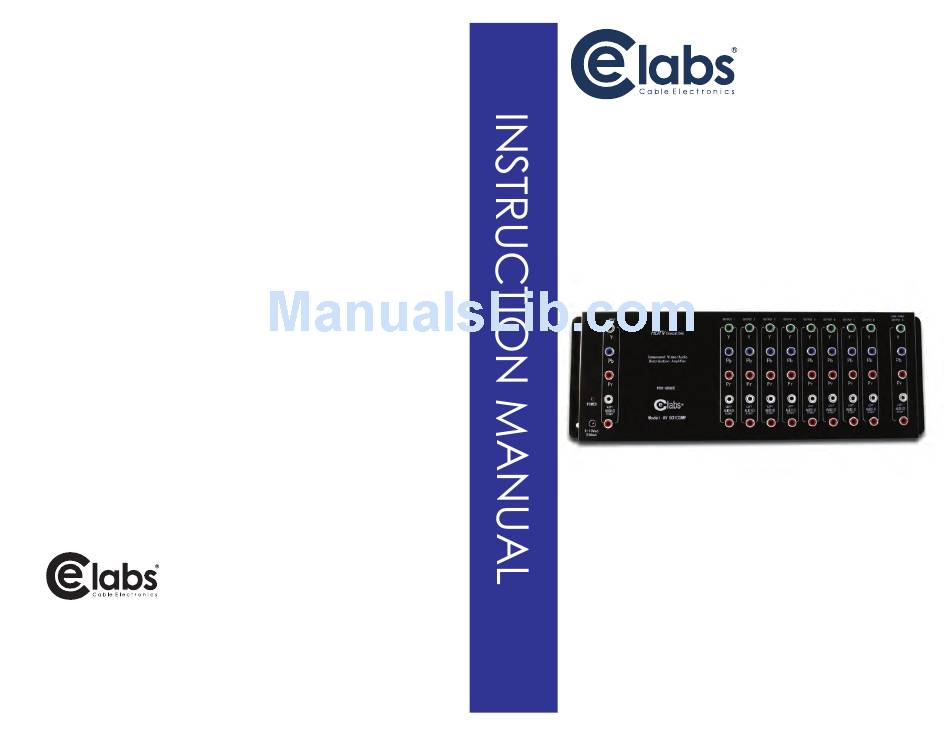

CE Labs AV901COMP Instruction Manual

CE labs can support many areas of your audio and video
distribution needs.
We manufacture:
• Digital Signage software and Media Players
• HD Matrix Switchers
• RF amplifiers
• HDMI and Component HD distribution amplifiers
• CAT 5 Signal Extenders
• VGA Extenders and Splitters
• and cables of all types.
See our full product line at www.celabs.net

WARRANTY

Cable Electronics, Inc. warrants this product to be free from defects in
material and workmanship, under normal use and service, for a period of
one year from the purchase by the original purchaser. If this product is
defective or malfunctions, Cable Electronics will replace or repair this unit
(at their option) within a reasonable time. No expressed or implied warranty
is made for any defects caused by immersion or exposure to liquids, abuse,
neglect, improper operation of unit, excess wear and tear and defects
resulting from unauthorized disassembly and or modification.
3209 Wood Drive
Garland, TX 75041
Phone: (469) 429-9200
Toll free: (800) 767-6189
Fax: (469) 429-9205
www.celabs.net
Doc: AV901Comp_manual.pdf
930_5006_01_REV.B_

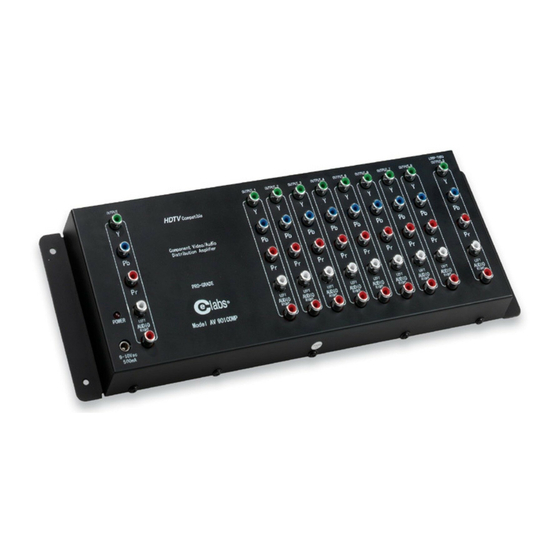

AV901COMP
Component Video/Audio
Distribution Amplifier
HDTV
Compatible

KEY INFORMATION:

The AV901Comp allows any audio/video source, with
Y, Cb, Cr, or Y, Pb, Pr component outputs, to distribute
Audio and video to nine different locations without
signal loss. This unit can be looped, cascaded, or put in
tandem, as shown below, without loss of audio/video
signals to multiple TVs.
The distribution of the Audio/VIdeo from a single ource to
multiple locations without any signal loss
